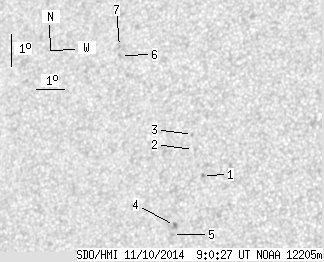

SDO HMI 2014-11-10 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.42 | 0.00 | 6.12 | 18.62 | 343.07 | -29.14 | 59.82 | 0.5366 | -299.3 | -275.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.75 | 18.02 | 344.59 | -27.62 | 59.57 | 0.5133 | -750.0 | -722.9 | |
| 0.00 | 0.52 | 0.00 | 0.30 | 18.81 | 344.14 | -28.07 | 58.55 | 0.5243 | -564.0 | -597.0 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 19.27 | 344.02 | -28.19 | 57.86 | 0.5288 | -733.0 | -612.8 | |
| 0.00 | 2.93 | 0.00 | 1.69 | 16.47 | 343.86 | -28.35 | 62.90 | 0.5136 | -936.0 | -730.0 | |
| 0.00 | 1.55 | 0.00 | 0.89 | 16.19 | 343.83 | -28.38 | 63.42 | 0.5124 | -757.0 | -642.2 | |
| 0.00 | 1.98 | 0.00 | 1.21 | 21.65 | 340.88 | -31.33 | 56.39 | 0.5826 | 821.0 | 645.3 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 21.93 | 340.77 | -31.44 | 56.03 | 0.5856 | 824.0 | 734.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
