SDO HMI 2014-11-10 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.61 | 0.00 | 11.49 | -23.62 | 8.91 | -3.30 | 173.52 | 0.4595 | 657.6 | 588.6 | |
|
previous
or next observation for the same group /

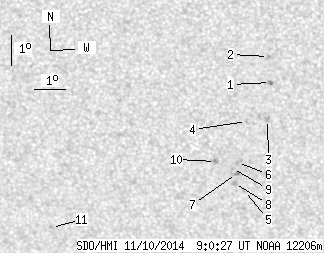

back to the solar disc SDO HMI 2014-11-10 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 1.13 | -21.37 | 10.20 | -2.01 | 175.54 | 0.4219 | 915.0 | 745.3 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -20.53 | 10.15 | -2.06 | 175.24 | 0.4085 | 830.0 | 643.8 | |
| 0.00 | 2.50 | 0.00 | 1.38 | -22.59 | 10.08 | -2.13 | 175.53 | 0.4413 | 592.0 | 569.4 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -22.66 | 9.40 | -2.81 | 174.13 | 0.4433 | 666.0 | 546.9 | |
| 0.00 | 1.47 | 0.00 | 0.83 | -24.96 | 9.29 | -2.92 | 174.44 | 0.4791 | 698.0 | 527.9 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -24.02 | 9.08 | -3.13 | 173.82 | 0.4650 | 918.0 | 747.9 | |
| 0.00 | 2.24 | 0.00 | 1.26 | -24.39 | 9.04 | -3.17 | 173.83 | 0.4707 | 854.0 | 731.1 | |
| 0.00 | 3.45 | 0.00 | 1.94 | -24.73 | 8.96 | -3.25 | 173.77 | 0.4760 | 813.0 | 673.7 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -24.23 | 8.91 | -3.30 | 173.54 | 0.4684 | 743.0 | 687.9 | |
| 0.00 | 2.07 | 0.00 | 1.16 | -23.99 | 8.37 | -3.84 | 172.41 | 0.4658 | 842.0 | 744.0 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -26.26 | 2.82 | -9.39 | 163.50 | 0.5173 | -637.0 | -492.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
