SDO HMI 2014-11-10 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 178.31 | 827.02 | 90.20 | 418.85 | 14.70 | 13.03 | 1.91 | 348.78 | 0.2054 | -440.5 | -236.3 | |
|
previous
or next observation for the same group /

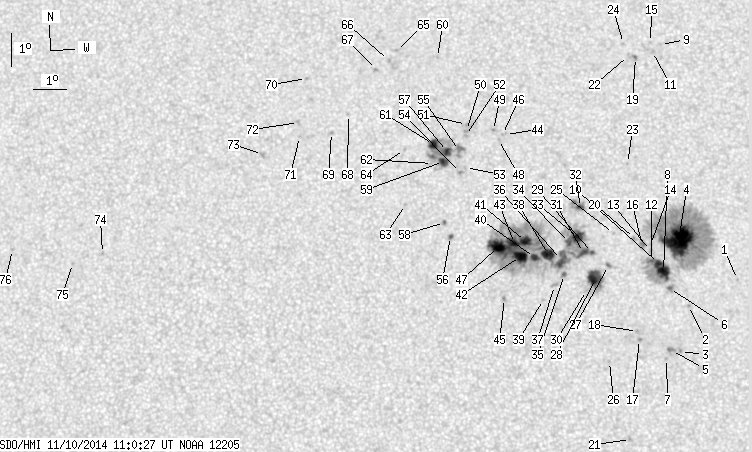

back to the solar disc SDO HMI 2014-11-10 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.52 | 13.45 | 17.64 | 6.53 | 327.75 | 0.2081 | -723.0 | -553.1 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 12.68 | 16.12 | 5.01 | 332.24 | 0.1837 | 713.0 | 498.4 | |
| 0.00 | 1.47 | 0.00 | 0.74 | 11.30 | 15.85 | 4.74 | 329.59 | 0.1607 | -785.0 | -667.2 | |
| 47.40 | 327.93 | 24.02 | 166.18 | 14.61 | 15.86 | 4.74 | 337.69 | 0.2117 | -1379.2 | -414.7 | |
| 0.00 | 3.88 | 0.00 | 1.95 | 11.33 | 15.58 | 4.46 | 331.14 | 0.1588 | -1173.0 | -940.6 | |
| 0.86 | 4.40 | 0.43 | 2.22 | 13.20 | 15.55 | 4.44 | 336.18 | 0.1873 | -1185.1 | -912.6 | |
| 0.00 | 1.21 | 0.00 | 0.60 | 11.09 | 15.43 | 4.31 | 331.25 | 0.1539 | -877.0 | -648.8 | |
| 12.41 | -4.00 | 6.27 | -4.00 | 13.71 | 15.38 | 4.26 | 338.07 | 0.1943 | -1306.5 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 20.65 | 15.46 | 4.34 | 346.59 | 0.3067 | -545.0 | -450.5 | |
| 4.65 | -4.00 | 2.35 | -4.00 | 13.95 | 15.23 | 4.11 | 339.23 | 0.1972 | -1190.0 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 20.44 | 15.20 | 4.08 | 347.20 | 0.3022 | -866.0 | -596.0 | |
| 1.12 | -4.00 | 0.57 | -4.00 | 14.04 | 15.02 | 3.90 | 340.38 | 0.1974 | -1103.4 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 14.35 | 14.99 | 3.88 | 341.01 | 0.2022 | -1043.0 | -910.6 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 14.53 | 15.00 | 3.88 | 341.29 | 0.2051 | -903.0 | -796.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 20.72 | 15.14 | 4.02 | 347.58 | 0.3066 | -697.0 | -505.3 | |
| 0.00 | 4.48 | 0.00 | 2.27 | 14.50 | 14.75 | 3.63 | 342.36 | 0.2033 | -1029.0 | -868.4 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 11.67 | 14.61 | 3.50 | 337.50 | 0.1568 | -1026.0 | -873.8 | |
| 0.00 | 1.55 | 0.00 | 0.78 | 11.91 | 14.56 | 3.44 | 338.41 | 0.1603 | -899.0 | -836.2 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 20.25 | 14.65 | 3.54 | 348.73 | 0.2973 | -990.0 | -891.7 | |
| 0.00 | 2.15 | 0.00 | 1.09 | 14.71 | 14.51 | 3.39 | 343.77 | 0.2056 | -866.0 | -711.8 | |
| 0.00 | 1.98 | 0.00 | 0.99 | 8.68 | 14.31 | 3.19 | 329.23 | 0.1080 | -904.0 | -710.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 20.32 | 14.43 | 3.32 | 349.46 | 0.2977 | -796.0 | -773.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 16.99 | 14.33 | 3.22 | 347.16 | 0.2425 | -829.0 | -634.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 20.69 | 14.28 | 3.16 | 350.15 | 0.3034 | -788.0 | -642.5 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 14.86 | 13.87 | 2.75 | 346.90 | 0.2054 | -727.0 | -524.1 | |
| 0.00 | 0.95 | 0.00 | 0.47 | 11.01 | 13.70 | 2.58 | 341.60 | 0.1406 | -870.0 | -686.5 | |
| 0.52 | 2.67 | 0.26 | 1.35 | 13.90 | 13.70 | 2.58 | 346.53 | 0.1886 | 711.5 | 471.8 | |
| 15.51 | 27.49 | 7.81 | 13.84 | 13.51 | 13.30 | 2.18 | 348.12 | 0.1805 | -1153.3 | -711.0 | |
| 0.86 | 317.68 | 0.44 | 160.35 | 14.29 | 13.21 | 2.10 | 349.39 | 0.1935 | -821.9 | -106.7 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 13.15 | 13.02 | 1.90 | 349.21 | 0.1735 | -229.0 | -202.6 | |
| 4.74 | -29.00 | 2.39 | -29.00 | 14.29 | 12.94 | 1.82 | 350.76 | 0.1927 | 73.1 | 999999 | |
| 2.41 | 9.39 | 1.22 | 4.77 | 15.66 | 12.86 | 1.74 | 352.16 | 0.2156 | -979.4 | -663.8 | |
| 8.10 | -29.00 | 4.09 | -29.00 | 14.75 | 12.79 | 1.67 | 351.85 | 0.2000 | -1158.5 | 999999 | |
| 3.10 | -29.00 | 1.57 | -29.00 | 14.60 | 12.51 | 1.39 | 353.10 | 0.1968 | -595.7 | 999999 | |
| 0.78 | 2.07 | 0.39 | 1.04 | 13.63 | 12.35 | 1.23 | 353.29 | 0.1800 | -1093.7 | -906.7 | |
| 8.88 | -29.00 | 4.48 | -29.00 | 14.08 | 12.26 | 1.15 | 354.04 | 0.1876 | -1131.9 | 999999 | |
| 0.00 | 2.84 | 0.00 | 1.43 | 13.30 | 12.05 | 0.93 | 354.78 | 0.1737 | -778.0 | -630.7 | |
| 10.34 | -29.00 | 5.22 | -29.00 | 14.24 | 11.87 | 0.75 | 356.15 | 0.1896 | -1211.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 12.88 | 11.71 | 0.59 | 356.52 | 0.1660 | 793.0 | 525.9 | |
| 4.40 | -29.00 | 2.22 | -29.00 | 14.15 | 11.44 | 0.32 | 358.34 | 0.1877 | -1166.8 | 999999 | |
| 6.98 | -29.00 | 3.53 | -29.00 | 14.63 | 11.16 | 0.04 | 359.78 | 0.1959 | 1052.5 | 999999 | |
| 10.95 | -29.00 | 5.52 | -29.00 | 14.18 | 11.01 | -0.11 | 0.56 | 0.1881 | -1207.8 | 999999 | |
| 3.71 | -29.00 | 1.87 | -29.00 | 14.57 | 10.83 | -0.29 | 1.46 | 0.1950 | 1050.6 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.18 | 17.89 | 10.54 | -0.57 | 2.18 | 0.2518 | 769.0 | 601.2 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 12.91 | 10.52 | -0.60 | 3.51 | 0.1666 | 1068.0 | 769.7 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 17.89 | 10.45 | -0.67 | 2.54 | 0.2519 | 872.0 | 738.6 | |
| 11.98 | -29.00 | 6.05 | -29.00 | 14.48 | 10.33 | -0.78 | 3.93 | 0.1938 | 1052.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 17.74 | 10.33 | -0.79 | 3.04 | 0.2494 | 797.0 | 746.5 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 18.01 | 10.17 | -0.95 | 3.57 | 0.2542 | 856.0 | 728.6 | |
| 0.00 | 2.24 | 0.00 | 1.15 | 18.01 | 9.33 | -1.79 | 6.71 | 0.2555 | 1181.0 | 900.1 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 18.20 | 9.32 | -1.79 | 6.63 | 0.2586 | 834.0 | 711.1 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 17.86 | 9.30 | -1.82 | 6.90 | 0.2530 | 1067.0 | 768.2 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 16.88 | 9.30 | -1.81 | 7.39 | 0.2364 | 666.0 | 564.3 | |
| 0.00 | 1.98 | 0.00 | 1.01 | 16.73 | 9.15 | -1.97 | 8.10 | 0.2342 | 1126.0 | 897.2 | |
| 0.00 | 5.95 | 0.00 | 3.04 | 17.40 | 9.11 | -2.00 | 7.84 | 0.2456 | 1056.0 | 876.4 | |
| 0.95 | 2.33 | 0.48 | 1.18 | 14.78 | 8.86 | -2.26 | 10.91 | 0.2022 | 1054.9 | 891.1 | |
| 4.91 | 50.68 | 2.51 | 25.89 | 17.37 | 8.74 | -2.38 | 9.30 | 0.2460 | 964.1 | -181.1 | |
| 0.34 | 2.15 | 0.17 | 1.09 | 15.21 | 8.67 | -2.45 | 11.36 | 0.2100 | 917.0 | 808.1 | |
| 5.69 | -57.00 | 2.90 | -57.00 | 17.06 | 8.62 | -2.50 | 9.99 | 0.2413 | 1126.0 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 20.26 | 8.39 | -2.73 | 8.75 | 0.2952 | 761.0 | 595.6 | |
| 6.72 | -57.00 | 3.44 | -57.00 | 17.58 | 8.30 | -2.82 | 10.81 | 0.2509 | -994.6 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 17.00 | 8.28 | -2.84 | 11.37 | 0.2413 | 130.0 | 155.9 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 15.75 | 7.46 | -3.66 | 15.98 | 0.2239 | -838.0 | -622.7 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 17.43 | 7.40 | -3.72 | 14.30 | 0.2517 | -753.0 | -599.5 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 20.48 | 7.08 | -4.04 | 12.64 | 0.3027 | 968.0 | 774.3 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 20.17 | 6.84 | -4.28 | 13.64 | 0.2986 | 952.0 | 826.1 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 19.89 | 6.46 | -4.66 | 15.03 | 0.2956 | 1007.0 | 872.7 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 18.49 | 5.62 | -5.50 | 19.20 | 0.2776 | 697.0 | 503.6 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 17.94 | 5.10 | -6.01 | 21.61 | 0.2719 | 780.0 | 590.3 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 19.60 | 4.25 | -6.86 | 21.93 | 0.3028 | 798.0 | 573.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 17.81 | 4.10 | -7.01 | 24.97 | 0.2766 | 719.0 | 535.9 | |
| 0.00 | 2.41 | 0.00 | 1.25 | 18.24 | 4.06 | -7.06 | 24.45 | 0.2834 | 870.0 | 648.9 | |
| 0.00 | 3.19 | 0.00 | 1.64 | 17.25 | 2.97 | -8.15 | 29.41 | 0.2771 | 811.0 | 679.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 14.20 | 358.10 | -13.02 | 49.11 | 0.2902 | 920.0 | 673.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 13.88 | 357.17 | -13.94 | 51.82 | 0.2989 | 761.0 | 594.9 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 14.28 | 355.25 | -15.87 | 54.18 | 0.3283 | 775.0 | 636.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
