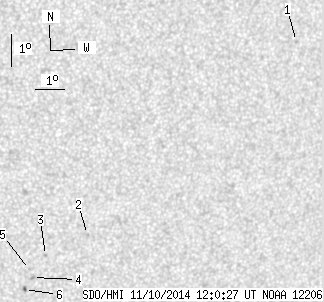

SDO HMI 2014-11-10 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 7.59 | 0.34 | 4.33 | -15.19 | 33.73 | 23.16 | 230.20 | 0.4980 | -546.7 | -437.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.66 | -9.45 | 40.42 | 29.85 | 246.42 | 0.5378 | -667.0 | -538.0 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -15.21 | 33.92 | 23.35 | 230.60 | 0.4970 | 631.0 | 569.9 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -15.84 | 32.59 | 22.02 | 227.98 | 0.4875 | -781.0 | -643.5 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -16.52 | 32.24 | 21.66 | 226.45 | 0.4903 | -811.0 | -732.4 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -16.27 | 32.11 | 21.54 | 226.68 | 0.4863 | -796.0 | -620.0 | |
| 0.60 | 1.81 | 0.34 | 1.03 | -16.89 | 32.01 | 21.44 | 225.59 | 0.4916 | -777.6 | -683.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
