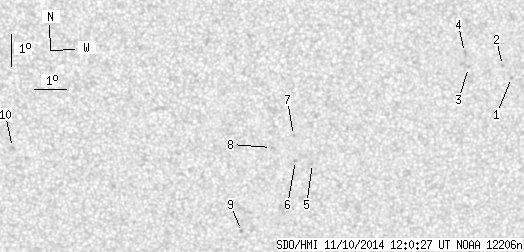

SDO HMI 2014-11-10 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.37 | 0.00 | 6.03 | -15.91 | 17.62 | 7.05 | 199.54 | 0.3615 | -164.7 | -139.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.69 | -14.37 | 23.40 | 12.83 | 215.32 | 0.3736 | 797.0 | 671.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -14.00 | 23.09 | 12.52 | 215.29 | 0.3658 | 832.0 | 703.0 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -14.04 | 22.03 | 11.46 | 212.87 | 0.3567 | 529.0 | 388.3 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -13.58 | 21.88 | 11.31 | 213.28 | 0.3491 | 865.0 | 722.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -17.00 | 17.29 | 6.72 | 197.83 | 0.3671 | -633.0 | -542.5 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -16.91 | 16.76 | 6.19 | 196.58 | 0.3630 | -833.0 | -761.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -16.11 | 16.67 | 6.10 | 197.02 | 0.3502 | -946.0 | -749.9 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -16.49 | 16.00 | 5.43 | 194.95 | 0.3531 | -715.0 | -540.1 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -19.13 | 15.13 | 4.56 | 191.10 | 0.3916 | -659.0 | -588.4 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -16.47 | 7.97 | -2.60 | 172.70 | 0.3437 | -884.0 | -603.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
