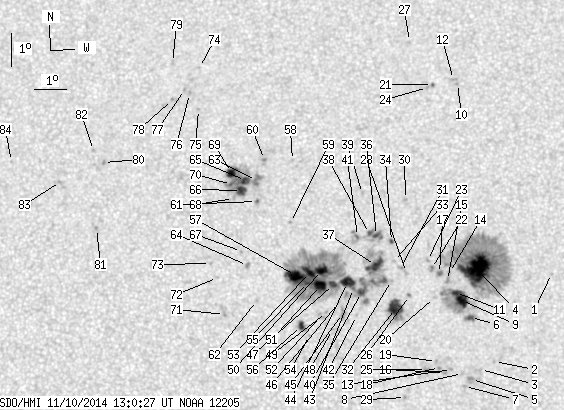

SDO HMI 2014-11-10 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 172.74 | 853.02 | 87.47 | 432.19 | 14.67 | 12.96 | 2.94 | 345.71 | 0.2079 | -467.1 | -270.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.53 | 14.49 | 18.18 | 8.16 | 324.60 | 0.2383 | -663.0 | -593.7 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 11.86 | 16.35 | 6.32 | 323.89 | 0.1838 | -932.0 | -719.6 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 11.62 | 15.92 | 5.89 | 325.01 | 0.1762 | -700.0 | -531.2 | |
| 43.94 | 313.89 | 22.31 | 159.35 | 14.66 | 15.87 | 5.85 | 333.30 | 0.2204 | -1376.7 | -432.5 | |
| 0.00 | 4.57 | 0.00 | 2.29 | 11.32 | 15.63 | 5.61 | 325.30 | 0.1692 | -973.0 | -885.3 | |
| 2.41 | 6.63 | 1.22 | 3.35 | 13.18 | 15.65 | 5.62 | 330.78 | 0.1964 | -1076.1 | -782.4 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 11.11 | 15.42 | 5.40 | 325.62 | 0.1641 | -1020.0 | -845.7 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 11.50 | 15.36 | 5.34 | 327.20 | 0.1692 | -1044.0 | -776.9 | |
| 12.58 | -4.00 | 6.36 | -4.00 | 13.70 | 15.38 | 5.36 | 333.16 | 0.2020 | -1308.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 20.33 | 15.46 | 5.44 | 343.07 | 0.3064 | -884.0 | -763.3 | |
| 3.88 | -4.00 | 1.96 | -4.00 | 13.94 | 15.20 | 5.18 | 334.47 | 0.2043 | -1172.6 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.21 | 20.45 | 15.34 | 5.31 | 343.55 | 0.3078 | -929.0 | -726.7 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 11.63 | 15.03 | 5.01 | 329.23 | 0.1680 | -928.0 | -752.1 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 14.55 | 15.03 | 5.01 | 336.44 | 0.2125 | -976.0 | -755.6 | |
| 0.00 | 2.33 | 0.00 | 1.18 | 14.30 | 14.97 | 4.94 | 336.24 | 0.2083 | -1049.0 | -858.4 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 11.54 | 14.82 | 4.80 | 330.04 | 0.1648 | -931.0 | -833.6 | |
| 0.86 | 3.02 | 0.44 | 1.53 | 14.52 | 14.73 | 4.70 | 337.68 | 0.2100 | -1049.2 | -891.3 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 11.69 | 14.67 | 4.65 | 331.27 | 0.1658 | -1047.0 | -943.3 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 11.87 | 14.58 | 4.56 | 332.25 | 0.1678 | -914.0 | -765.8 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 13.79 | 14.56 | 4.53 | 337.01 | 0.1975 | -471.0 | -370.2 | |
| 0.34 | 1.38 | 0.18 | 0.72 | 20.30 | 14.66 | 4.64 | 345.40 | 0.3024 | -898.2 | -836.2 | |
| 0.00 | 3.19 | 0.00 | 1.62 | 14.67 | 14.48 | 4.46 | 339.00 | 0.2109 | -986.0 | -846.9 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 14.91 | 14.37 | 4.34 | 339.91 | 0.2141 | -835.0 | -656.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 20.21 | 14.50 | 4.48 | 345.80 | 0.3002 | -935.0 | -836.8 | |
| 0.00 | 2.67 | 0.00 | 1.34 | 11.63 | 14.27 | 4.25 | 333.19 | 0.1617 | -1104.0 | -916.5 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 13.86 | 13.79 | 3.77 | 340.67 | 0.1938 | 717.0 | 589.8 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 21.65 | 13.97 | 3.95 | 348.46 | 0.3215 | -599.0 | -482.6 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 14.55 | 13.71 | 3.69 | 342.19 | 0.2046 | -909.0 | -644.7 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 10.79 | 13.62 | 3.60 | 334.47 | 0.1438 | -948.0 | -815.3 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 16.77 | 13.73 | 3.70 | 345.06 | 0.2409 | -819.0 | -619.0 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 14.71 | 13.53 | 3.51 | 343.24 | 0.2062 | -953.0 | -781.9 | |
| 15.60 | 27.31 | 7.86 | 13.76 | 13.47 | 13.36 | 3.34 | 342.11 | 0.1850 | -1155.9 | -665.6 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 14.89 | 13.32 | 3.30 | 344.44 | 0.2082 | -475.0 | -299.5 | |
| 0.95 | 1.98 | 0.48 | 1.01 | 15.49 | 13.27 | 3.25 | 345.44 | 0.2180 | 857.6 | 729.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 14.31 | 13.25 | 3.23 | 343.97 | 0.1984 | -826.0 | -680.9 | |
| 2.15 | 15.42 | 1.09 | 7.83 | 15.68 | 12.81 | 2.79 | 347.62 | 0.2192 | -1093.5 | -637.2 | |
| 9.91 | 321.21 | 5.01 | 162.19 | 14.77 | 12.76 | 2.74 | 346.83 | 0.2038 | -904.2 | -144.3 | |
| 1.12 | -36.00 | 0.57 | -36.00 | 15.74 | 12.59 | 2.57 | 348.60 | 0.2195 | -945.5 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 16.96 | 12.39 | 2.37 | 350.44 | 0.2393 | 906.0 | 677.7 | |
| 3.53 | -37.00 | 1.78 | -37.00 | 13.95 | 12.32 | 2.30 | 348.01 | 0.1886 | -1270.0 | 999999 | |
| 0.43 | 7.32 | 0.22 | 3.71 | 15.65 | 12.22 | 2.20 | 350.14 | 0.2168 | -861.8 | -432.6 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 13.26 | 12.16 | 2.14 | 348.04 | 0.1763 | -500.0 | -327.2 | |
| 0.52 | -37.00 | 0.26 | -37.00 | 14.08 | 12.08 | 2.06 | 349.37 | 0.1898 | -1174.8 | 999999 | |
| 10.25 | -37.00 | 5.17 | -37.00 | 14.26 | 11.90 | 1.88 | 350.46 | 0.1923 | -1206.6 | 999999 | |
| 0.00 | 5.43 | 0.00 | 2.73 | 13.32 | 11.74 | 1.72 | 350.43 | 0.1760 | -922.0 | -562.1 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 13.66 | 11.62 | 1.60 | 351.38 | 0.1813 | -894.0 | -632.8 | |
| 4.14 | -37.00 | 2.09 | -37.00 | 14.20 | 11.47 | 1.45 | 352.57 | 0.1902 | -1202.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 12.84 | 11.43 | 1.41 | 351.72 | 0.1670 | 752.0 | 554.8 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 13.35 | 11.25 | 1.23 | 353.14 | 0.1753 | -827.0 | -732.4 | |
| 6.98 | -37.00 | 3.53 | -37.00 | 14.62 | 11.11 | 1.08 | 354.65 | 0.1968 | 1050.8 | 999999 | |
| 9.39 | -37.00 | 4.74 | -37.00 | 14.17 | 11.07 | 1.05 | 354.58 | 0.1890 | -1272.6 | 999999 | |
| 0.00 | 4.14 | 0.00 | 2.08 | 13.23 | 11.07 | 1.04 | 354.09 | 0.1729 | -321.0 | -483.0 | |
| 6.20 | -37.00 | 3.13 | -37.00 | 14.56 | 10.74 | 0.71 | 356.44 | 0.1953 | 993.8 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 12.66 | 10.73 | 0.71 | 355.74 | 0.1626 | 729.0 | 565.5 | |
| 1.55 | -37.00 | 0.78 | -37.00 | 14.26 | 10.67 | 0.65 | 356.66 | 0.1900 | -1031.5 | 999999 | |
| 3.53 | 6.38 | 1.77 | 3.20 | 12.96 | 10.49 | 0.46 | 357.29 | 0.1675 | 895.1 | 522.7 | |
| 13.01 | -37.00 | 6.57 | -37.00 | 14.47 | 10.31 | 0.28 | 358.57 | 0.1934 | 1094.7 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 17.98 | 10.22 | 0.20 | 359.24 | 0.2532 | 845.0 | 643.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 16.08 | 10.16 | 0.13 | 359.41 | 0.2209 | -781.0 | -604.7 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 18.01 | 9.35 | -0.67 | 2.53 | 0.2539 | 1151.0 | 917.0 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 16.72 | 9.10 | -0.92 | 3.80 | 0.2324 | 1034.0 | 900.2 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 13.72 | 9.11 | -0.91 | 4.90 | 0.1810 | -899.0 | -662.3 | |
| 0.00 | 8.10 | 0.00 | 4.13 | 17.36 | 9.10 | -0.92 | 3.63 | 0.2433 | 1081.0 | 883.2 | |
| 0.00 | 2.67 | 0.00 | 1.35 | 14.78 | 8.84 | -1.19 | 5.79 | 0.1996 | 1191.0 | 861.8 | |
| 4.65 | 49.72 | 2.38 | 25.39 | 17.36 | 8.76 | -1.26 | 4.97 | 0.2437 | 1012.1 | -122.5 | |
| 6.55 | -65.00 | 3.34 | -65.00 | 17.06 | 8.64 | -1.38 | 5.58 | 0.2387 | 1110.8 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 15.20 | 8.65 | -1.37 | 6.44 | 0.2072 | 968.0 | 838.7 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 16.81 | 8.39 | -1.63 | 6.69 | 0.2350 | 128.0 | 143.3 | |
| 7.15 | -65.00 | 3.66 | -65.00 | 17.61 | 8.32 | -1.70 | 6.56 | 0.2486 | -972.1 | 999999 | |
| 1.12 | -65.00 | 0.57 | -65.00 | 17.24 | 8.33 | -1.70 | 6.73 | 0.2424 | -806.7 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 13.30 | 8.14 | -1.88 | 10.52 | 0.1760 | 964.0 | 762.7 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 14.41 | 7.92 | -2.11 | 10.53 | 0.1956 | 763.0 | 534.2 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 14.84 | 7.70 | -2.32 | 11.16 | 0.2035 | -759.0 | -484.4 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 20.85 | 7.28 | -2.75 | 8.48 | 0.3049 | 693.0 | 538.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 19.55 | 7.27 | -2.76 | 9.24 | 0.2834 | 844.0 | 715.0 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 20.04 | 6.97 | -3.05 | 9.88 | 0.2924 | 946.0 | 844.4 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 20.16 | 6.81 | -3.21 | 10.31 | 0.2949 | 900.0 | 740.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 19.85 | 6.44 | -3.58 | 11.71 | 0.2910 | 939.0 | 848.3 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 21.00 | 6.41 | -3.61 | 10.98 | 0.3099 | 604.0 | 556.7 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 17.90 | 4.32 | -5.70 | 20.64 | 0.2695 | 1104.0 | 926.4 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 15.89 | 4.16 | -5.86 | 24.36 | 0.2392 | 899.0 | 794.4 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 18.27 | 3.99 | -6.03 | 21.18 | 0.2772 | 867.0 | 711.4 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 17.32 | 2.99 | -7.03 | 25.84 | 0.2693 | 708.0 | 586.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 17.92 | 1.43 | -8.60 | 29.47 | 0.2904 | 717.0 | 563.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
