SDO HMI 2014-11-10 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.33 | 142.18 | 31.58 | 171.97 | -10.83 | 305.30 | -64.72 | 103.46 | 0.9144 | -230.2 | -313.3 | |
|
previous
or next observation for the same group /

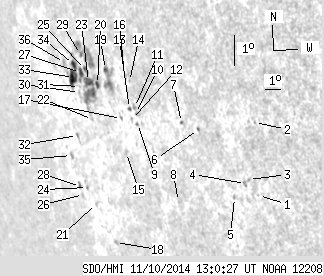

back to the solar disc SDO HMI 2014-11-10 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.72 | -13.66 | 314.43 | -55.59 | 108.49 | 0.8475 | 412.0 | 385.3 | |
| 0.00 | 0.78 | 0.00 | 0.70 | -11.39 | 314.96 | -55.07 | 105.98 | 0.8381 | 517.0 | 366.1 | |
| 0.00 | 1.12 | 0.00 | 1.05 | -13.18 | 314.05 | -55.97 | 107.84 | 0.8498 | 568.0 | 525.1 | |
| 0.00 | 1.98 | 0.00 | 1.86 | -13.32 | 313.84 | -56.18 | 107.94 | 0.8519 | 467.0 | 377.5 | |
| 0.00 | 1.29 | 0.00 | 1.25 | -13.79 | 313.05 | -56.97 | 108.29 | 0.8596 | 569.0 | 455.3 | |
| 0.00 | 1.38 | 0.00 | 1.36 | -11.76 | 311.72 | -58.30 | 105.68 | 0.8672 | 289.0 | 327.0 | |
| 0.00 | 1.03 | 0.00 | 1.05 | -11.60 | 310.78 | -59.24 | 105.29 | 0.8747 | 464.0 | 448.8 | |
| 0.00 | 0.52 | 0.00 | 0.55 | -14.09 | 309.60 | -60.42 | 107.82 | 0.8880 | 200.0 | 258.8 | |
| 0.00 | 1.21 | 0.00 | 1.34 | -11.77 | 307.97 | -62.06 | 104.94 | 0.8969 | 300.0 | 260.6 | |
| 0.00 | 0.78 | 0.00 | 0.86 | -11.47 | 307.96 | -62.07 | 104.60 | 0.8966 | 539.0 | 504.2 | |
| 0.00 | 1.64 | 0.00 | 1.81 | -11.28 | 307.96 | -62.06 | 104.40 | 0.8963 | 602.0 | 533.0 | |
| 0.00 | 1.46 | 0.00 | 1.64 | -11.67 | 307.61 | -62.41 | 104.76 | 0.8994 | 285.0 | 245.7 | |
| 0.69 | 1.55 | 0.77 | 1.74 | -11.33 | 307.62 | -62.41 | 104.39 | 0.8990 | 367.9 | 313.8 | |
| 0.00 | 0.95 | 0.00 | 1.05 | -10.49 | 307.93 | -62.09 | 103.52 | 0.8956 | 378.0 | 386.8 | |
| 0.00 | 1.55 | 0.00 | 1.80 | -12.72 | 306.83 | -63.20 | 105.76 | 0.9065 | -380.0 | -321.7 | |
| 0.00 | 0.43 | 0.00 | 0.48 | -10.32 | 307.66 | -62.36 | 103.28 | 0.8974 | 198.0 | 240.6 | |
| 0.00 | 1.03 | 0.00 | 1.19 | -11.67 | 306.94 | -63.08 | 104.64 | 0.9043 | 173.0 | 170.5 | |
| 0.00 | 1.64 | 0.00 | 2.12 | -15.64 | 304.48 | -65.54 | 108.46 | 0.9258 | -323.0 | -328.0 | |
| 1.21 | 19.21 | 1.40 | 22.25 | -10.21 | 306.43 | -63.59 | 102.95 | 0.9063 | -650.3 | -478.6 | |
| 1.72 | 64.71 | 2.06 | 80.45 | -10.70 | 305.68 | -64.34 | 103.37 | 0.9121 | -627.4 | -488.5 | |
| 0.00 | 1.12 | 0.00 | 1.48 | -14.46 | 303.75 | -66.27 | 107.08 | 0.9290 | -232.0 | -265.6 | |
| 0.00 | 0.86 | 0.00 | 1.07 | -11.82 | 304.84 | -65.18 | 104.43 | 0.9190 | -356.0 | -400.8 | |
| 4.91 | -20.00 | 6.01 | -20.00 | -10.64 | 305.06 | -64.96 | 103.20 | 0.9163 | -677.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 1.39 | -13.99 | 303.33 | -66.69 | 106.50 | 0.9310 | -427.0 | -406.8 | |
| 1.12 | -20.00 | 1.37 | -20.00 | -10.28 | 304.99 | -65.03 | 102.80 | 0.9164 | -577.2 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.71 | -14.23 | 302.87 | -67.15 | 106.68 | 0.9341 | 107.0 | 107.0 | |
| 2.58 | -20.00 | 3.22 | -20.00 | -10.40 | 304.58 | -65.44 | 102.86 | 0.9193 | -578.6 | 999999 | |
| 0.60 | 2.33 | 0.83 | 3.20 | -13.99 | 302.78 | -67.25 | 106.41 | 0.9344 | -82.6 | -76.7 | |
| 0.52 | 23.18 | 0.64 | 28.19 | -9.84 | 304.81 | -65.22 | 102.29 | 0.9173 | -519.7 | -361.1 | |
| 0.00 | 1.12 | 0.00 | 1.42 | -11.02 | 304.24 | -65.78 | 103.48 | 0.9222 | -362.0 | -347.8 | |
| 0.00 | 0.60 | 0.00 | 0.76 | -10.84 | 304.32 | -65.70 | 103.29 | 0.9215 | -435.0 | -415.1 | |
| 0.00 | 1.64 | 0.00 | 2.16 | -12.38 | 303.44 | -66.58 | 104.81 | 0.9287 | -485.0 | -427.1 | |
| 8.79 | -20.00 | 11.25 | -20.00 | -10.58 | 303.99 | -66.04 | 102.97 | 0.9234 | -457.0 | 999999 | |
| 3.19 | -20.00 | 4.03 | -20.00 | -10.18 | 304.16 | -65.87 | 102.56 | 0.9219 | -465.5 | 999999 | |
| 0.00 | 2.07 | 0.00 | 2.84 | -13.05 | 302.61 | -67.41 | 105.38 | 0.9344 | -315.0 | -238.6 | |
| 0.00 | 2.67 | 0.00 | 3.48 | -10.15 | 303.49 | -66.54 | 102.43 | 0.9263 | 52.0 | 51.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
