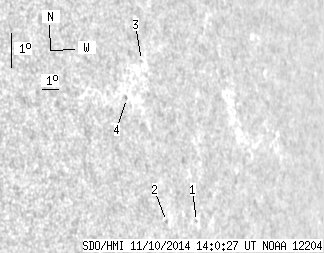

SDO HMI 2014-11-10 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.36 | 0.00 | 3.31 | 3.42 | 69.33 | 59.85 | 272.02 | 0.8658 | 225.2 | 232.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.64 | 1.48 | 71.51 | 62.03 | 269.88 | 0.8849 | -464.0 | -417.0 | |
| 0.00 | 1.21 | 0.00 | 1.20 | 1.58 | 69.65 | 60.18 | 269.88 | 0.8693 | 456.0 | 362.6 | |
| 0.00 | 0.60 | 0.00 | 0.58 | 6.42 | 68.76 | 59.28 | 275.47 | 0.8603 | 392.0 | 324.0 | |
| 0.00 | 0.95 | 0.00 | 0.89 | 5.34 | 67.70 | 58.22 | 274.19 | 0.8508 | 517.0 | 460.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
