SDO HMI 2014-11-10 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.31 | 155.09 | 33.38 | 182.99 | -10.85 | 305.45 | -64.02 | 103.60 | 0.9095 | -231.0 | -264.9 | |
|
previous
or next observation for the same group /

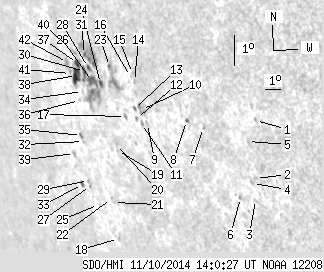

back to the solar disc SDO HMI 2014-11-10 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 1.08 | -11.37 | 314.68 | -54.79 | 106.03 | 0.8356 | 533.0 | 433.1 | |
| 0.00 | 1.21 | 0.00 | 1.11 | -13.18 | 314.11 | -55.36 | 108.00 | 0.8444 | 635.0 | 524.2 | |
| 0.00 | 0.60 | 0.00 | 0.56 | -13.84 | 313.88 | -55.60 | 108.70 | 0.8479 | 455.0 | 441.1 | |
| 0.00 | 1.29 | 0.00 | 1.20 | -13.35 | 313.89 | -55.58 | 108.13 | 0.8467 | 507.0 | 444.3 | |
| 0.00 | 0.95 | 0.00 | 0.87 | -12.05 | 314.05 | -55.42 | 106.67 | 0.8427 | 274.0 | 287.1 | |
| 0.00 | 1.29 | 0.00 | 1.23 | -13.82 | 313.06 | -56.42 | 108.46 | 0.8550 | 553.0 | 522.9 | |
| 0.00 | 1.55 | 0.00 | 1.51 | -11.73 | 311.71 | -57.76 | 105.76 | 0.8626 | 517.0 | 404.6 | |
| 0.43 | 1.55 | 0.43 | 1.55 | -11.57 | 310.78 | -58.69 | 105.37 | 0.8701 | 504.6 | 407.9 | |
| 0.00 | 2.15 | 0.00 | 2.32 | -11.79 | 308.32 | -61.15 | 105.12 | 0.8901 | 142.0 | 217.0 | |
| 0.00 | 6.12 | 0.00 | 6.62 | -11.37 | 308.10 | -61.37 | 104.62 | 0.8912 | 562.0 | 441.1 | |
| 0.00 | 1.81 | 0.00 | 1.97 | -11.81 | 307.93 | -61.54 | 105.07 | 0.8931 | 263.0 | 258.7 | |
| 0.00 | 1.21 | 0.00 | 1.33 | -11.67 | 307.66 | -61.81 | 104.87 | 0.8950 | 304.0 | 236.6 | |
| 0.43 | 1.55 | 0.47 | 1.70 | -11.36 | 307.65 | -61.82 | 104.53 | 0.8946 | 361.6 | 295.0 | |
| 0.00 | 1.55 | 0.00 | 1.68 | -10.52 | 307.96 | -61.51 | 103.65 | 0.8912 | 458.0 | 385.6 | |
| 0.00 | 1.72 | 0.00 | 1.87 | -10.28 | 307.91 | -61.56 | 103.38 | 0.8912 | 407.0 | 234.5 | |
| 0.00 | 0.43 | 0.00 | 0.47 | -10.38 | 307.75 | -61.72 | 103.46 | 0.8926 | 287.0 | 336.0 | |
| 0.00 | 2.15 | 0.00 | 2.43 | -11.64 | 306.95 | -62.52 | 104.71 | 0.9002 | 304.0 | 179.8 | |
| 0.00 | 1.55 | 0.00 | 1.96 | -15.54 | 304.52 | -64.95 | 108.47 | 0.9219 | -445.0 | -372.7 | |
| 0.00 | 0.78 | 0.00 | 0.91 | -12.74 | 305.94 | -63.54 | 105.72 | 0.9089 | -296.0 | -373.2 | |
| 0.00 | 0.60 | 0.00 | 0.71 | -12.56 | 305.95 | -63.52 | 105.52 | 0.9085 | -394.0 | -351.7 | |
| 0.00 | 0.95 | 0.00 | 1.17 | -14.41 | 304.81 | -64.66 | 107.31 | 0.9186 | -607.0 | -489.5 | |
| 0.00 | 0.69 | 0.00 | 0.86 | -14.29 | 304.73 | -64.74 | 107.17 | 0.9190 | -550.0 | -534.2 | |
| 0.60 | 18.18 | 0.69 | 20.61 | -10.14 | 306.46 | -63.02 | 102.98 | 0.9020 | -666.9 | -449.0 | |
| 1.72 | 60.13 | 2.02 | 73.16 | -10.71 | 305.63 | -63.84 | 103.45 | 0.9086 | -623.5 | -514.1 | |
| 0.00 | 0.52 | 0.00 | 0.67 | -14.53 | 303.63 | -65.84 | 107.23 | 0.9264 | -448.0 | -431.3 | |
| 5.69 | -24.00 | 6.82 | -24.00 | -10.67 | 305.08 | -64.39 | 103.33 | 0.9124 | -684.5 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.70 | -13.96 | 303.35 | -66.12 | 106.57 | 0.9275 | -454.0 | -439.1 | |
| 1.21 | -24.00 | 1.45 | -24.00 | -10.25 | 304.97 | -64.51 | 102.85 | 0.9128 | -547.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.24 | -13.81 | 303.28 | -66.19 | 106.39 | 0.9277 | -437.0 | -413.7 | |
| 2.76 | -24.00 | 3.36 | -24.00 | -10.39 | 304.63 | -64.85 | 102.95 | 0.9153 | -581.2 | 999999 | |
| 1.03 | 24.47 | 1.24 | 29.14 | -9.87 | 304.83 | -64.64 | 102.41 | 0.9133 | -460.1 | -379.0 | |
| 0.00 | 0.52 | 0.00 | 0.67 | -12.59 | 303.56 | -65.91 | 105.14 | 0.9247 | -481.0 | -444.7 | |
| 1.12 | 2.07 | 1.51 | 2.78 | -13.96 | 302.73 | -66.74 | 106.46 | 0.9313 | -56.1 | -52.9 | |
| 0.00 | 1.12 | 0.00 | 1.39 | -11.03 | 304.22 | -65.25 | 103.57 | 0.9187 | -410.0 | -382.3 | |
| 0.60 | 1.90 | 0.78 | 2.45 | -12.41 | 303.50 | -65.97 | 104.94 | 0.9249 | -468.0 | -427.0 | |
| 0.00 | 0.95 | 0.00 | 1.19 | -11.32 | 303.87 | -65.60 | 103.83 | 0.9213 | -437.0 | -347.8 | |
| 3.10 | -24.00 | 3.84 | -24.00 | -10.17 | 304.21 | -65.27 | 102.65 | 0.9179 | -481.8 | 999999 | |
| 8.62 | -24.00 | 10.77 | -24.00 | -10.55 | 303.98 | -65.49 | 103.02 | 0.9198 | -479.0 | 999999 | |
| 0.00 | 1.98 | 0.00 | 2.66 | -13.01 | 302.65 | -66.83 | 105.44 | 0.9309 | -262.0 | -258.4 | |
| 0.00 | 3.02 | 0.00 | 3.75 | -9.82 | 303.98 | -65.49 | 102.23 | 0.9191 | -99.0 | -130.5 | |
| 0.00 | 1.72 | 0.00 | 2.19 | -10.51 | 303.55 | -65.92 | 102.91 | 0.9226 | -152.0 | -78.1 | |
| 0.00 | 3.36 | 0.00 | 4.28 | -10.18 | 303.46 | -66.01 | 102.54 | 0.9229 | 77.0 | 41.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
