SDO HMI 2014-11-10 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 190.64 | 839.97 | 96.57 | 426.10 | 14.69 | 12.77 | 3.85 | 339.57 | 0.2140 | -452.6 | -258.2 | |
|
previous
or next observation for the same group /

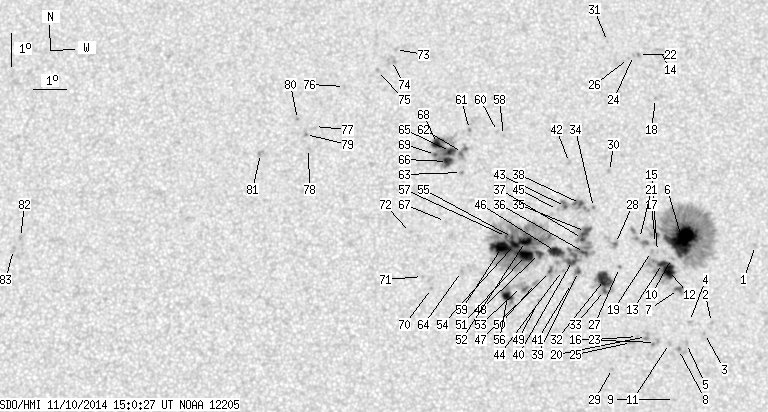

back to the solar disc SDO HMI 2014-11-10 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.15 | 0.00 | 1.10 | 14.44 | 18.13 | 9.21 | 321.19 | 0.2484 | -847.0 | -626.0 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 12.14 | 16.69 | 7.77 | 319.15 | 0.2030 | -858.0 | -744.5 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 11.81 | 16.47 | 7.55 | 318.86 | 0.1963 | -944.0 | -821.6 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 12.17 | 16.02 | 7.10 | 321.78 | 0.1961 | 798.0 | 564.0 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 11.51 | 15.91 | 6.99 | 319.98 | 0.1862 | -795.0 | -724.8 | |
| 51.08 | 241.80 | 25.99 | 123.14 | 14.61 | 15.88 | 6.96 | 329.03 | 0.2288 | -1369.5 | -378.3 | |
| 1.81 | 5.08 | 0.92 | 2.57 | 13.14 | 15.71 | 6.79 | 325.89 | 0.2062 | -1052.1 | -789.7 | |
| 0.00 | 1.98 | 0.00 | 1.00 | 11.34 | 15.66 | 6.74 | 320.36 | 0.1812 | -1126.0 | -948.9 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 9.84 | 15.51 | 6.58 | 315.01 | 0.1605 | -888.0 | -609.1 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 14.07 | 15.52 | 6.60 | 329.06 | 0.2179 | -712.0 | -570.5 | |
| 0.00 | 2.33 | 0.00 | 1.17 | 11.52 | 15.39 | 6.47 | 322.13 | 0.1807 | -869.0 | -706.9 | |
| 12.15 | 42.30 | 6.15 | 21.42 | 13.71 | 15.42 | 6.50 | 328.56 | 0.2117 | -1313.3 | -735.9 | |
| 4.05 | -12.00 | 2.05 | -12.00 | 13.92 | 15.24 | 6.32 | 329.78 | 0.2132 | -1152.0 | 999999 | |
| 0.00 | 2.84 | 0.00 | 1.48 | 20.47 | 15.39 | 6.46 | 340.29 | 0.3140 | -829.0 | -720.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 14.29 | 15.10 | 6.18 | 331.20 | 0.2174 | -910.0 | -839.8 | |
| 0.00 | 3.96 | 0.00 | 1.99 | 11.55 | 14.97 | 6.04 | 324.10 | 0.1767 | -671.0 | -819.5 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 14.53 | 15.04 | 6.12 | 331.96 | 0.2206 | -894.0 | -706.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 18.95 | 15.20 | 6.27 | 338.98 | 0.2894 | -890.0 | -629.5 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 14.29 | 14.91 | 5.99 | 331.93 | 0.2159 | -1006.0 | -864.9 | |
| 0.00 | 4.57 | 0.00 | 2.30 | 11.73 | 14.70 | 5.77 | 325.93 | 0.1766 | -975.0 | -891.6 | |
| 0.00 | 11.37 | 0.00 | 5.77 | 14.69 | 14.56 | 5.63 | 334.20 | 0.2191 | -911.0 | -818.0 | |
| 0.00 | 1.55 | 0.00 | 0.81 | 20.32 | 14.71 | 5.79 | 342.04 | 0.3080 | -913.0 | -765.4 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 11.73 | 14.42 | 5.50 | 327.21 | 0.1741 | -980.0 | -777.8 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 20.29 | 14.55 | 5.63 | 342.47 | 0.3067 | -935.0 | -753.7 | |
| 0.00 | 2.58 | 0.00 | 1.30 | 11.56 | 14.24 | 5.31 | 327.52 | 0.1697 | -1073.0 | -824.4 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 20.20 | 14.39 | 5.46 | 342.85 | 0.3045 | -894.0 | -790.6 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 13.81 | 13.92 | 5.00 | 335.00 | 0.2010 | 523.0 | 569.6 | |
| 0.52 | 6.63 | 0.26 | 3.36 | 14.54 | 13.81 | 4.89 | 336.94 | 0.2116 | -1113.3 | -774.9 | |
| 0.00 | 0.95 | 0.00 | 0.47 | 10.78 | 13.65 | 4.72 | 327.93 | 0.1530 | -863.0 | -584.6 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 16.73 | 13.68 | 4.76 | 341.03 | 0.2455 | -842.0 | -664.7 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 20.73 | 13.74 | 4.81 | 345.26 | 0.3100 | -824.0 | -659.4 | |
| 13.96 | 30.41 | 7.04 | 15.34 | 13.45 | 13.45 | 4.53 | 336.33 | 0.1922 | -1174.5 | -681.6 | |
| 1.12 | -32.00 | 0.56 | -32.00 | 13.12 | 13.45 | 4.52 | 335.63 | 0.1869 | -1066.2 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 15.63 | 13.16 | 4.24 | 341.49 | 0.2251 | 806.0 | 733.7 | |
| 4.48 | 299.69 | 2.27 | 151.41 | 14.91 | 12.90 | 3.97 | 341.49 | 0.2119 | -1136.5 | -130.1 | |
| 2.50 | -35.00 | 1.26 | -35.00 | 14.27 | 12.86 | 3.93 | 340.65 | 0.2014 | -1017.0 | 999999 | |
| 2.15 | -35.00 | 1.09 | -35.00 | 14.70 | 12.80 | 3.88 | 341.58 | 0.2080 | -1046.3 | 999999 | |
| 1.46 | 18.78 | 0.74 | 9.54 | 15.76 | 12.76 | 3.84 | 343.29 | 0.2250 | -1084.2 | -728.6 | |
| 0.95 | -35.00 | 0.48 | -35.00 | 13.70 | 12.66 | 3.74 | 340.55 | 0.1911 | -1142.9 | 999999 | |
| 6.20 | -35.00 | 3.13 | -35.00 | 14.03 | 12.48 | 3.56 | 341.97 | 0.1955 | -1201.7 | 999999 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 13.34 | 12.44 | 3.52 | 340.98 | 0.1840 | -898.0 | -562.4 | |
| 0.00 | 2.07 | 0.00 | 1.06 | 17.01 | 12.45 | 3.52 | 346.01 | 0.2441 | 891.0 | 686.6 | |
| 0.69 | -38.00 | 0.35 | -38.00 | 15.67 | 12.30 | 3.37 | 345.11 | 0.2214 | -1148.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 13.73 | 12.17 | 3.25 | 342.98 | 0.1890 | -860.0 | -824.6 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 15.58 | 12.05 | 3.12 | 346.06 | 0.2189 | -124.0 | -128.3 | |
| 9.39 | -35.00 | 4.74 | -35.00 | 14.31 | 11.97 | 3.04 | 344.83 | 0.1975 | -1230.3 | 999999 | |
| 1.03 | 8.01 | 0.52 | 4.04 | 13.70 | 11.80 | 2.88 | 344.77 | 0.1867 | -1138.2 | -701.5 | |
| 3.53 | -35.00 | 1.78 | -35.00 | 14.25 | 11.47 | 2.55 | 347.12 | 0.1944 | -1217.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 12.83 | 11.43 | 2.50 | 345.47 | 0.1706 | 792.0 | 521.6 | |
| 0.00 | 3.10 | 0.00 | 1.56 | 13.34 | 11.34 | 2.42 | 346.66 | 0.1788 | -630.0 | -514.1 | |
| 12.92 | -35.00 | 6.52 | -35.00 | 14.19 | 11.05 | 2.12 | 349.17 | 0.1919 | -1287.7 | 999999 | |
| 9.13 | -35.00 | 4.61 | -35.00 | 14.61 | 11.05 | 2.13 | 349.56 | 0.1991 | 1081.6 | 999999 | |
| 0.00 | 9.82 | 0.00 | 4.94 | 13.25 | 10.91 | 1.99 | 348.86 | 0.1757 | -136.0 | -547.3 | |
| 5.17 | -35.00 | 2.61 | -35.00 | 14.52 | 10.71 | 1.79 | 351.12 | 0.1966 | 1062.7 | 999999 | |
| 1.90 | -35.00 | 0.96 | -35.00 | 14.73 | 10.65 | 1.73 | 351.58 | 0.2001 | 930.2 | 999999 | |
| 6.03 | 15.68 | 3.03 | 7.88 | 12.95 | 10.48 | 1.56 | 350.94 | 0.1693 | 1023.0 | 332.8 | |
| 0.69 | -35.00 | 0.35 | -35.00 | 14.77 | 10.47 | 1.54 | 352.48 | 0.2001 | 755.9 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 17.84 | 10.40 | 1.48 | 354.38 | 0.2522 | 938.0 | 730.2 | |
| 18.00 | -35.00 | 9.09 | -35.00 | 14.43 | 10.31 | 1.39 | 353.02 | 0.1941 | 945.0 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 17.96 | 10.22 | 1.29 | 355.13 | 0.2540 | 827.0 | 604.4 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 18.03 | 9.34 | 0.42 | 358.42 | 0.2542 | 1017.0 | 867.6 | |
| 0.00 | 8.44 | 0.00 | 4.31 | 17.32 | 9.12 | 0.20 | 359.21 | 0.2422 | 936.0 | 873.9 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 16.71 | 9.09 | 0.17 | 359.30 | 0.2318 | 1152.0 | 968.9 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 13.71 | 9.09 | 0.16 | 359.12 | 0.1803 | -895.0 | -806.4 | |
| 4.57 | 54.01 | 2.33 | 27.57 | 17.35 | 8.75 | -0.17 | 0.68 | 0.2427 | 979.2 | -3.1 | |
| 5.94 | -65.00 | 3.03 | -65.00 | 17.05 | 8.66 | -0.27 | 1.08 | 0.2375 | 1175.1 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 15.22 | 8.60 | -0.33 | 1.54 | 0.2063 | 727.0 | 622.6 | |
| 8.36 | -65.00 | 4.27 | -65.00 | 17.60 | 8.35 | -0.58 | 2.24 | 0.2470 | -951.9 | 999999 | |
| 0.86 | -65.00 | 0.44 | -65.00 | 17.26 | 8.28 | -0.64 | 2.54 | 0.2414 | -953.0 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 13.20 | 8.17 | -0.75 | 4.29 | 0.1719 | 944.0 | 785.0 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 13.56 | 7.89 | -1.03 | 5.64 | 0.1785 | 834.0 | 621.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 14.89 | 7.52 | -1.40 | 6.75 | 0.2020 | -652.0 | -504.6 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 20.50 | 7.01 | -1.91 | 6.07 | 0.2974 | 929.0 | 717.2 | |
| 0.00 | 5.77 | 0.00 | 2.99 | 20.16 | 6.89 | -2.04 | 6.59 | 0.2920 | 494.0 | 757.3 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 19.85 | 6.45 | -2.48 | 8.15 | 0.2878 | 1024.0 | 845.1 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 19.35 | 5.42 | -3.51 | 11.84 | 0.2826 | 749.0 | 603.9 | |
| 0.00 | 0.34 | 0.00 | 0.18 | 18.12 | 4.50 | -4.42 | 16.06 | 0.2662 | 508.0 | 637.8 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 17.44 | 4.33 | -4.59 | 17.44 | 0.2561 | 843.0 | 616.7 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 17.87 | 4.23 | -4.70 | 17.29 | 0.2635 | 1078.0 | 882.0 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 18.33 | 3.96 | -4.96 | 17.63 | 0.2722 | 870.0 | 776.0 | |
| 0.00 | 3.01 | 0.00 | 1.55 | 17.28 | 2.84 | -6.09 | 22.82 | 0.2623 | 751.0 | 717.1 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 14.66 | 355.44 | -13.49 | 48.83 | 0.3011 | 880.0 | 702.5 | |
| 0.00 | 3.01 | 0.00 | 1.56 | 14.30 | 355.24 | -13.68 | 50.19 | 0.2998 | 758.0 | 630.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
