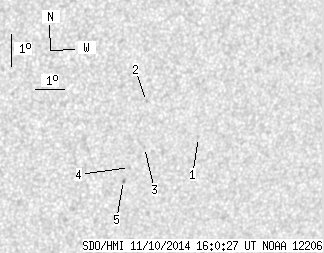

SDO HMI 2014-11-10 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.92 | 0.00 | 2.84 | -15.94 | 32.65 | 24.28 | 230.51 | 0.5146 | -491.6 | -439.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.55 | -15.57 | 34.38 | 26.00 | 232.94 | 0.5313 | 621.0 | 483.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -14.39 | 32.46 | 24.09 | 232.79 | 0.4984 | -728.0 | -646.3 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -15.83 | 32.57 | 24.20 | 230.59 | 0.5124 | -838.0 | -681.1 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -16.45 | 32.14 | 23.77 | 229.14 | 0.5132 | -796.0 | -660.9 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -16.86 | 31.99 | 23.62 | 228.34 | 0.5153 | -717.0 | -663.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
