SDO HMI 2014-11-10 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.81 | 0.00 | 11.01 | -23.63 | 9.17 | 0.79 | 181.63 | 0.4561 | 790.0 | 662.1 | |
|
previous
or next observation for the same group /

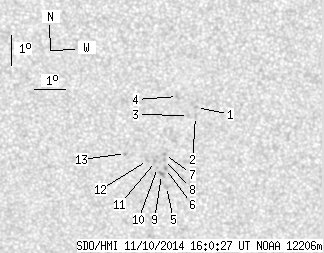

back to the solar disc SDO HMI 2014-11-10 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.81 | -22.31 | 10.07 | 1.70 | 183.61 | 0.4360 | 763.0 | 595.9 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -22.60 | 10.04 | 1.67 | 183.51 | 0.4407 | 751.0 | 546.3 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -22.57 | 9.81 | 1.44 | 183.04 | 0.4399 | 790.0 | 604.1 | |
| 0.00 | 2.15 | 0.00 | 1.18 | -21.94 | 9.46 | 1.08 | 182.35 | 0.4298 | 895.0 | 685.1 | |
| 0.00 | 2.15 | 0.00 | 1.21 | -24.94 | 9.12 | 0.74 | 181.42 | 0.4764 | 661.0 | 559.2 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -24.33 | 9.08 | 0.71 | 181.39 | 0.4670 | 814.0 | 710.2 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -23.86 | 9.05 | 0.67 | 181.35 | 0.4597 | 934.0 | 796.7 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -24.03 | 9.05 | 0.68 | 181.34 | 0.4623 | 858.0 | 744.4 | |
| 0.00 | 2.58 | 0.00 | 1.45 | -24.53 | 8.95 | 0.58 | 181.13 | 0.4701 | 856.0 | 732.3 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -24.30 | 8.82 | 0.45 | 180.88 | 0.4664 | 657.0 | 600.8 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -24.10 | 8.76 | 0.38 | 180.76 | 0.4633 | 844.0 | 799.5 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -24.06 | 8.50 | 0.12 | 180.24 | 0.4627 | 786.0 | 711.3 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -23.83 | 7.78 | -0.59 | 178.82 | 0.4591 | 661.0 | 556.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
