SDO HMI 2014-11-10 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 186.74 | 867.58 | 94.79 | 441.09 | 14.67 | 12.70 | 5.43 | 332.70 | 0.2238 | -462.1 | -278.2 | |
|
previous
or next observation for the same group /

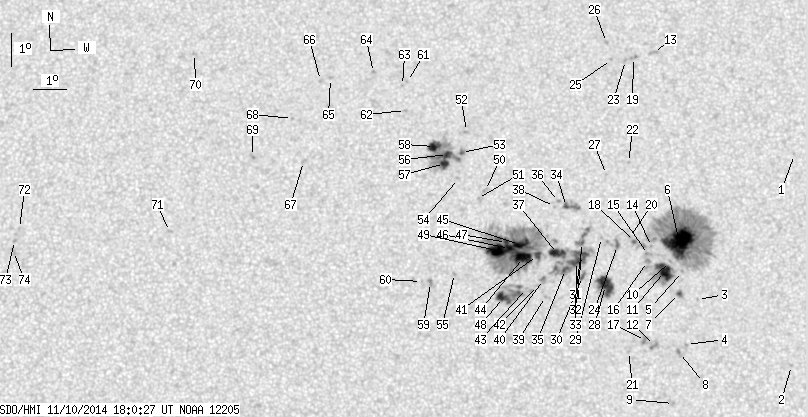

back to the solar disc SDO HMI 2014-11-10 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.45 | 17.26 | 19.65 | 12.38 | 319.68 | 0.3179 | -655.0 | -528.4 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 10.89 | 19.20 | 11.93 | 303.03 | 0.2433 | -873.0 | -707.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 12.90 | 16.38 | 9.12 | 317.11 | 0.2280 | 678.0 | 487.2 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 11.55 | 16.00 | 8.73 | 313.88 | 0.2072 | -703.0 | -660.4 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 13.75 | 15.95 | 8.68 | 320.95 | 0.2339 | -645.0 | -507.2 | |
| 41.69 | 254.93 | 21.29 | 130.35 | 14.62 | 15.90 | 8.63 | 323.45 | 0.2448 | -1428.5 | -397.1 | |
| 1.29 | 3.53 | 0.66 | 1.79 | 13.09 | 15.84 | 8.57 | 319.41 | 0.2241 | -1103.1 | -892.3 | |
| 0.00 | 3.10 | 0.00 | 1.57 | 11.31 | 15.78 | 8.51 | 313.74 | 0.2017 | -1005.0 | -811.2 | |
| 0.00 | 1.55 | 0.00 | 0.78 | 9.79 | 15.55 | 8.28 | 308.38 | 0.1819 | -764.0 | -687.2 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 14.05 | 15.59 | 8.33 | 322.93 | 0.2341 | -849.0 | -686.8 | |
| 16.71 | 38.33 | 8.50 | 19.48 | 13.75 | 15.40 | 8.13 | 322.77 | 0.2281 | -1260.0 | -639.2 | |
| 0.00 | 4.22 | 0.00 | 2.13 | 11.53 | 15.02 | 7.75 | 317.16 | 0.1952 | -1044.0 | -842.3 | |
| 0.00 | 3.88 | 0.00 | 2.03 | 20.45 | 15.36 | 8.09 | 335.87 | 0.3238 | -850.0 | -663.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 14.51 | 15.02 | 7.76 | 326.01 | 0.2347 | -982.0 | -896.3 | |
| 0.00 | 2.76 | 0.00 | 1.40 | 14.27 | 14.92 | 7.65 | 325.75 | 0.2304 | -1012.0 | -923.7 | |
| 0.00 | 2.76 | 0.00 | 1.40 | 14.06 | 14.88 | 7.62 | 325.35 | 0.2271 | -945.0 | -887.2 | |
| 0.00 | 4.13 | 0.00 | 2.09 | 11.68 | 14.75 | 7.48 | 318.69 | 0.1940 | -1005.0 | -907.4 | |
| 0.52 | 6.98 | 0.26 | 3.55 | 14.67 | 14.50 | 7.24 | 328.18 | 0.2321 | -1120.2 | -819.6 | |
| 0.00 | 2.76 | 0.00 | 1.44 | 20.30 | 14.71 | 7.44 | 337.39 | 0.3173 | -817.0 | -760.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 14.79 | 14.35 | 7.08 | 328.99 | 0.2326 | -927.0 | -814.9 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 11.36 | 14.22 | 6.95 | 319.59 | 0.1839 | -848.0 | -564.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 17.07 | 14.41 | 7.14 | 333.40 | 0.2665 | -809.0 | -609.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 20.21 | 14.45 | 7.18 | 337.98 | 0.3143 | -828.0 | -755.2 | |
| 0.69 | 7.58 | 0.35 | 3.85 | 14.55 | 13.97 | 6.71 | 329.81 | 0.2258 | -1163.6 | -818.7 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 20.24 | 14.00 | 6.74 | 339.26 | 0.3122 | -791.0 | -596.1 | |
| 0.00 | 1.64 | 0.00 | 0.85 | 20.77 | 13.87 | 6.60 | 340.25 | 0.3196 | -883.0 | -683.2 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 16.71 | 13.71 | 6.44 | 335.07 | 0.2560 | -814.0 | -620.0 | |
| 17.31 | 27.90 | 8.76 | 14.12 | 13.35 | 13.57 | 6.30 | 328.40 | 0.2047 | -1158.1 | -642.5 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 14.80 | 13.49 | 6.22 | 332.17 | 0.2254 | -766.0 | -581.7 | |
| 1.29 | 2.84 | 0.65 | 1.44 | 13.62 | 12.87 | 5.60 | 331.97 | 0.2029 | -1077.5 | -789.7 | |
| 0.69 | 333.05 | 0.35 | 168.51 | 14.65 | 12.90 | 5.63 | 334.14 | 0.2186 | -1029.5 | -189.9 | |
| 6.29 | -31.00 | 3.19 | -31.00 | 14.26 | 12.86 | 5.59 | 333.48 | 0.2123 | -1004.8 | 999999 | |
| 7.84 | -31.00 | 3.97 | -31.00 | 14.08 | 12.70 | 5.43 | 333.73 | 0.2084 | -1241.1 | 999999 | |
| 1.46 | 10.42 | 0.75 | 5.31 | 15.74 | 12.43 | 5.17 | 338.00 | 0.2324 | -1155.9 | -906.5 | |
| 2.50 | -31.00 | 1.26 | -31.00 | 13.84 | 12.36 | 5.09 | 334.67 | 0.2022 | -1150.8 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 15.90 | 12.19 | 4.92 | 339.19 | 0.2333 | -817.0 | -649.4 | |
| 9.99 | -31.00 | 5.06 | -31.00 | 14.32 | 12.12 | 4.85 | 336.68 | 0.2080 | -1253.9 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 15.75 | 12.06 | 4.79 | 339.44 | 0.2302 | -790.0 | -665.1 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 13.03 | 11.73 | 4.46 | 335.73 | 0.1850 | 822.0 | 607.8 | |
| 0.00 | 3.96 | 0.00 | 2.00 | 13.54 | 11.67 | 4.41 | 337.09 | 0.1927 | -466.0 | -418.4 | |
| 3.27 | -31.00 | 1.66 | -31.00 | 14.26 | 11.51 | 4.24 | 339.27 | 0.2032 | -1172.4 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 13.36 | 11.49 | 4.22 | 337.59 | 0.1887 | -149.0 | -203.5 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 13.27 | 11.15 | 3.88 | 339.05 | 0.1851 | -765.0 | -624.0 | |
| 14.30 | -31.00 | 7.23 | -31.00 | 14.21 | 11.07 | 3.81 | 341.11 | 0.1997 | -1306.0 | 999999 | |
| 9.22 | -31.00 | 4.66 | -31.00 | 14.60 | 10.96 | 3.69 | 342.27 | 0.2055 | 1147.2 | 999999 | |
| 6.03 | -31.00 | 3.05 | -31.00 | 14.48 | 10.65 | 3.38 | 343.50 | 0.2020 | 1015.0 | 999999 | |
| 3.19 | -31.00 | 1.61 | -31.00 | 14.66 | 10.56 | 3.29 | 344.17 | 0.2046 | 961.2 | 999999 | |
| 8.44 | 32.90 | 4.25 | 16.56 | 13.00 | 10.44 | 3.18 | 342.13 | 0.1767 | 1031.7 | -73.3 | |
| 16.45 | -31.00 | 8.31 | -31.00 | 14.42 | 10.25 | 2.98 | 345.28 | 0.1992 | 1105.4 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.23 | 16.24 | 9.94 | 2.67 | 348.65 | 0.2283 | -686.0 | -680.5 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 16.00 | 9.69 | 2.42 | 349.49 | 0.2235 | -641.0 | -587.8 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 18.05 | 9.37 | 2.10 | 352.15 | 0.2570 | 1028.0 | 814.9 | |
| 0.00 | 2.84 | 0.00 | 1.45 | 17.41 | 9.21 | 1.94 | 352.41 | 0.2458 | 1095.0 | 867.9 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 16.61 | 9.11 | 1.84 | 352.35 | 0.2322 | 899.0 | 743.1 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 13.73 | 8.96 | 1.69 | 350.96 | 0.1830 | -934.0 | -710.1 | |
| 4.39 | 61.41 | 2.24 | 31.35 | 17.35 | 8.77 | 1.50 | 354.07 | 0.2439 | 1055.1 | 104.2 | |
| 4.91 | -56.00 | 2.50 | -56.00 | 17.07 | 8.68 | 1.41 | 354.33 | 0.2391 | 1253.7 | 999999 | |
| 8.27 | -56.00 | 4.23 | -56.00 | 17.59 | 8.37 | 1.10 | 355.73 | 0.2475 | -1001.4 | 999999 | |
| 0.00 | 3.01 | 0.00 | 1.52 | 13.46 | 8.22 | 0.95 | 354.72 | 0.1768 | 944.0 | 807.9 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 13.49 | 7.95 | 0.68 | 356.25 | 0.1769 | 859.0 | 604.0 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 19.59 | 7.54 | 0.27 | 359.10 | 0.2806 | 773.0 | 660.4 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 18.70 | 7.47 | 0.20 | 359.27 | 0.2655 | 903.0 | 629.3 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 19.47 | 7.38 | 0.11 | 359.63 | 0.2785 | 950.0 | 649.5 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 19.87 | 6.46 | -0.80 | 2.66 | 0.2856 | 836.0 | 777.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 19.69 | 5.11 | -2.16 | 7.19 | 0.2845 | 667.0 | 506.2 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 19.62 | 4.80 | -2.47 | 8.26 | 0.2841 | 837.0 | 618.4 | |
| 0.00 | 2.33 | 0.00 | 1.19 | 17.13 | 4.30 | -2.97 | 11.75 | 0.2442 | 114.0 | 82.6 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 18.45 | 3.93 | -3.33 | 11.97 | 0.2672 | 960.0 | 730.6 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 17.28 | 2.71 | -4.56 | 17.51 | 0.2534 | 896.0 | 831.6 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 20.45 | 0.78 | -6.49 | 19.81 | 0.3139 | -726.0 | -660.8 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 14.99 | 0.20 | -7.07 | 30.51 | 0.2353 | 853.0 | 643.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 15.04 | 355.52 | -11.75 | 44.02 | 0.2842 | 716.0 | 650.3 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 14.68 | 355.39 | -11.88 | 45.28 | 0.2816 | 873.0 | 695.4 | |
| 0.00 | 3.36 | 0.00 | 1.73 | 14.34 | 355.37 | -11.90 | 46.19 | 0.2780 | 764.0 | 712.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
