SDO HMI 2014-11-10 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.86 | 0.00 | 13.31 | -23.92 | 8.98 | 2.27 | 184.52 | 0.4619 | 787.9 | 694.8 | |
|
previous
or next observation for the same group /

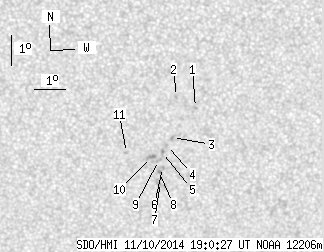

back to the solar disc SDO HMI 2014-11-10 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.81 | -22.31 | 10.05 | 3.33 | 187.07 | 0.4385 | 833.0 | 712.4 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -21.95 | 9.43 | 2.71 | 185.87 | 0.4317 | 884.0 | 775.8 | |
| 0.00 | 2.24 | 0.00 | 1.24 | -23.30 | 9.33 | 2.61 | 185.32 | 0.4527 | 904.0 | 704.7 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -23.57 | 9.17 | 2.45 | 184.95 | 0.4566 | 774.0 | 611.4 | |
| 0.00 | 2.07 | 0.00 | 1.15 | -23.80 | 9.01 | 2.30 | 184.59 | 0.4600 | 938.0 | 808.7 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -24.30 | 9.02 | 2.30 | 184.51 | 0.4678 | 748.0 | 625.8 | |
| 0.00 | 5.51 | 0.00 | 3.10 | -24.81 | 8.96 | 2.25 | 184.31 | 0.4755 | 399.0 | 573.0 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -24.47 | 8.92 | 2.21 | 184.30 | 0.4702 | 778.0 | 715.5 | |
| 0.00 | 2.24 | 0.00 | 1.25 | -24.07 | 8.89 | 2.17 | 184.29 | 0.4640 | 682.0 | 643.0 | |
| 0.00 | 4.13 | 0.00 | 2.31 | -23.97 | 8.66 | 1.94 | 183.86 | 0.4622 | 894.0 | 828.4 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -23.80 | 7.84 | 1.13 | 182.26 | 0.4589 | 833.0 | 647.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
