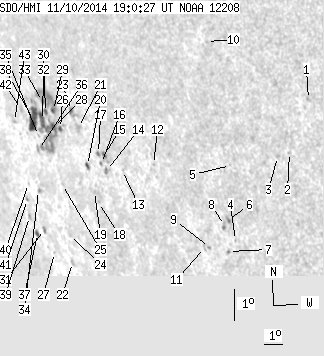

SDO HMI 2014-11-10 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.42 | 164.07 | 36.73 | 175.04 | -10.99 | 305.65 | -61.06 | 104.29 | 0.8873 | -237.1 | -270.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 1.24 | -9.13 | 319.04 | -47.67 | 105.13 | 0.7585 | 357.0 | 401.1 | |
| 0.00 | 1.03 | 0.00 | 0.81 | -10.79 | 317.84 | -48.87 | 106.91 | 0.7756 | 549.0 | 398.7 | |
| 0.00 | 1.55 | 0.00 | 1.23 | -10.94 | 317.25 | -49.46 | 106.92 | 0.7822 | 464.0 | 369.3 | |
| 0.00 | 0.69 | 0.00 | 0.59 | -13.65 | 314.48 | -52.23 | 109.40 | 0.8167 | 460.0 | 489.5 | |
| 0.00 | 0.86 | 0.00 | 0.72 | -11.32 | 314.90 | -51.81 | 106.73 | 0.8070 | 496.0 | 475.3 | |
| 0.00 | 2.41 | 0.00 | 2.06 | -13.01 | 314.33 | -52.38 | 108.60 | 0.8165 | 677.0 | 582.2 | |
| 0.00 | 1.38 | 0.00 | 1.19 | -14.01 | 314.01 | -52.70 | 109.70 | 0.8220 | 536.0 | 463.4 | |
| 0.00 | 2.93 | 0.00 | 2.52 | -13.21 | 314.07 | -52.65 | 108.76 | 0.8195 | 528.0 | 482.3 | |
| 0.00 | 1.21 | 0.00 | 1.07 | -13.94 | 313.06 | -53.65 | 109.33 | 0.8306 | 618.0 | 557.4 | |
| 0.00 | 1.21 | 0.00 | 1.00 | -7.58 | 314.54 | -52.18 | 102.06 | 0.8029 | 540.0 | 382.9 | |
| 0.00 | 1.89 | 0.00 | 1.69 | -13.95 | 312.80 | -53.92 | 109.27 | 0.8331 | 330.0 | 298.5 | |
| 0.00 | 0.78 | 0.00 | 0.71 | -11.49 | 310.88 | -55.83 | 105.91 | 0.8453 | 628.0 | 447.9 | |
| 0.00 | 0.43 | 0.00 | 0.42 | -11.76 | 309.07 | -57.65 | 105.82 | 0.8616 | 551.0 | 503.2 | |
| 0.00 | 2.93 | 0.00 | 2.92 | -11.81 | 308.13 | -58.59 | 105.67 | 0.8696 | 409.0 | 350.6 | |
| 1.21 | 4.82 | 1.20 | 4.81 | -11.32 | 308.18 | -58.54 | 105.12 | 0.8684 | 673.2 | 486.8 | |
| 0.00 | 1.29 | 0.00 | 1.29 | -11.61 | 307.90 | -58.81 | 105.39 | 0.8712 | 307.0 | 262.4 | |
| 0.69 | -15.00 | 0.69 | -15.00 | -11.30 | 307.83 | -58.88 | 105.03 | 0.8713 | 475.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.89 | -12.84 | 307.27 | -59.44 | 106.64 | 0.8783 | -281.0 | -268.1 | |
| 0.00 | 1.38 | 0.00 | 1.42 | -12.50 | 307.16 | -59.56 | 106.24 | 0.8786 | -357.0 | -314.3 | |
| 1.38 | 2.50 | 1.42 | 2.57 | -11.71 | 307.03 | -59.69 | 105.33 | 0.8784 | 231.7 | 212.0 | |
| 0.00 | 4.48 | 0.00 | 4.60 | -10.56 | 306.88 | -59.83 | 104.00 | 0.8779 | -248.0 | -227.9 | |
| 0.00 | 1.46 | 0.00 | 1.65 | -14.82 | 304.75 | -61.97 | 108.29 | 0.9006 | -553.0 | -419.9 | |
| 1.12 | 5.94 | 1.16 | 6.12 | -10.05 | 306.62 | -60.10 | 103.39 | 0.8794 | -719.5 | -588.2 | |
| 0.00 | 0.78 | 0.00 | 0.87 | -13.97 | 304.96 | -61.75 | 107.41 | 0.8977 | -366.0 | -441.0 | |
| 0.00 | 0.60 | 0.00 | 0.66 | -12.39 | 305.21 | -61.51 | 105.72 | 0.8936 | -623.0 | -594.1 | |
| 1.46 | 100.34 | 1.56 | 110.06 | -10.65 | 305.74 | -60.97 | 103.89 | 0.8872 | -679.3 | -460.2 | |
| 0.00 | 0.26 | 0.00 | 0.30 | -14.57 | 303.67 | -63.05 | 107.79 | 0.9079 | -421.0 | -434.7 | |
| 2.93 | -26.00 | 3.16 | -26.00 | -10.64 | 305.30 | -61.41 | 103.80 | 0.8906 | -773.9 | 999999 | |
| 1.64 | -26.00 | 1.75 | -26.00 | -10.11 | 305.48 | -61.23 | 103.25 | 0.8885 | -778.7 | 999999 | |
| 1.46 | -26.00 | 1.60 | -26.00 | -10.20 | 304.94 | -61.78 | 103.25 | 0.8928 | -639.2 | 999999 | |
| 0.00 | 2.67 | 0.00 | 3.15 | -13.87 | 303.34 | -63.38 | 106.98 | 0.9092 | -434.0 | -342.6 | |
| 5.43 | -26.00 | 5.99 | -26.00 | -10.46 | 304.66 | -62.06 | 103.49 | 0.8953 | -650.9 | 999999 | |
| 1.29 | -26.00 | 1.41 | -26.00 | -9.87 | 304.86 | -61.86 | 102.87 | 0.8930 | -491.5 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.80 | -12.66 | 303.50 | -63.21 | 105.69 | 0.9065 | -494.0 | -445.4 | |
| 0.00 | 1.03 | 0.00 | 1.16 | -10.94 | 304.22 | -62.50 | 103.94 | 0.8991 | -333.0 | -287.7 | |
| 0.00 | 2.41 | 0.00 | 2.73 | -11.38 | 304.05 | -62.67 | 104.39 | 0.9009 | -434.0 | -344.3 | |
| 1.55 | 2.58 | 1.87 | 3.11 | -14.03 | 302.77 | -63.94 | 107.03 | 0.9133 | -146.7 | -130.6 | |
| 13.26 | -26.00 | 14.92 | -26.00 | -10.46 | 304.06 | -62.65 | 103.38 | 0.8997 | -527.7 | 999999 | |
| 0.00 | 1.81 | 0.00 | 2.20 | -13.52 | 302.47 | -64.25 | 106.43 | 0.9147 | -297.0 | -203.0 | |
| 0.00 | 0.86 | 0.00 | 1.02 | -12.48 | 302.90 | -63.82 | 105.38 | 0.9105 | -206.0 | -158.9 | |
| 0.00 | 1.29 | 0.00 | 1.56 | -12.99 | 302.59 | -64.13 | 105.88 | 0.9133 | -367.0 | -310.3 | |
| 0.00 | 2.76 | 0.00 | 3.17 | -10.20 | 303.36 | -63.36 | 102.97 | 0.9046 | 125.0 | 116.5 | |
| 0.00 | 1.46 | 0.00 | 1.73 | -10.59 | 302.72 | -63.99 | 103.30 | 0.9095 | -219.0 | -180.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
