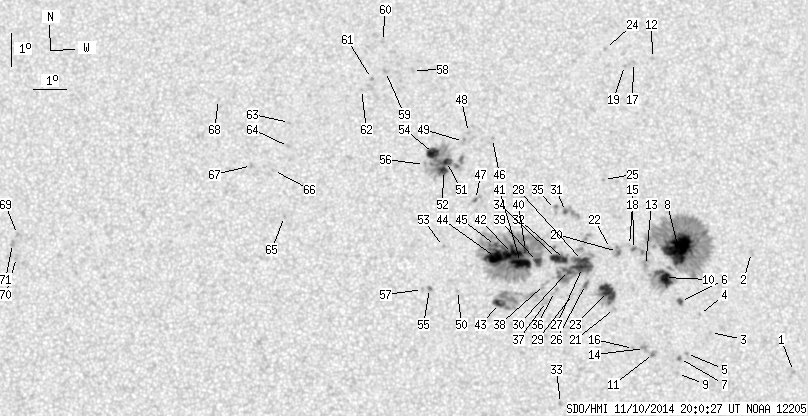

SDO HMI 2014-11-10 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 193.52 | 903.98 | 98.48 | 460.35 | 14.58 | 12.63 | 6.47 | 328.47 | 0.2300 | -446.5 | -244.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 0.97 | 10.90 | 19.31 | 13.14 | 300.70 | 0.2609 | -786.0 | -629.7 | |
| 0.00 | 2.41 | 0.00 | 1.24 | 14.49 | 18.18 | 12.02 | 313.93 | 0.2812 | -702.0 | -588.8 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 12.10 | 16.79 | 10.63 | 310.28 | 0.2375 | -781.0 | -636.6 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 12.64 | 16.47 | 10.31 | 312.87 | 0.2394 | 422.0 | 320.1 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 11.48 | 16.03 | 9.86 | 310.22 | 0.2209 | -895.0 | -689.0 | |
| 1.64 | 3.01 | 0.83 | 1.54 | 13.04 | 15.90 | 9.74 | 315.70 | 0.2371 | -1110.6 | -905.5 | |
| 0.52 | 1.89 | 0.26 | 0.96 | 11.33 | 15.81 | 9.64 | 310.31 | 0.2164 | -1005.3 | -806.8 | |
| 45.39 | 285.08 | 23.26 | 146.09 | 14.64 | 15.91 | 9.75 | 320.16 | 0.2569 | -1397.1 | -417.7 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 10.88 | 15.73 | 9.57 | 308.88 | 0.2106 | -711.0 | -555.3 | |
| 15.42 | -8.00 | 7.86 | -8.00 | 13.77 | 15.44 | 9.28 | 319.19 | 0.2407 | -1253.7 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.70 | 11.49 | 15.01 | 8.85 | 313.27 | 0.2081 | -1003.0 | -870.2 | |
| 0.00 | 1.46 | 0.00 | 0.77 | 20.47 | 15.41 | 9.24 | 332.95 | 0.3325 | -790.0 | -607.1 | |
| 0.00 | 6.03 | 0.00 | 3.07 | 14.14 | 14.87 | 8.70 | 321.96 | 0.2392 | -1146.0 | -889.6 | |
| 0.00 | 3.53 | 0.00 | 1.79 | 11.64 | 14.74 | 8.58 | 314.69 | 0.2065 | -1071.0 | -875.0 | |
| 0.60 | 7.32 | 0.31 | 3.74 | 14.62 | 14.51 | 8.35 | 324.34 | 0.2422 | -1083.4 | -869.3 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 11.64 | 14.41 | 8.25 | 315.83 | 0.2025 | -1007.0 | -879.8 | |
| 0.00 | 1.46 | 0.00 | 0.77 | 20.35 | 14.79 | 8.63 | 334.33 | 0.3262 | -822.0 | -757.0 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 14.75 | 14.39 | 8.23 | 325.03 | 0.2427 | -886.0 | -698.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 20.26 | 14.50 | 8.34 | 334.96 | 0.3228 | -952.0 | -818.2 | |
| 0.00 | 7.49 | 0.00 | 3.82 | 14.57 | 14.02 | 7.85 | 325.83 | 0.2365 | -1172.0 | -901.8 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 12.85 | 13.86 | 7.70 | 321.68 | 0.2117 | -826.0 | -661.3 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 14.66 | 13.80 | 7.64 | 326.78 | 0.2358 | -866.0 | -725.4 | |
| 14.64 | 28.68 | 7.43 | 14.54 | 13.36 | 13.66 | 7.50 | 323.89 | 0.2165 | -1161.0 | -644.9 | |
| 0.00 | 1.46 | 0.00 | 0.77 | 20.79 | 13.92 | 7.76 | 337.19 | 0.3269 | -866.0 | -591.4 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 16.76 | 13.67 | 7.50 | 331.69 | 0.2649 | -799.0 | -599.0 | |
| 1.12 | 360.87 | 0.57 | 182.87 | 13.58 | 12.99 | 6.83 | 326.95 | 0.2130 | -997.7 | -171.6 | |
| 12.66 | -26.00 | 6.43 | -26.00 | 14.09 | 12.92 | 6.76 | 328.55 | 0.2197 | -1192.4 | 999999 | |
| 7.06 | -26.00 | 3.59 | -26.00 | 14.31 | 12.93 | 6.76 | 329.04 | 0.2228 | -995.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 13.28 | 12.59 | 6.42 | 327.75 | 0.2050 | 233.0 | 135.1 | |
| 4.13 | -26.00 | 2.10 | -26.00 | 14.01 | 12.48 | 6.32 | 329.99 | 0.2146 | -1257.6 | 999999 | |
| 0.78 | 9.13 | 0.40 | 4.66 | 15.79 | 12.45 | 6.28 | 333.96 | 0.2410 | -1178.7 | -911.8 | |
| 3.36 | -26.00 | 1.70 | -26.00 | 14.34 | 12.37 | 6.21 | 331.21 | 0.2186 | -1225.0 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.78 | 10.02 | 12.14 | 5.98 | 318.54 | 0.1557 | -867.0 | -704.3 | |
| 7.15 | -26.00 | 3.63 | -26.00 | 14.37 | 12.13 | 5.96 | 332.24 | 0.2171 | -1182.5 | 999999 | |
| 0.00 | 4.31 | 0.00 | 2.20 | 15.86 | 12.14 | 5.98 | 335.18 | 0.2397 | -811.0 | -670.8 | |
| 0.00 | 3.45 | 0.00 | 1.74 | 13.38 | 12.04 | 5.88 | 330.24 | 0.2015 | -499.0 | -540.3 | |
| 0.00 | 5.68 | 0.00 | 2.87 | 13.08 | 11.79 | 5.62 | 330.54 | 0.1950 | 76.0 | 121.9 | |
| 0.00 | 5.00 | 0.00 | 2.53 | 13.59 | 11.74 | 5.57 | 332.03 | 0.2022 | -422.0 | -359.8 | |
| 4.56 | -26.00 | 2.31 | -26.00 | 14.29 | 11.54 | 5.38 | 334.42 | 0.2113 | -1064.0 | 999999 | |
| 2.58 | -26.00 | 1.31 | -26.00 | 14.62 | 11.18 | 5.02 | 336.59 | 0.2139 | 894.6 | 999999 | |
| 15.24 | -26.00 | 7.72 | -26.00 | 14.26 | 11.02 | 4.85 | 336.57 | 0.2071 | -1171.2 | 999999 | |
| 15.16 | -26.00 | 7.68 | -26.00 | 14.53 | 10.78 | 4.61 | 338.12 | 0.2099 | 1073.5 | 999999 | |
| 6.03 | 43.06 | 3.04 | 21.71 | 13.03 | 10.35 | 4.19 | 337.06 | 0.1832 | 1044.6 | 28.1 | |
| 16.28 | -26.00 | 8.24 | -26.00 | 14.41 | 10.25 | 4.09 | 340.20 | 0.2048 | 1137.7 | 999999 | |
| 1.38 | -26.00 | 0.70 | -26.00 | 14.78 | 10.26 | 4.10 | 340.77 | 0.2107 | 876.2 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 18.04 | 10.24 | 4.08 | 345.07 | 0.2635 | 740.0 | 600.3 | |
| 0.34 | 3.27 | 0.18 | 1.67 | 16.18 | 9.67 | 3.51 | 345.17 | 0.2305 | -950.2 | -778.6 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 18.23 | 9.49 | 3.33 | 347.86 | 0.2636 | 953.0 | 671.2 | |
| 0.00 | 2.76 | 0.00 | 1.41 | 17.95 | 9.33 | 3.17 | 348.21 | 0.2585 | 853.0 | 766.7 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 13.42 | 9.07 | 2.91 | 344.22 | 0.1824 | 841.0 | 591.9 | |
| 3.36 | 65.80 | 1.72 | 33.62 | 17.34 | 8.79 | 2.63 | 349.73 | 0.2466 | 1017.3 | 196.7 | |
| 5.08 | -51.00 | 2.59 | -51.00 | 17.06 | 8.69 | 2.53 | 349.90 | 0.2417 | 1205.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 14.75 | 8.66 | 2.50 | 347.96 | 0.2029 | 912.0 | 729.9 | |
| 8.70 | -51.00 | 4.45 | -51.00 | 17.59 | 8.39 | 2.23 | 351.43 | 0.2496 | -993.9 | 999999 | |
| 0.34 | 1.64 | 0.17 | 0.82 | 13.49 | 8.22 | 2.05 | 348.78 | 0.1800 | 941.8 | 822.2 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 17.25 | 8.10 | 1.94 | 352.32 | 0.2433 | -922.0 | -790.3 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 13.46 | 8.00 | 1.84 | 349.89 | 0.1789 | 856.0 | 765.3 | |
| 0.00 | 1.98 | 0.00 | 1.03 | 20.14 | 7.76 | 1.60 | 354.81 | 0.2912 | 845.0 | 706.4 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 20.12 | 6.91 | 0.75 | 357.57 | 0.2898 | 1011.0 | 880.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 21.05 | 6.82 | 0.66 | 357.98 | 0.3053 | 756.0 | 600.9 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 19.90 | 6.47 | 0.30 | 359.00 | 0.2859 | 1026.0 | 830.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 19.56 | 6.15 | -0.01 | 0.04 | 0.2802 | 865.0 | 631.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 18.54 | 3.89 | -2.27 | 8.15 | 0.2657 | 875.0 | 655.2 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 17.81 | 3.87 | -2.29 | 8.67 | 0.2534 | 991.0 | 740.0 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 15.67 | 3.77 | -2.39 | 10.67 | 0.2179 | 908.0 | 719.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 17.07 | 3.41 | -2.75 | 10.95 | 0.2425 | 809.0 | 640.1 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 17.22 | 2.73 | -3.43 | 13.43 | 0.2475 | 1066.0 | 789.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 19.25 | 1.65 | -4.51 | 15.18 | 0.2850 | 756.0 | 553.4 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 15.08 | 355.51 | -10.65 | 41.17 | 0.2723 | 902.0 | 768.6 | |
| 0.00 | 2.76 | 0.00 | 1.41 | 14.38 | 355.52 | -10.65 | 42.97 | 0.2638 | 824.0 | 616.2 | |
| 0.00 | 2.76 | 0.00 | 1.42 | 14.81 | 355.37 | -10.79 | 42.24 | 0.2705 | 890.0 | 794.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
