SDO HMI 2014-11-10 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.51 | 0.00 | 13.10 | -23.76 | 8.95 | 2.79 | 185.56 | 0.4601 | 686.3 | 626.9 | |
|
previous
or next observation for the same group /

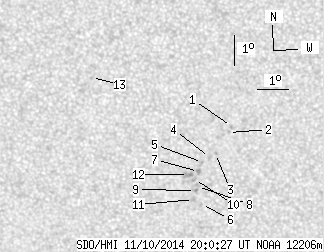

back to the solar disc SDO HMI 2014-11-10 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.71 | -22.32 | 10.04 | 3.88 | 188.22 | 0.4397 | 804.0 | 623.1 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -22.52 | 9.95 | 3.79 | 187.97 | 0.4425 | 785.0 | 610.2 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -23.21 | 9.55 | 3.39 | 186.92 | 0.4525 | 842.0 | 667.5 | |
| 0.00 | 1.89 | 0.00 | 1.05 | -23.34 | 9.36 | 3.20 | 186.50 | 0.4542 | 719.0 | 506.1 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -23.51 | 9.14 | 2.97 | 186.01 | 0.4564 | 838.0 | 668.6 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -24.92 | 9.14 | 2.97 | 185.67 | 0.4780 | 675.0 | 466.9 | |
| 0.00 | 2.07 | 0.00 | 1.15 | -23.81 | 9.01 | 2.85 | 185.69 | 0.4608 | 889.0 | 808.5 | |
| 0.00 | 2.33 | 0.00 | 1.30 | -24.31 | 8.99 | 2.83 | 185.53 | 0.4685 | 707.0 | 546.7 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -24.44 | 8.93 | 2.77 | 185.38 | 0.4705 | 834.0 | 683.5 | |
| 0.00 | 1.89 | 0.00 | 1.06 | -24.08 | 8.89 | 2.73 | 185.38 | 0.4648 | 768.0 | 714.3 | |
| 0.00 | 2.67 | 0.00 | 1.50 | -24.75 | 8.87 | 2.71 | 185.20 | 0.4751 | 671.0 | 583.7 | |
| 0.00 | 5.17 | 0.00 | 2.88 | -23.91 | 8.69 | 2.53 | 185.03 | 0.4619 | 890.0 | 807.4 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -20.70 | 5.56 | -0.60 | 178.61 | 0.4097 | -500.0 | -470.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
