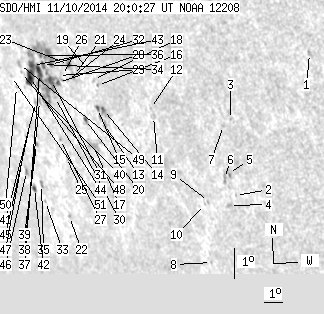

SDO HMI 2014-11-10 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.53 | 181.91 | 39.34 | 190.29 | -11.12 | 305.73 | -60.43 | 104.56 | 0.8826 | -260.9 | -248.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.50 | 0.00 | 1.87 | -9.14 | 319.03 | -47.14 | 105.30 | 0.7526 | 499.0 | 391.0 | |
| 0.00 | 0.52 | 0.00 | 0.44 | -13.69 | 314.47 | -51.69 | 109.61 | 0.8116 | 547.0 | 481.5 | |
| 0.00 | 0.78 | 0.00 | 0.64 | -11.33 | 314.89 | -51.27 | 106.89 | 0.8016 | 556.0 | 477.3 | |
| 0.00 | 2.41 | 0.00 | 2.06 | -14.02 | 314.07 | -52.10 | 109.88 | 0.8163 | 696.0 | 443.7 | |
| 0.00 | 2.50 | 0.00 | 2.10 | -13.02 | 314.33 | -51.83 | 108.76 | 0.8112 | 742.0 | 544.4 | |
| 0.00 | 3.70 | 0.00 | 3.14 | -13.18 | 314.08 | -52.08 | 108.89 | 0.8140 | 640.0 | 502.3 | |
| 0.00 | 1.29 | 0.00 | 1.08 | -11.53 | 314.50 | -51.66 | 107.02 | 0.8060 | 465.0 | 362.9 | |
| 0.00 | 0.69 | 0.00 | 0.62 | -15.87 | 312.48 | -53.68 | 111.57 | 0.8356 | 296.0 | 312.1 | |
| 0.00 | 1.12 | 0.00 | 0.98 | -13.94 | 313.03 | -53.14 | 109.49 | 0.8258 | 542.0 | 561.8 | |
| 0.00 | 0.52 | 0.00 | 0.45 | -14.05 | 312.79 | -53.38 | 109.54 | 0.8283 | 317.0 | 303.0 | |
| 0.00 | 2.15 | 0.00 | 1.95 | -11.43 | 310.94 | -55.22 | 105.99 | 0.8396 | 486.0 | 312.6 | |
| 0.00 | 0.86 | 0.00 | 0.78 | -11.19 | 310.85 | -55.31 | 105.68 | 0.8399 | 423.0 | 373.4 | |
| 0.00 | 2.15 | 0.00 | 2.11 | -11.81 | 308.10 | -58.06 | 105.78 | 0.8652 | 315.0 | 300.9 | |
| 1.38 | 10.34 | 1.35 | 10.11 | -11.35 | 308.20 | -57.96 | 105.28 | 0.8636 | 703.5 | 409.2 | |
| 0.95 | -14.00 | 0.93 | -14.00 | -11.34 | 307.86 | -58.31 | 105.19 | 0.8665 | 464.0 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.84 | -10.62 | 308.08 | -58.08 | 104.42 | 0.8634 | 473.0 | 443.5 | |
| 0.00 | 7.58 | 0.00 | 7.66 | -12.50 | 307.21 | -58.95 | 106.37 | 0.8738 | -409.0 | -313.2 | |
| 0.00 | 1.12 | 0.00 | 1.10 | -10.45 | 307.91 | -58.26 | 104.19 | 0.8647 | 336.0 | 262.3 | |
| 0.00 | 1.21 | 0.00 | 1.19 | -10.12 | 307.71 | -58.45 | 103.78 | 0.8658 | 290.0 | 202.4 | |
| 1.12 | 2.93 | 1.13 | 2.96 | -11.72 | 307.02 | -59.14 | 105.44 | 0.8740 | 297.9 | 202.0 | |
| 0.00 | 2.41 | 0.00 | 2.44 | -10.39 | 306.75 | -59.41 | 103.89 | 0.8742 | -383.0 | -362.4 | |
| 0.00 | 1.38 | 0.00 | 1.53 | -14.83 | 304.72 | -61.44 | 108.41 | 0.8967 | -544.0 | -456.0 | |
| 1.55 | 3.45 | 1.58 | 3.50 | -10.06 | 306.55 | -59.61 | 103.48 | 0.8754 | -671.9 | -553.5 | |
| 0.00 | 1.03 | 0.00 | 1.06 | -10.56 | 306.33 | -59.83 | 104.00 | 0.8779 | -717.0 | -648.5 | |
| 0.00 | 1.55 | 0.00 | 1.66 | -12.97 | 305.38 | -60.79 | 106.50 | 0.8890 | -535.0 | -467.4 | |
| 0.00 | 1.21 | 0.00 | 1.25 | -10.42 | 306.07 | -60.09 | 103.80 | 0.8798 | -281.0 | -346.4 | |
| 0.00 | 1.12 | 0.00 | 1.20 | -12.42 | 305.22 | -60.94 | 105.86 | 0.8894 | -447.0 | -466.0 | |
| 1.21 | 99.30 | 1.26 | 106.82 | -10.65 | 305.75 | -60.41 | 104.00 | 0.8827 | -720.4 | -468.3 | |
| 0.00 | 0.95 | 0.00 | 0.99 | -10.43 | 305.82 | -60.34 | 103.77 | 0.8818 | -315.0 | -346.1 | |
| 0.00 | 1.12 | 0.00 | 1.19 | -11.13 | 305.40 | -60.76 | 104.46 | 0.8861 | -525.0 | -501.8 | |
| 3.96 | -28.00 | 4.20 | -28.00 | -10.61 | 305.33 | -60.83 | 103.87 | 0.8860 | -761.8 | 999999 | |
| 1.64 | -28.00 | 1.72 | -28.00 | -10.12 | 305.43 | -60.73 | 103.34 | 0.8845 | -786.7 | 999999 | |
| 0.00 | 1.03 | 0.00 | 1.20 | -14.44 | 303.33 | -62.84 | 107.69 | 0.9062 | -218.0 | -191.0 | |
| 1.89 | -28.00 | 2.03 | -28.00 | -10.15 | 304.92 | -61.24 | 103.28 | 0.8886 | -598.3 | 999999 | |
| 0.00 | 2.58 | 0.00 | 2.99 | -13.91 | 303.32 | -62.84 | 107.12 | 0.9055 | -542.0 | -369.7 | |
| 0.78 | -28.00 | 0.83 | -28.00 | -9.87 | 304.88 | -61.28 | 102.97 | 0.8885 | -530.1 | 999999 | |
| 7.32 | -28.00 | 7.93 | -28.00 | -10.44 | 304.63 | -61.53 | 103.55 | 0.8912 | -648.8 | 999999 | |
| 0.00 | 2.24 | 0.00 | 2.46 | -11.31 | 304.32 | -61.85 | 104.46 | 0.8947 | -593.0 | -557.2 | |
| 0.00 | 1.64 | 0.00 | 1.86 | -12.66 | 303.56 | -62.60 | 105.81 | 0.9021 | -518.0 | -453.5 | |
| 0.00 | 0.78 | 0.00 | 0.85 | -10.97 | 304.25 | -61.92 | 104.08 | 0.8948 | -400.0 | -347.7 | |
| 0.00 | 2.15 | 0.00 | 2.39 | -11.35 | 304.04 | -62.12 | 104.45 | 0.8969 | -419.0 | -364.8 | |
| 1.46 | 2.84 | 1.73 | 3.36 | -14.06 | 302.76 | -63.40 | 107.17 | 0.9096 | -126.1 | -131.2 | |
| 3.88 | -28.00 | 4.25 | -28.00 | -10.21 | 304.26 | -61.90 | 103.23 | 0.8937 | -556.1 | 999999 | |
| 9.39 | -28.00 | 10.40 | -28.00 | -10.59 | 304.00 | -62.17 | 103.61 | 0.8962 | -510.6 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.77 | -12.12 | 303.33 | -62.83 | 105.17 | 0.9031 | -150.0 | -139.2 | |
| 0.00 | 2.84 | 0.00 | 3.38 | -13.55 | 302.46 | -63.70 | 106.57 | 0.9110 | -234.0 | -166.9 | |
| 0.00 | 1.03 | 0.00 | 1.22 | -12.96 | 302.54 | -63.62 | 105.94 | 0.9097 | -451.0 | -352.5 | |
| 0.00 | 0.86 | 0.00 | 0.97 | -10.47 | 303.45 | -62.71 | 103.38 | 0.9002 | -232.0 | -191.1 | |
| 0.00 | 2.41 | 0.00 | 2.72 | -10.23 | 303.40 | -62.76 | 103.10 | 0.9002 | 99.0 | 56.4 | |
| 0.00 | 0.26 | 0.00 | 0.30 | -10.95 | 302.93 | -63.23 | 103.82 | 0.9045 | -260.0 | -283.3 | |
| 0.00 | 0.95 | 0.00 | 1.10 | -10.63 | 302.71 | -63.45 | 103.43 | 0.9057 | -235.0 | -186.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
