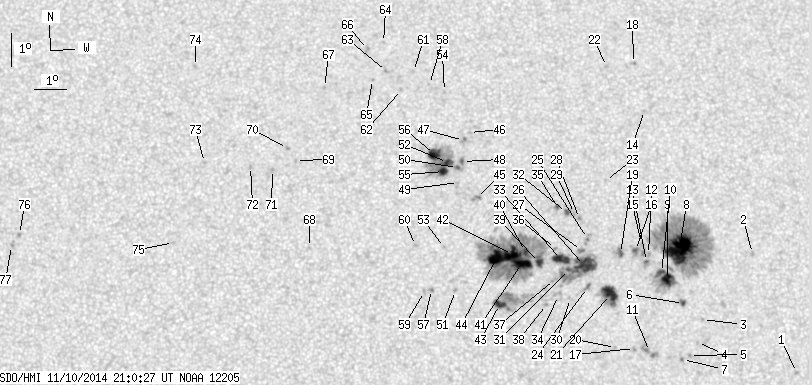

SDO HMI 2014-11-10 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 196.91 | 852.73 | 100.30 | 434.87 | 14.66 | 12.70 | 7.09 | 328.95 | 0.2364 | -374.3 | -239.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.80 | 10.89 | 19.37 | 13.76 | 299.58 | 0.2699 | -846.0 | -663.6 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 14.48 | 18.19 | 12.58 | 312.65 | 0.2881 | -767.0 | -641.9 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 12.52 | 16.53 | 10.92 | 310.88 | 0.2458 | 425.0 | 310.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 11.83 | 16.35 | 10.74 | 309.10 | 0.2361 | -782.0 | -605.6 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 11.44 | 16.09 | 10.48 | 308.45 | 0.2286 | -865.0 | -704.4 | |
| 1.46 | 3.45 | 0.75 | 1.76 | 13.00 | 15.96 | 10.36 | 313.88 | 0.2441 | -1086.5 | -877.2 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 11.32 | 15.87 | 10.26 | 308.61 | 0.2245 | -1032.0 | -884.5 | |
| 48.84 | 250.64 | 25.07 | 128.78 | 14.66 | 15.92 | 10.31 | 318.68 | 0.2634 | -1364.1 | -358.6 | |
| 8.79 | 43.75 | 4.49 | 22.35 | 13.73 | 15.50 | 9.89 | 317.30 | 0.2472 | -1300.2 | -646.3 | |
| 2.41 | -9.00 | 1.23 | -9.00 | 13.94 | 15.32 | 9.72 | 318.40 | 0.2478 | -1109.1 | 999999 | |
| 0.00 | 8.87 | 0.00 | 4.50 | 11.57 | 14.86 | 9.25 | 312.35 | 0.2141 | -725.0 | -881.5 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 14.49 | 14.94 | 9.34 | 320.98 | 0.2506 | -1037.0 | -814.1 | |
| 0.43 | 3.96 | 0.22 | 2.02 | 14.28 | 14.87 | 9.26 | 320.64 | 0.2471 | -1168.2 | -958.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 18.89 | 15.04 | 9.43 | 329.98 | 0.3114 | -778.0 | -658.2 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 14.83 | 14.74 | 9.13 | 322.44 | 0.2528 | -228.0 | -247.7 | |
| 1.12 | 8.96 | 0.57 | 4.58 | 14.62 | 14.55 | 8.94 | 322.50 | 0.2481 | -1074.3 | -762.3 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 11.67 | 14.40 | 8.80 | 314.11 | 0.2095 | -891.0 | -784.3 | |
| 0.00 | 1.98 | 0.00 | 1.04 | 20.34 | 14.78 | 9.17 | 332.96 | 0.3302 | -817.0 | -706.6 | |
| 1.81 | 5.94 | 0.92 | 3.03 | 14.53 | 14.08 | 8.47 | 323.74 | 0.2421 | -1134.2 | -876.4 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 11.70 | 13.82 | 8.21 | 316.16 | 0.2029 | -823.0 | -660.1 | |
| 15.07 | 28.68 | 7.66 | 14.56 | 13.30 | 13.72 | 8.11 | 321.57 | 0.2220 | -1161.2 | -664.5 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 20.26 | 13.91 | 8.30 | 335.06 | 0.3226 | -816.0 | -635.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 16.75 | 13.70 | 8.10 | 329.85 | 0.2697 | -592.0 | -469.7 | |
| 0.00 | 3.88 | 0.00 | 1.97 | 13.51 | 13.02 | 7.41 | 324.64 | 0.2177 | -1051.0 | -772.6 | |
| 0.00 | 5.08 | 0.00 | 2.59 | 15.00 | 13.07 | 7.46 | 328.17 | 0.2390 | -1079.0 | -743.7 | |
| 21.88 | 74.42 | 11.12 | 37.80 | 14.18 | 12.95 | 7.34 | 326.63 | 0.2263 | -1118.4 | -743.6 | |
| 0.00 | 2.93 | 0.00 | 1.49 | 14.63 | 12.87 | 7.27 | 328.01 | 0.2321 | -326.0 | -193.3 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 15.60 | 12.85 | 7.24 | 330.27 | 0.2458 | -1107.0 | -920.4 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 15.76 | 12.70 | 7.09 | 331.09 | 0.2468 | -943.0 | -796.8 | |
| 0.00 | 1.89 | 0.00 | 0.96 | 13.19 | 12.49 | 6.88 | 325.71 | 0.2080 | 418.0 | 423.7 | |
| 1.38 | -26.00 | 0.70 | -26.00 | 14.06 | 12.49 | 6.88 | 328.03 | 0.2204 | -1245.3 | 999999 | |
| 1.29 | 2.58 | 0.66 | 1.32 | 15.79 | 12.45 | 6.84 | 332.00 | 0.2453 | -1106.4 | -989.9 | |
| 10.59 | -26.00 | 5.38 | -26.00 | 14.37 | 12.25 | 6.64 | 329.65 | 0.2227 | -1189.8 | 999999 | |
| 0.00 | 5.60 | 0.00 | 2.83 | 13.28 | 12.12 | 6.51 | 327.40 | 0.2059 | -186.0 | -417.6 | |
| 0.69 | 2.07 | 0.35 | 1.06 | 15.97 | 12.18 | 6.57 | 333.31 | 0.2459 | -873.0 | -671.7 | |
| 0.00 | 1.21 | 0.00 | 0.61 | 14.70 | 12.07 | 6.46 | 331.06 | 0.2261 | 559.0 | 353.9 | |
| 0.00 | 2.76 | 0.00 | 1.40 | 13.76 | 12.01 | 6.41 | 329.08 | 0.2119 | -899.0 | -728.1 | |
| 0.00 | 1.46 | 0.00 | 0.74 | 13.01 | 11.75 | 6.14 | 328.19 | 0.1986 | 758.0 | 566.4 | |
| 4.05 | 217.82 | 2.05 | 110.38 | 14.28 | 11.57 | 5.96 | 332.07 | 0.2157 | -1107.6 | 6.9 | |
| 3.36 | -39.00 | 1.70 | -39.00 | 14.62 | 11.15 | 5.54 | 334.47 | 0.2176 | 957.1 | 999999 | |
| 15.16 | -39.00 | 7.68 | -39.00 | 14.25 | 11.01 | 5.40 | 334.25 | 0.2111 | -1196.8 | 999999 | |
| 16.97 | -39.00 | 8.60 | -39.00 | 14.53 | 10.74 | 5.13 | 335.93 | 0.2133 | 1003.5 | 999999 | |
| 5.86 | 46.42 | 2.95 | 23.42 | 13.02 | 10.31 | 4.70 | 334.57 | 0.1869 | 1078.4 | 24.9 | |
| 16.62 | -39.00 | 8.42 | -39.00 | 14.44 | 10.25 | 4.64 | 337.84 | 0.2086 | 1121.9 | 999999 | |
| 0.00 | 4.31 | 0.00 | 2.19 | 16.23 | 9.67 | 4.06 | 343.03 | 0.2341 | -856.0 | -828.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 18.25 | 9.50 | 3.89 | 345.93 | 0.2663 | 804.0 | 581.9 | |
| 0.00 | 2.67 | 0.00 | 1.37 | 18.01 | 9.31 | 3.70 | 346.37 | 0.2615 | 880.0 | 791.2 | |
| 0.00 | 2.58 | 0.00 | 1.32 | 17.36 | 9.26 | 3.65 | 345.90 | 0.2507 | 1054.0 | 885.0 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 16.72 | 9.12 | 3.52 | 345.75 | 0.2396 | 706.0 | 540.5 | |
| 0.86 | 3.36 | 0.44 | 1.72 | 17.18 | 9.10 | 3.49 | 346.31 | 0.2471 | 1093.7 | 800.5 | |
| 0.00 | 1.64 | 0.00 | 0.82 | 13.45 | 8.97 | 3.37 | 341.96 | 0.1852 | 900.0 | 681.7 | |
| 3.36 | 57.79 | 1.72 | 29.55 | 17.34 | 8.79 | 3.18 | 347.62 | 0.2485 | 1040.0 | 32.3 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 14.75 | 8.66 | 3.05 | 345.41 | 0.2051 | 741.0 | 649.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 19.52 | 8.74 | 3.13 | 349.51 | 0.2844 | 744.0 | 599.1 | |
| 5.00 | -52.00 | 2.55 | -52.00 | 17.06 | 8.66 | 3.06 | 347.86 | 0.2434 | 1186.0 | 999999 | |
| 9.91 | -52.00 | 5.07 | -52.00 | 17.58 | 8.39 | 2.78 | 349.33 | 0.2512 | -959.5 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.00 | 13.48 | 8.24 | 2.63 | 345.75 | 0.1822 | 989.0 | 874.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 19.74 | 8.27 | 2.67 | 351.18 | 0.2867 | 684.0 | 534.3 | |
| 0.00 | 1.89 | 0.00 | 0.95 | 13.42 | 8.03 | 2.42 | 346.79 | 0.1804 | 903.0 | 675.1 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 14.81 | 7.77 | 2.16 | 349.61 | 0.2029 | -738.0 | -670.2 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 20.14 | 7.78 | 2.17 | 352.99 | 0.2922 | 884.0 | 740.1 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 19.59 | 7.39 | 1.78 | 354.02 | 0.2822 | 833.0 | 715.6 | |
| 0.00 | 1.89 | 0.00 | 0.98 | 20.14 | 6.92 | 1.31 | 355.74 | 0.2909 | 1013.0 | 794.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 21.05 | 6.84 | 1.23 | 356.24 | 0.3058 | 741.0 | 579.3 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 19.90 | 6.48 | 0.87 | 357.13 | 0.2863 | 996.0 | 784.1 | |
| 0.00 | 2.58 | 0.00 | 1.34 | 20.83 | 6.33 | 0.72 | 357.77 | 0.3017 | 793.0 | 659.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 19.65 | 4.96 | -0.65 | 2.17 | 0.2820 | 794.0 | 636.3 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 14.76 | 4.51 | -1.09 | 5.34 | 0.1994 | -772.0 | -551.6 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 17.41 | 4.07 | -1.54 | 6.04 | 0.2452 | 861.0 | 676.0 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 17.77 | 3.82 | -1.79 | 6.83 | 0.2519 | 1004.0 | 731.4 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 17.13 | 3.35 | -2.25 | 8.97 | 0.2421 | 868.0 | 848.8 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 17.22 | 2.67 | -2.94 | 11.55 | 0.2457 | 927.0 | 740.9 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 17.34 | 1.24 | -4.37 | 16.76 | 0.2536 | 856.0 | 641.1 | |
| 0.00 | 1.89 | 0.00 | 0.98 | 20.30 | 0.88 | -4.73 | 14.87 | 0.3029 | -930.0 | -668.2 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 14.90 | 0.33 | -5.28 | 23.93 | 0.2202 | 916.0 | 703.4 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 15.11 | 355.55 | -10.06 | 39.50 | 0.2663 | 891.0 | 752.5 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 14.78 | 355.32 | -10.29 | 40.98 | 0.2647 | 922.0 | 757.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
