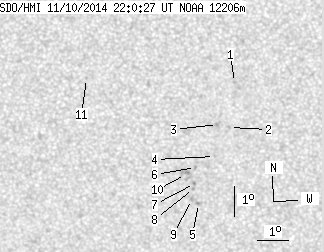

SDO HMI 2014-11-10 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.06 | 0.00 | 12.27 | -23.54 | 8.93 | 3.87 | 187.80 | 0.4586 | 621.4 | 617.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.56 | -20.93 | 10.17 | 5.12 | 191.46 | 0.4212 | 827.0 | 586.5 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -22.40 | 10.06 | 5.01 | 190.52 | 0.4437 | 771.0 | 618.2 | |
| 0.00 | 2.58 | 0.00 | 1.42 | -22.30 | 9.67 | 4.62 | 189.76 | 0.4410 | 845.0 | 632.6 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -23.36 | 9.61 | 4.55 | 189.21 | 0.4572 | 688.0 | 604.2 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -24.93 | 9.14 | 4.08 | 187.76 | 0.4801 | 637.0 | 548.8 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -23.72 | 9.01 | 3.95 | 187.89 | 0.4614 | 900.0 | 764.5 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -24.26 | 8.99 | 3.93 | 187.68 | 0.4695 | 793.0 | 656.7 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -24.43 | 8.96 | 3.90 | 187.58 | 0.4720 | 797.0 | 681.2 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -24.80 | 8.91 | 3.85 | 187.36 | 0.4776 | 756.0 | 663.2 | |
| 0.00 | 9.13 | 0.00 | 5.10 | -23.96 | 8.69 | 3.63 | 187.19 | 0.4643 | 641.0 | 706.6 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -20.78 | 5.46 | 0.41 | 180.93 | 0.4107 | -820.0 | -558.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
