SDO HMI 2014-11-10 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 185.49 | 816.66 | 94.72 | 417.54 | 14.64 | 12.77 | 8.26 | 325.27 | 0.2462 | -447.7 | -272.9 | |
|
previous
or next observation for the same group /

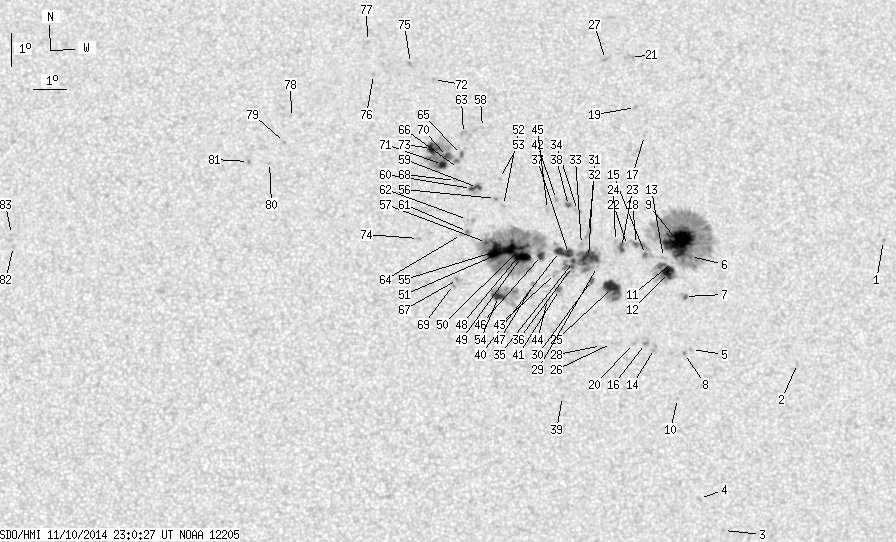

back to the solar disc SDO HMI 2014-11-10 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.64 | 14.60 | 22.41 | 17.90 | 303.63 | 0.3588 | -716.0 | -609.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 10.95 | 19.43 | 14.92 | 297.96 | 0.2875 | -761.0 | -501.8 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 6.01 | 16.95 | 12.45 | 282.56 | 0.2206 | -738.0 | -580.2 | |
| 0.00 | 2.15 | 0.00 | 1.09 | 6.97 | 16.24 | 11.74 | 287.67 | 0.2129 | -765.0 | -523.1 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 11.42 | 16.15 | 11.65 | 305.56 | 0.2444 | -822.0 | -573.5 | |
| 0.26 | 229.40 | 0.13 | 118.31 | 14.21 | 16.26 | 11.75 | 313.85 | 0.2750 | -911.3 | -386.1 | |
| 0.00 | 3.27 | 0.00 | 1.68 | 13.01 | 16.01 | 11.50 | 311.00 | 0.2587 | -1160.0 | -950.6 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 11.30 | 15.93 | 11.43 | 305.66 | 0.2402 | -882.0 | -777.9 | |
| 46.34 | -6.00 | 23.88 | -6.00 | 14.67 | 15.91 | 11.40 | 315.91 | 0.2761 | -1340.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 9.96 | 15.66 | 11.16 | 301.35 | 0.2242 | -620.0 | -469.9 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 14.04 | 15.69 | 11.18 | 314.76 | 0.2662 | -691.0 | -522.2 | |
| 9.73 | 32.48 | 4.99 | 16.65 | 13.74 | 15.55 | 11.04 | 314.27 | 0.2610 | -1251.5 | -789.1 | |
| 0.00 | 2.33 | 0.00 | 1.19 | 14.19 | 15.41 | 10.91 | 315.87 | 0.2647 | -961.0 | -681.6 | |
| 0.00 | 4.05 | 0.00 | 2.06 | 11.46 | 15.01 | 10.51 | 308.47 | 0.2294 | -819.0 | -632.0 | |
| 0.60 | 16.71 | 0.31 | 8.57 | 14.29 | 14.86 | 10.35 | 317.60 | 0.2595 | -1219.4 | -857.2 | |
| 0.00 | 2.50 | 0.00 | 1.27 | 11.61 | 14.74 | 10.24 | 309.72 | 0.2274 | -1106.0 | -878.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 17.91 | 15.02 | 10.52 | 325.46 | 0.3078 | -762.0 | -520.2 | |
| 0.95 | -15.00 | 0.49 | -15.00 | 14.60 | 14.59 | 10.09 | 319.13 | 0.2602 | -1046.0 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 18.78 | 14.79 | 10.29 | 327.64 | 0.3174 | -834.0 | -716.4 | |
| 0.00 | 1.90 | 0.00 | 0.96 | 11.62 | 14.37 | 9.87 | 310.75 | 0.2226 | -974.0 | -686.2 | |
| 0.00 | 5.00 | 0.00 | 2.63 | 20.32 | 14.73 | 10.23 | 330.37 | 0.3383 | -530.0 | -696.9 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 14.57 | 14.31 | 9.81 | 319.85 | 0.2568 | -128.0 | -170.2 | |
| 2.33 | 7.15 | 1.19 | 3.66 | 14.51 | 14.12 | 9.62 | 320.24 | 0.2540 | -1079.4 | -816.5 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 14.70 | 13.94 | 9.44 | 321.23 | 0.2545 | -764.0 | -676.1 | |
| 15.07 | 28.60 | 7.68 | 14.57 | 13.31 | 13.79 | 9.29 | 317.87 | 0.2352 | -1149.9 | -720.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 11.62 | 13.70 | 9.19 | 312.75 | 0.2141 | -705.0 | -501.9 | |
| 0.00 | 2.24 | 0.00 | 1.18 | 20.27 | 13.93 | 9.42 | 332.24 | 0.3312 | -833.0 | -639.7 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 11.57 | 13.39 | 8.88 | 313.51 | 0.2096 | -342.0 | -450.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 13.95 | 13.35 | 8.85 | 321.03 | 0.2385 | -776.0 | -665.0 | |
| 1.38 | 4.13 | 0.70 | 2.10 | 13.52 | 13.15 | 8.65 | 320.49 | 0.2308 | -1004.4 | -697.4 | |
| 17.92 | 73.91 | 9.14 | 37.66 | 14.22 | 13.09 | 8.58 | 322.60 | 0.2392 | -1134.0 | -708.0 | |
| 0.00 | 4.05 | 0.00 | 2.07 | 14.98 | 13.12 | 8.61 | 324.41 | 0.2497 | -973.0 | -758.9 | |
| 0.00 | 2.50 | 0.00 | 1.28 | 14.61 | 12.88 | 8.38 | 324.26 | 0.2425 | 186.0 | 16.8 | |
| 0.00 | 2.93 | 0.00 | 1.50 | 15.65 | 12.80 | 8.30 | 326.95 | 0.2560 | -479.0 | -755.2 | |
| 1.64 | -31.00 | 0.83 | -31.00 | 14.10 | 12.62 | 8.11 | 323.82 | 0.2329 | -1269.7 | 999999 | |
| 0.95 | -31.00 | 0.48 | -31.00 | 13.95 | 12.58 | 8.08 | 323.54 | 0.2305 | -1132.1 | 999999 | |
| 4.74 | -31.00 | 2.41 | -31.00 | 14.35 | 12.47 | 7.97 | 324.93 | 0.2348 | -1172.0 | 999999 | |
| 1.21 | 3.88 | 0.62 | 1.99 | 15.80 | 12.53 | 8.02 | 328.14 | 0.2556 | -1126.4 | -872.2 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 10.05 | 12.15 | 7.65 | 311.81 | 0.1767 | -816.0 | -640.2 | |
| 5.51 | -31.00 | 2.81 | -31.00 | 14.41 | 12.20 | 7.69 | 326.02 | 0.2330 | -1145.2 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.66 | 13.26 | 12.16 | 7.65 | 323.11 | 0.2169 | -1132.0 | -926.8 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 15.99 | 12.16 | 7.66 | 329.70 | 0.2551 | -929.0 | -738.1 | |
| 0.00 | 3.36 | 0.00 | 1.71 | 13.75 | 12.05 | 7.54 | 324.82 | 0.2224 | -794.0 | -723.5 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 12.96 | 11.78 | 7.27 | 323.62 | 0.2090 | 201.0 | 222.3 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 15.69 | 11.87 | 7.37 | 330.03 | 0.2483 | -744.0 | -516.4 | |
| 3.79 | 218.72 | 1.93 | 111.05 | 14.29 | 11.64 | 7.13 | 327.70 | 0.2261 | -1071.0 | 5.4 | |
| 0.00 | 2.33 | 0.00 | 1.18 | 13.42 | 11.36 | 6.86 | 326.47 | 0.2112 | -870.0 | -566.8 | |
| 1.90 | -46.00 | 0.96 | -46.00 | 14.57 | 11.18 | 6.68 | 330.00 | 0.2261 | 934.4 | 999999 | |
| 13.35 | -46.00 | 6.78 | -46.00 | 14.27 | 11.02 | 6.51 | 329.91 | 0.2203 | -1212.5 | 999999 | |
| 2.41 | -46.00 | 1.23 | -46.00 | 14.51 | 10.99 | 6.49 | 330.56 | 0.2237 | 908.4 | 999999 | |
| 13.70 | -46.00 | 6.95 | -46.00 | 14.51 | 10.69 | 6.18 | 331.74 | 0.2212 | 993.4 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 15.82 | 10.51 | 6.00 | 335.03 | 0.2396 | 768.0 | 551.0 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 16.64 | 10.41 | 5.91 | 336.81 | 0.2515 | -756.0 | -565.1 | |
| 6.03 | 36.01 | 3.05 | 18.20 | 13.07 | 10.28 | 5.77 | 329.90 | 0.1963 | 1048.5 | 84.2 | |
| 17.75 | -46.00 | 9.00 | -46.00 | 14.42 | 10.22 | 5.72 | 333.36 | 0.2162 | 1097.9 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 16.03 | 10.27 | 5.76 | 336.29 | 0.2412 | -946.0 | -752.5 | |
| 1.21 | -46.00 | 0.61 | -46.00 | 14.70 | 9.95 | 5.45 | 335.01 | 0.2184 | 908.0 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 18.20 | 9.93 | 5.43 | 340.71 | 0.2731 | 708.0 | 545.7 | |
| 2.07 | 8.53 | 1.06 | 4.35 | 16.37 | 9.72 | 5.21 | 338.86 | 0.2429 | -1041.5 | -467.2 | |
| 1.55 | -59.00 | 0.79 | -59.00 | 16.34 | 9.53 | 5.03 | 339.51 | 0.2413 | -895.9 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.09 | 15.04 | 9.37 | 4.87 | 337.98 | 0.2197 | 846.0 | 666.1 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 15.40 | 9.38 | 4.88 | 338.57 | 0.2255 | 275.0 | 235.1 | |
| 0.00 | 3.01 | 0.00 | 1.55 | 18.02 | 9.33 | 4.83 | 342.49 | 0.2670 | 994.0 | 797.3 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 14.95 | 9.19 | 4.68 | 338.59 | 0.2171 | 995.0 | 778.7 | |
| 0.00 | 2.50 | 0.00 | 1.28 | 17.38 | 9.25 | 4.74 | 341.98 | 0.2563 | 1008.0 | 859.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 16.95 | 9.14 | 4.64 | 341.80 | 0.2489 | 745.0 | 580.5 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 13.59 | 9.03 | 4.53 | 336.65 | 0.1946 | 754.0 | 599.5 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 16.59 | 9.04 | 4.54 | 341.69 | 0.2425 | 923.0 | 672.5 | |
| 0.00 | 2.50 | 0.00 | 1.26 | 13.44 | 8.91 | 4.41 | 336.92 | 0.1914 | 862.0 | 654.0 | |
| 3.62 | 57.63 | 1.85 | 29.49 | 17.32 | 8.81 | 4.31 | 343.47 | 0.2532 | 1041.2 | 14.4 | |
| 4.31 | -70.00 | 2.20 | -70.00 | 17.08 | 8.65 | 4.14 | 343.78 | 0.2484 | 1196.6 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 19.69 | 8.43 | 3.93 | 347.10 | 0.2901 | 771.0 | 585.5 | |
| 5.17 | -70.00 | 2.65 | -70.00 | 17.57 | 8.32 | 3.81 | 345.53 | 0.2550 | -1055.6 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 14.83 | 7.86 | 3.36 | 344.13 | 0.2080 | -885.0 | -715.8 | |
| 0.00 | 1.90 | 0.00 | 0.98 | 20.19 | 7.72 | 3.21 | 349.71 | 0.2959 | 920.0 | 736.4 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 19.85 | 6.54 | 2.04 | 353.29 | 0.2874 | 1047.0 | 858.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 20.88 | 6.36 | 1.86 | 354.25 | 0.3041 | 709.0 | 540.9 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 18.53 | 3.96 | -0.55 | 1.98 | 0.2632 | 361.0 | 368.0 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 17.77 | 3.74 | -0.76 | 2.92 | 0.2504 | 1054.0 | 815.6 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 17.15 | 3.27 | -1.23 | 4.91 | 0.2406 | 885.0 | 660.1 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 17.18 | 2.62 | -1.88 | 7.47 | 0.2423 | 906.0 | 714.7 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 14.57 | 355.40 | -9.10 | 38.10 | 0.2493 | 933.0 | 703.7 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 14.93 | 355.32 | -9.18 | 37.42 | 0.2548 | 766.0 | 567.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
