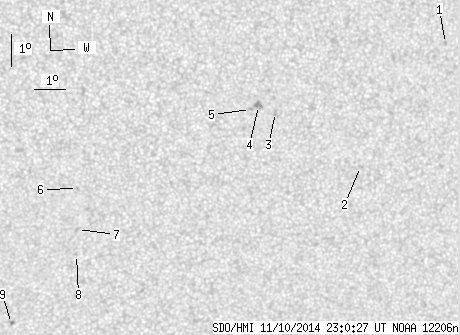

SDO HMI 2014-11-10 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.58 | 0.00 | 9.63 | -15.03 | 21.60 | 17.09 | 221.93 | 0.4297 | 32.8 | 279.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-10 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.02 | -11.90 | 28.34 | 23.83 | 236.86 | 0.4742 | 820.0 | 501.3 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -15.66 | 25.90 | 21.40 | 227.51 | 0.4784 | 391.0 | 317.4 | |
| 0.00 | 2.07 | 0.00 | 1.13 | -13.91 | 22.96 | 18.45 | 226.29 | 0.4269 | 643.0 | 604.5 | |
| 0.00 | 5.00 | 0.00 | 2.72 | -13.68 | 22.39 | 17.89 | 225.82 | 0.4180 | 950.0 | 884.2 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -13.80 | 22.14 | 17.64 | 225.21 | 0.4165 | 733.0 | 656.5 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -16.17 | 16.81 | 12.30 | 211.58 | 0.3925 | -898.0 | -678.2 | |
| 0.00 | 2.15 | 0.00 | 1.17 | -17.47 | 16.89 | 12.39 | 210.02 | 0.4108 | -797.0 | -558.4 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -18.27 | 16.91 | 12.41 | 209.07 | 0.4219 | -697.0 | -497.3 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -20.46 | 14.98 | 10.48 | 202.92 | 0.4393 | -850.0 | -741.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
