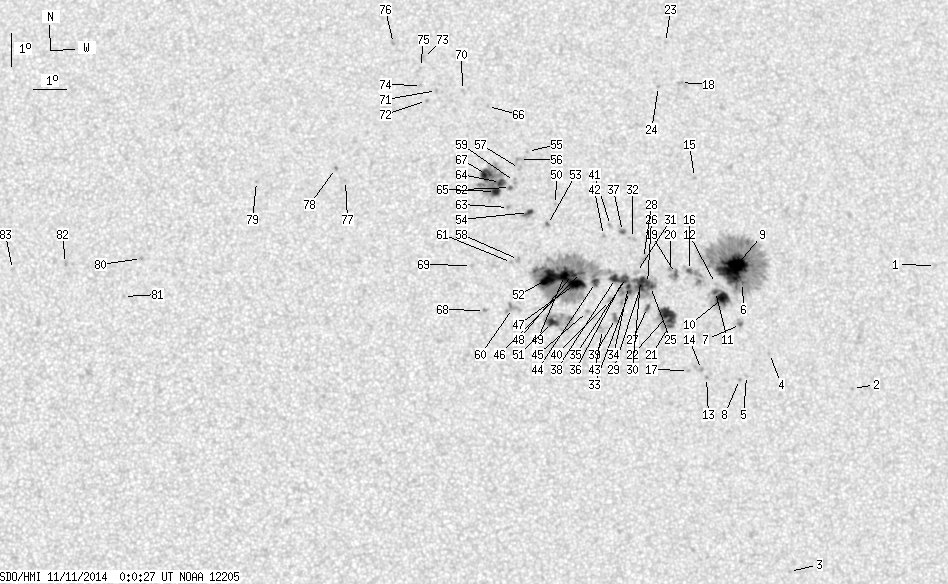

SDO HMI 2014-11-11 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 196.15 | 830.00 | 100.32 | 425.09 | 14.71 | 12.68 | 8.73 | 323.30 | 0.2527 | -402.8 | -229.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.78 | 14.65 | 22.37 | 18.42 | 303.05 | 0.3663 | -674.0 | -443.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 10.99 | 19.47 | 15.52 | 297.24 | 0.2967 | -795.0 | -602.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 5.57 | 17.31 | 13.35 | 279.99 | 0.2345 | -724.0 | -553.2 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 12.08 | 16.93 | 12.98 | 304.93 | 0.2691 | -791.0 | -559.9 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 11.43 | 16.19 | 12.24 | 304.36 | 0.2528 | -794.0 | -567.5 | |
| 0.60 | 242.43 | 0.31 | 125.30 | 14.23 | 16.21 | 12.25 | 312.75 | 0.2814 | -948.3 | -355.2 | |
| 0.43 | 3.36 | 0.22 | 1.73 | 12.97 | 16.08 | 12.12 | 309.45 | 0.2663 | -1079.4 | -922.4 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 11.32 | 15.97 | 12.01 | 304.44 | 0.2486 | -955.0 | -777.6 | |
| 46.87 | -6.00 | 24.19 | -6.00 | 14.66 | 15.95 | 12.00 | 314.48 | 0.2831 | -1338.8 | 999999 | |
| 10.08 | 30.76 | 5.18 | 15.80 | 13.76 | 15.56 | 11.60 | 312.96 | 0.2681 | -1208.2 | -745.3 | |
| 1.55 | -10.00 | 0.80 | -10.00 | 13.97 | 15.35 | 11.40 | 314.06 | 0.2680 | -1151.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 14.21 | 15.36 | 11.41 | 314.69 | 0.2709 | -914.0 | -701.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 11.39 | 14.95 | 11.00 | 307.02 | 0.2353 | -930.0 | -788.8 | |
| 0.00 | 1.81 | 0.00 | 0.92 | 11.63 | 14.81 | 10.85 | 308.20 | 0.2358 | -1076.0 | -897.6 | |
| 0.00 | 1.55 | 0.00 | 0.81 | 17.44 | 14.89 | 10.93 | 323.51 | 0.3056 | -792.0 | -653.1 | |
| 1.21 | 15.77 | 0.62 | 8.10 | 14.62 | 14.57 | 10.62 | 317.77 | 0.2665 | -1031.9 | -895.8 | |
| 0.00 | 1.38 | 0.00 | 0.70 | 11.61 | 14.40 | 10.45 | 309.15 | 0.2302 | -921.0 | -751.9 | |
| 0.00 | 1.98 | 0.00 | 1.04 | 20.37 | 14.63 | 10.68 | 329.40 | 0.3429 | -828.0 | -773.2 | |
| 1.38 | 6.03 | 0.71 | 3.09 | 14.53 | 14.13 | 10.18 | 318.73 | 0.2605 | -1137.4 | -935.2 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 14.65 | 13.98 | 10.03 | 319.46 | 0.2603 | -928.0 | -800.5 | |
| 1.64 | 29.64 | 0.83 | 15.12 | 12.96 | 13.87 | 9.92 | 315.01 | 0.2386 | -1001.7 | -629.2 | |
| 16.45 | -21.00 | 8.40 | -21.00 | 13.27 | 13.82 | 9.87 | 316.06 | 0.2416 | -1127.5 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 21.63 | 14.24 | 10.29 | 332.18 | 0.3573 | -714.0 | -562.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 20.26 | 13.92 | 9.97 | 330.91 | 0.3354 | -877.0 | -718.5 | |
| 3.19 | 291.88 | 1.63 | 148.51 | 14.15 | 13.33 | 9.38 | 319.97 | 0.2469 | -963.9 | -147.9 | |
| 2.67 | -25.00 | 1.36 | -25.00 | 14.24 | 13.25 | 9.29 | 320.48 | 0.2471 | -1162.1 | 999999 | |
| 1.46 | 3.88 | 0.75 | 1.98 | 13.51 | 13.21 | 9.26 | 318.56 | 0.2376 | -977.0 | -659.9 | |
| 0.00 | 5.17 | 0.00 | 2.65 | 14.99 | 13.15 | 9.20 | 322.69 | 0.2560 | -1015.0 | -656.9 | |
| 5.34 | -25.00 | 2.73 | -25.00 | 14.15 | 13.02 | 9.07 | 320.91 | 0.2436 | -1277.6 | 999999 | |
| 5.17 | -25.00 | 2.64 | -25.00 | 14.33 | 13.03 | 9.08 | 321.36 | 0.2460 | -1033.9 | 999999 | |
| 0.00 | 2.84 | 0.00 | 1.45 | 14.57 | 12.92 | 8.97 | 322.34 | 0.2480 | 48.0 | -40.1 | |
| 0.00 | 3.27 | 0.00 | 1.68 | 15.60 | 12.84 | 8.89 | 325.07 | 0.2610 | -871.0 | -744.8 | |
| 1.55 | -25.00 | 0.79 | -25.00 | 14.00 | 12.68 | 8.73 | 321.58 | 0.2380 | -1125.3 | 999999 | |
| 1.81 | -25.00 | 0.92 | -25.00 | 14.15 | 12.65 | 8.70 | 322.07 | 0.2397 | -1249.0 | 999999 | |
| 1.29 | -25.00 | 0.66 | -25.00 | 14.42 | 12.60 | 8.65 | 322.94 | 0.2428 | -968.4 | 999999 | |
| 3.79 | -25.00 | 1.93 | -25.00 | 14.37 | 12.51 | 8.55 | 323.09 | 0.2410 | -1213.0 | 999999 | |
| 1.03 | 3.19 | 0.53 | 1.64 | 15.82 | 12.54 | 8.58 | 326.46 | 0.2611 | -1125.2 | -888.7 | |
| 5.43 | -25.00 | 2.77 | -25.00 | 14.40 | 12.26 | 8.31 | 323.96 | 0.2389 | -1156.7 | 999999 | |
| 0.00 | 4.91 | 0.00 | 2.49 | 13.19 | 12.22 | 8.26 | 320.81 | 0.2224 | -1010.0 | -728.5 | |
| 0.00 | 2.67 | 0.00 | 1.36 | 13.73 | 12.08 | 8.13 | 322.80 | 0.2282 | -1018.0 | -857.5 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 16.01 | 12.17 | 8.22 | 327.99 | 0.2604 | -867.0 | -725.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 15.70 | 11.94 | 7.99 | 328.07 | 0.2540 | -726.0 | -705.1 | |
| 0.00 | 4.39 | 0.00 | 2.23 | 12.86 | 11.80 | 7.85 | 321.25 | 0.2137 | 225.0 | 154.0 | |
| 3.45 | -25.00 | 1.75 | -25.00 | 14.28 | 11.64 | 7.68 | 325.74 | 0.2313 | -1100.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 13.41 | 11.36 | 7.41 | 324.41 | 0.2165 | -669.0 | -493.0 | |
| 1.29 | -25.00 | 0.66 | -25.00 | 14.59 | 11.22 | 7.26 | 327.96 | 0.2316 | 801.9 | 999999 | |
| 15.33 | -25.00 | 7.79 | -25.00 | 14.23 | 10.99 | 7.03 | 327.90 | 0.2244 | -1163.0 | 999999 | |
| 3.88 | -25.00 | 1.97 | -25.00 | 14.53 | 10.94 | 6.98 | 328.81 | 0.2283 | 966.0 | 999999 | |
| 12.49 | -25.00 | 6.35 | -25.00 | 14.50 | 10.69 | 6.73 | 329.65 | 0.2257 | 915.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 16.66 | 10.48 | 6.53 | 334.73 | 0.2563 | -700.0 | -534.0 | |
| 5.94 | 35.49 | 3.01 | 17.96 | 13.09 | 10.28 | 6.32 | 327.68 | 0.2016 | 983.7 | 97.9 | |
| 19.56 | -25.00 | 9.93 | -25.00 | 14.42 | 10.22 | 6.27 | 331.20 | 0.2205 | 1100.1 | 999999 | |
| 0.43 | 2.33 | 0.22 | 1.19 | 16.05 | 10.21 | 6.26 | 334.57 | 0.2451 | -1000.2 | -759.3 | |
| 2.84 | 6.55 | 1.45 | 3.34 | 16.42 | 9.63 | 5.68 | 337.27 | 0.2468 | -1031.2 | -602.8 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 18.29 | 9.66 | 5.71 | 339.90 | 0.2762 | 770.0 | 630.6 | |
| 0.00 | 5.60 | 0.00 | 2.88 | 18.04 | 9.40 | 5.45 | 340.43 | 0.2708 | 939.0 | 756.2 | |
| 0.00 | 2.07 | 0.00 | 1.06 | 17.77 | 9.39 | 5.44 | 340.09 | 0.2664 | 796.0 | 708.3 | |
| 0.00 | 2.84 | 0.00 | 1.44 | 15.00 | 9.28 | 5.33 | 336.07 | 0.2223 | 940.0 | 744.5 | |
| 0.00 | 2.93 | 0.00 | 1.50 | 17.37 | 9.23 | 5.27 | 340.13 | 0.2592 | 1022.0 | 763.1 | |
| 0.00 | 8.18 | 0.00 | 4.13 | 13.52 | 9.06 | 5.11 | 333.91 | 0.1978 | 305.0 | 254.6 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 14.91 | 9.06 | 5.11 | 336.78 | 0.2194 | 862.0 | 625.2 | |
| 0.60 | 1.81 | 0.31 | 0.93 | 17.19 | 9.09 | 5.14 | 340.33 | 0.2555 | 1073.4 | 868.1 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 16.58 | 9.02 | 5.06 | 339.74 | 0.2454 | 907.0 | 767.1 | |
| 4.31 | 59.19 | 2.21 | 30.31 | 17.34 | 8.79 | 4.83 | 341.62 | 0.2563 | 966.1 | -12.8 | |
| 4.91 | -64.00 | 2.51 | -64.00 | 17.07 | 8.62 | 4.67 | 341.85 | 0.2510 | 1117.7 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 19.68 | 8.45 | 4.49 | 345.31 | 0.2923 | 855.0 | 671.9 | |
| 8.18 | -64.00 | 4.19 | -64.00 | 17.59 | 8.36 | 4.40 | 343.44 | 0.2581 | -1002.2 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 13.46 | 8.20 | 4.25 | 337.71 | 0.1909 | 971.0 | 795.1 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 14.82 | 7.83 | 3.88 | 341.83 | 0.2106 | -929.0 | -675.9 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 20.18 | 7.67 | 3.72 | 348.14 | 0.2975 | 931.0 | 755.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 20.19 | 6.85 | 2.89 | 350.72 | 0.2950 | 935.0 | 851.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 19.88 | 6.52 | 2.57 | 351.57 | 0.2891 | 1026.0 | 838.7 | |
| 0.00 | 3.27 | 0.00 | 1.71 | 21.18 | 6.45 | 2.50 | 352.44 | 0.3105 | 678.0 | 548.5 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 20.34 | 6.37 | 2.42 | 352.29 | 0.2964 | 820.0 | 650.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 20.90 | 6.35 | 2.40 | 352.62 | 0.3056 | 625.0 | 484.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 21.66 | 5.50 | 1.55 | 355.43 | 0.3166 | 842.0 | 583.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 17.42 | 3.96 | 0.01 | 359.96 | 0.2444 | 857.0 | 762.1 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 17.79 | 3.65 | -0.30 | 1.15 | 0.2507 | 903.0 | 763.4 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 17.39 | 1.20 | -2.76 | 10.71 | 0.2482 | 896.0 | 698.3 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 15.04 | 357.68 | -6.27 | 27.46 | 0.2298 | 951.0 | 744.9 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 13.88 | 357.16 | -6.79 | 32.07 | 0.2173 | 786.0 | 622.6 | |
| 0.00 | 2.07 | 0.00 | 1.06 | 14.87 | 355.33 | -8.62 | 35.86 | 0.2485 | 894.0 | 732.2 | |
| 0.00 | 1.81 | 0.00 | 0.93 | 14.67 | 353.69 | -10.26 | 41.12 | 0.2632 | 796.0 | 502.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
