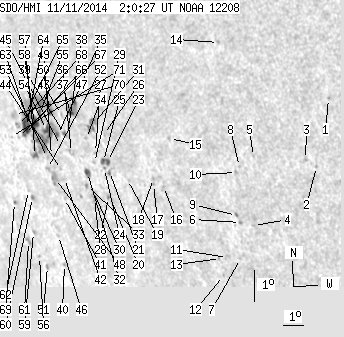

SDO HMI 2014-11-11 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.25 | 241.25 | 41.71 | 228.22 | -10.99 | 305.85 | -57.00 | 105.09 | 0.8539 | -168.5 | -252.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.85 | -8.99 | 319.08 | -43.78 | 106.11 | 0.7136 | 646.0 | 505.1 | |
| 0.00 | 1.12 | 0.00 | 0.81 | -11.10 | 318.20 | -44.65 | 108.64 | 0.7302 | 531.0 | 433.8 | |
| 0.00 | 1.21 | 0.00 | 0.88 | -10.90 | 317.77 | -45.09 | 108.23 | 0.7345 | 655.0 | 520.8 | |
| 0.00 | 1.12 | 0.00 | 0.87 | -13.05 | 314.98 | -47.87 | 110.02 | 0.7713 | 678.0 | 581.5 | |
| 0.00 | 0.78 | 0.00 | 0.59 | -10.91 | 315.48 | -47.37 | 107.48 | 0.7597 | 542.0 | 500.0 | |
| 0.00 | 1.38 | 0.00 | 1.08 | -12.98 | 314.40 | -48.45 | 109.74 | 0.7771 | 792.0 | 673.3 | |
| 0.00 | 0.60 | 0.00 | 0.48 | -14.11 | 314.09 | -48.77 | 111.03 | 0.7837 | 354.0 | 371.0 | |
| 0.00 | 0.86 | 0.00 | 0.66 | -11.24 | 314.78 | -48.08 | 107.68 | 0.7683 | 549.0 | 479.7 | |
| 0.00 | 1.55 | 0.00 | 1.22 | -12.77 | 314.27 | -48.58 | 109.44 | 0.7779 | 691.0 | 564.6 | |
| 0.00 | 1.46 | 0.00 | 1.13 | -11.43 | 314.60 | -48.26 | 107.87 | 0.7707 | 654.0 | 560.9 | |
| 0.00 | 2.41 | 0.00 | 1.94 | -14.10 | 313.48 | -49.38 | 110.82 | 0.7898 | 492.0 | 406.6 | |
| 0.00 | 0.78 | 0.00 | 0.63 | -14.68 | 313.11 | -49.74 | 111.40 | 0.7951 | 372.0 | 334.2 | |
| 0.00 | 0.43 | 0.00 | 0.35 | -14.15 | 313.13 | -49.72 | 110.76 | 0.7934 | 213.0 | 276.0 | |
| 0.00 | 0.95 | 0.00 | 0.72 | -7.49 | 314.53 | -48.32 | 102.81 | 0.7617 | 540.0 | 515.5 | |
| 0.00 | 1.29 | 0.00 | 1.06 | -10.53 | 311.66 | -51.20 | 105.89 | 0.7989 | 325.0 | 272.9 | |
| 0.00 | 0.60 | 0.00 | 0.51 | -12.03 | 310.98 | -51.87 | 107.53 | 0.8091 | 630.0 | 575.4 | |
| 0.00 | 0.95 | 0.00 | 0.80 | -11.99 | 310.49 | -52.36 | 107.35 | 0.8137 | 524.0 | 500.5 | |
| 0.00 | 1.55 | 0.00 | 1.31 | -11.80 | 310.55 | -52.31 | 107.14 | 0.8128 | 541.0 | 498.4 | |
| 0.00 | 0.69 | 0.00 | 0.60 | -11.89 | 309.20 | -53.65 | 106.90 | 0.8259 | 558.0 | 446.9 | |
| 0.00 | 2.33 | 0.00 | 2.09 | -12.59 | 308.15 | -54.70 | 107.45 | 0.8371 | 464.0 | 280.4 | |
| 0.00 | 2.33 | 0.00 | 2.07 | -11.69 | 308.32 | -54.53 | 106.44 | 0.8337 | 561.0 | 472.0 | |
| 0.00 | 1.38 | 0.00 | 1.24 | -12.50 | 308.02 | -54.83 | 107.31 | 0.8381 | 381.0 | 314.3 | |
| 1.72 | 6.03 | 1.53 | 5.39 | -11.39 | 308.31 | -54.54 | 106.07 | 0.8332 | 775.2 | 522.4 | |
| 0.00 | 0.69 | 0.00 | 0.62 | -11.61 | 308.08 | -54.77 | 106.28 | 0.8357 | 437.0 | 389.8 | |
| 1.64 | -23.00 | 1.47 | -23.00 | -11.40 | 308.09 | -54.76 | 106.03 | 0.8352 | 598.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.76 | -10.56 | 308.33 | -54.53 | 105.10 | 0.8314 | 653.0 | 476.9 | |
| 0.00 | 1.29 | 0.00 | 1.17 | -11.14 | 307.74 | -55.11 | 105.65 | 0.8379 | 296.0 | 207.0 | |
| 0.00 | 3.36 | 0.00 | 3.10 | -12.57 | 307.25 | -55.61 | 107.20 | 0.8452 | -366.0 | -293.7 | |
| 0.00 | 1.12 | 0.00 | 1.02 | -11.45 | 307.60 | -55.25 | 105.98 | 0.8398 | 296.0 | 334.8 | |
| 0.00 | 1.12 | 0.00 | 1.03 | -12.36 | 307.26 | -55.59 | 106.95 | 0.8446 | -236.0 | -185.8 | |
| 0.00 | 9.91 | 0.00 | 8.89 | -10.28 | 307.82 | -55.03 | 104.66 | 0.8356 | 339.0 | 166.8 | |
| 2.76 | 4.57 | 2.54 | 4.20 | -11.78 | 307.12 | -55.73 | 106.25 | 0.8448 | 449.3 | 202.1 | |
| 0.00 | 1.55 | 0.00 | 1.44 | -12.19 | 306.94 | -55.91 | 106.68 | 0.8472 | 134.0 | 42.7 | |
| 0.00 | 1.29 | 0.00 | 1.17 | -10.73 | 307.38 | -55.47 | 105.08 | 0.8405 | -327.0 | -324.0 | |
| 1.90 | 13.87 | 1.73 | 12.71 | -9.62 | 306.97 | -55.88 | 103.70 | 0.8422 | 279.5 | -367.4 | |
| 0.00 | 2.76 | 0.00 | 2.58 | -11.20 | 306.42 | -56.43 | 105.42 | 0.8499 | 212.0 | 94.9 | |
| 2.15 | -35.00 | 1.98 | -35.00 | -9.97 | 306.72 | -56.13 | 104.05 | 0.8451 | -747.4 | 999999 | |
| 0.00 | 2.15 | 0.00 | 2.00 | -10.44 | 306.48 | -56.37 | 104.54 | 0.8481 | -715.0 | -716.3 | |
| 0.69 | 2.50 | 0.65 | 2.34 | -10.63 | 306.21 | -56.65 | 104.71 | 0.8509 | -783.0 | -713.0 | |
| 0.00 | 1.21 | 0.00 | 1.21 | -14.74 | 304.74 | -58.11 | 109.05 | 0.8708 | -590.0 | -549.4 | |
| 0.00 | 0.69 | 0.00 | 0.67 | -12.66 | 305.55 | -57.30 | 106.89 | 0.8601 | -522.0 | -472.2 | |
| 0.00 | 1.98 | 0.00 | 1.89 | -12.03 | 305.77 | -57.08 | 106.23 | 0.8572 | -267.0 | -220.9 | |
| 0.00 | 1.29 | 0.00 | 1.21 | -10.05 | 306.20 | -56.65 | 104.04 | 0.8499 | -392.0 | -365.4 | |
| 0.00 | 0.78 | 0.00 | 0.74 | -11.76 | 305.69 | -57.16 | 105.90 | 0.8574 | -268.0 | -230.4 | |
| 0.00 | 0.95 | 0.00 | 0.90 | -11.01 | 305.87 | -56.98 | 105.08 | 0.8545 | -404.0 | -350.7 | |
| 0.00 | 1.21 | 0.00 | 1.20 | -13.84 | 304.76 | -58.09 | 108.05 | 0.8689 | -495.0 | -456.6 | |
| 1.46 | 121.75 | 1.39 | 118.56 | -10.68 | 305.80 | -57.05 | 104.68 | 0.8545 | -738.6 | -460.9 | |
| 0.00 | 8.10 | 0.00 | 7.86 | -12.06 | 305.25 | -57.60 | 106.14 | 0.8616 | -587.0 | -560.9 | |
| 0.00 | 1.03 | 0.00 | 1.00 | -11.35 | 305.26 | -57.59 | 105.33 | 0.8604 | -607.0 | -494.6 | |
| 1.90 | -47.00 | 1.80 | -47.00 | -9.99 | 305.55 | -57.30 | 103.84 | 0.8556 | -838.7 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.60 | -14.85 | 303.68 | -59.17 | 108.93 | 0.8795 | -505.0 | -382.7 | |
| 0.00 | 1.98 | 0.00 | 1.94 | -11.77 | 304.89 | -57.96 | 105.73 | 0.8642 | -726.0 | -634.1 | |
| 0.00 | 1.46 | 0.00 | 1.42 | -11.42 | 305.00 | -57.85 | 105.36 | 0.8627 | -642.0 | -585.8 | |
| 3.53 | -47.00 | 3.40 | -47.00 | -10.56 | 305.22 | -57.63 | 104.42 | 0.8594 | -863.3 | 999999 | |
| 1.72 | -47.00 | 1.67 | -47.00 | -10.08 | 304.96 | -57.89 | 103.82 | 0.8609 | -665.9 | 999999 | |
| 0.00 | 1.03 | 0.00 | 1.08 | -14.56 | 303.32 | -59.53 | 108.52 | 0.8817 | -240.0 | -133.5 | |
| 1.90 | -47.00 | 1.88 | -47.00 | -11.40 | 304.32 | -58.53 | 105.19 | 0.8684 | -533.3 | 999999 | |
| 7.67 | -47.00 | 7.51 | -47.00 | -10.41 | 304.58 | -58.28 | 104.12 | 0.8647 | -732.2 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.25 | -13.82 | 303.28 | -59.57 | 107.69 | 0.8808 | -605.0 | -438.5 | |
| 0.00 | 1.55 | 0.00 | 1.58 | -12.72 | 303.67 | -59.19 | 106.54 | 0.8759 | -624.0 | -499.4 | |
| 0.00 | 3.36 | 0.00 | 3.54 | -14.12 | 302.84 | -60.01 | 107.92 | 0.8847 | -398.0 | -268.3 | |
| 0.00 | 0.26 | 0.00 | 0.26 | -12.51 | 303.51 | -59.35 | 106.27 | 0.8769 | -453.0 | -443.3 | |
| 2.67 | -47.00 | 2.64 | -47.00 | -10.24 | 304.22 | -58.63 | 103.86 | 0.8675 | -615.1 | 999999 | |
| 8.44 | -47.00 | 8.40 | -47.00 | -10.52 | 304.07 | -58.78 | 104.15 | 0.8691 | -589.5 | 999999 | |
| 1.29 | -47.00 | 1.28 | -47.00 | -10.13 | 304.14 | -58.71 | 103.71 | 0.8680 | -467.3 | 999999 | |
| 1.29 | -47.00 | 1.29 | -47.00 | -10.78 | 303.88 | -58.98 | 104.40 | 0.8711 | -386.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.87 | -10.89 | 303.48 | -59.37 | 104.44 | 0.8746 | -267.0 | -220.6 | |
| 0.00 | 2.67 | 0.00 | 2.70 | -10.52 | 303.54 | -59.31 | 104.04 | 0.8735 | -292.0 | -230.3 | |
| 0.52 | 1.46 | 0.55 | 1.55 | -12.93 | 302.48 | -60.37 | 106.53 | 0.8856 | -360.7 | -297.0 | |
| 0.00 | 4.48 | 0.00 | 4.53 | -10.19 | 303.47 | -59.38 | 103.65 | 0.8737 | 41.0 | 64.1 | |
| 0.00 | 0.34 | 0.00 | 0.35 | -10.88 | 303.06 | -59.79 | 104.35 | 0.8780 | -449.0 | -406.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
