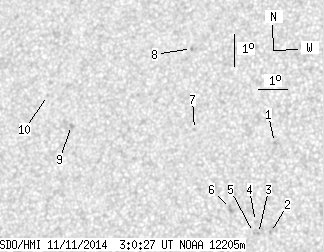

SDO HMI 2014-11-11 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.81 | 0.00 | 6.47 | 18.26 | 341.53 | -20.77 | 52.11 | 0.4279 | -188.4 | -171.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.51 | 19.04 | 344.02 | -18.29 | 47.30 | 0.4053 | -817.0 | -633.7 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 16.28 | 344.17 | -18.13 | 52.76 | 0.3769 | -1005.0 | -782.0 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 16.25 | 343.78 | -18.52 | 53.39 | 0.3816 | -817.0 | -683.4 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 16.61 | 343.65 | -18.65 | 52.79 | 0.3865 | -677.0 | -624.9 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 16.27 | 343.62 | -18.69 | 53.56 | 0.3840 | -629.0 | -543.8 | |
| 0.00 | 3.02 | 0.00 | 1.63 | 16.99 | 342.79 | -19.51 | 53.14 | 0.4010 | -803.0 | -695.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 19.39 | 341.30 | -21.00 | 50.32 | 0.4412 | 546.0 | 424.3 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 21.91 | 340.83 | -21.47 | 46.48 | 0.4703 | 858.0 | 714.2 | |
| 0.00 | 1.72 | 0.00 | 0.98 | 19.43 | 337.08 | -25.22 | 54.88 | 0.4933 | 947.0 | 691.1 | |
| 0.00 | 0.78 | 0.00 | 0.45 | 20.34 | 336.08 | -26.22 | 54.25 | 0.5126 | 513.0 | 417.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
