SDO HMI 2014-11-11 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.80 | 0.00 | 6.51 | -14.67 | 20.82 | 19.06 | 225.49 | 0.4456 | 153.1 | 260.8 | |
|
previous
or next observation for the same group /

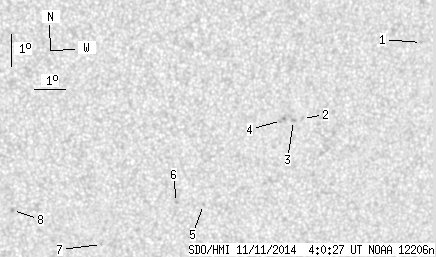

back to the solar disc SDO HMI 2014-11-11 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.63 | -11.45 | 26.85 | 25.09 | 239.03 | 0.4868 | 747.0 | 596.6 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -13.70 | 23.12 | 21.37 | 230.79 | 0.4587 | 543.0 | 481.4 | |
| 0.00 | 1.55 | 0.00 | 0.86 | -13.76 | 22.83 | 21.08 | 230.32 | 0.4557 | 818.0 | 725.9 | |
| 0.00 | 2.93 | 0.00 | 1.62 | -13.75 | 22.44 | 20.68 | 229.81 | 0.4509 | 608.0 | 769.4 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -16.32 | 20.13 | 18.38 | 222.24 | 0.4520 | 821.0 | 572.7 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -16.24 | 19.25 | 17.49 | 220.98 | 0.4419 | -846.0 | -614.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -17.53 | 16.94 | 15.18 | 215.21 | 0.4349 | -689.0 | -587.5 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -16.41 | 14.01 | 12.25 | 211.20 | 0.3947 | -777.0 | -611.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
