group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12205	167.44	771.34	86.80	400.12	14.62	12.81	12.70	313.55	0.2948	-419.3	-203.5

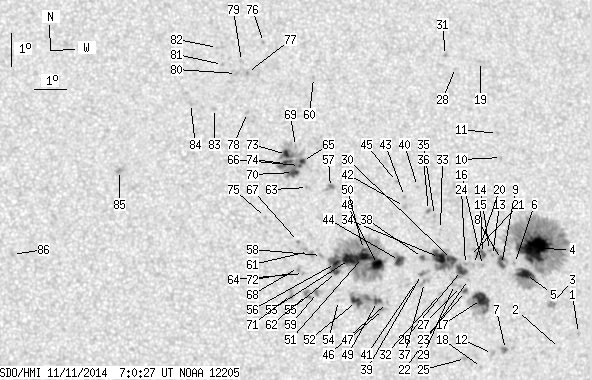

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-11-11 07:00:27 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	0.95	0.00	0.50	12.06	17.19	17.07	298.34	0.3276	-732.0	-556.3
2	0.00	1.21	0.00	0.63	11.62	16.56	16.44	297.95	0.3152	-767.0	-621.9
3	0.00	4.74	0.00	2.48	12.94	16.39	16.27	301.89	0.3231	-1082.0	-816.8
4	47.14	244.82	24.74	128.63	14.64	15.97	15.86	306.96	0.3323	-1336.2	-355.3
5	10.00	34.99	5.22	18.28	13.86	15.63	15.51	305.54	0.3205	-1207.4	-573.4
6	0.00	1.29	0.00	0.68	14.20	15.30	15.19	306.97	0.3193	-959.0	-750.1
7	0.69	3.27	0.36	1.69	11.61	14.86	14.74	300.47	0.2905	-1015.5	-856.7
8	2.41	-4.00	1.26	-4.00	14.32	14.90	14.78	308.01	0.3152	-1136.1	999999
9	2.07	-4.00	1.08	-4.00	14.17	14.89	14.77	307.64	0.3136	-1174.4	999999
10	0.00	0.86	0.00	0.46	17.43	15.14	15.02	314.86	0.3504	-770.0	-592.7
11	0.00	1.55	0.00	0.82	18.16	15.08	14.96	316.51	0.3579	-600.0	-492.5
12	0.00	3.02	0.00	1.56	11.50	14.44	14.33	300.80	0.2836	-879.0	-578.3
13	0.00	0.78	0.00	0.40	14.45	14.62	14.51	308.84	0.3128	-979.0	-888.4
14	0.00	1.55	0.00	0.81	14.60	14.54	14.42	309.39	0.3133	-959.0	-778.1
15	2.07	9.39	1.08	4.89	14.52	14.31	14.19	309.60	0.3095	-1132.2	-759.4
16	0.00	1.21	0.00	0.63	14.15	14.29	14.17	308.69	0.3055	-874.0	-697.1
17	13.79	34.38	7.14	17.80	13.13	14.19	14.07	306.07	0.2943	-1145.2	-617.8
18	0.00	1.12	0.00	0.58	11.09	14.08	13.96	300.11	0.2750	-710.0	-502.5
19	0.00	1.29	0.00	0.69	20.39	14.73	14.61	321.36	0.3804	-973.0	-772.8
20	0.00	1.03	0.00	0.54	14.19	14.01	13.89	309.33	0.3022	-813.0	-654.4
21	0.00	0.86	0.00	0.45	14.43	13.90	13.78	310.18	0.3033	-941.0	-768.3
22	0.00	0.95	0.00	0.49	13.74	13.82	13.70	308.48	0.2953	-969.0	-866.2
23	0.95	3.02	0.49	1.56	13.38	13.70	13.59	307.71	0.2902	-1043.1	-669.0
24	0.00	1.38	0.00	0.72	14.19	13.75	13.64	309.83	0.2990	-717.0	-631.2
25	0.00	3.45	0.00	1.77	11.36	13.59	13.48	301.85	0.2702	-926.0	-735.1
26	5.69	50.15	2.95	25.97	14.01	13.62	13.50	309.63	0.2954	-1197.7	-743.8
27	0.00	1.21	0.00	0.62	13.53	13.56	13.44	308.43	0.2897	-1041.0	-833.4
28	0.00	0.52	0.00	0.28	20.22	13.90	13.78	322.63	0.3700	-546.0	-617.7
29	0.00	1.81	0.00	0.94	13.59	13.37	13.25	308.98	0.2880	-815.0	-665.0
30	5.00	-26.00	2.59	-26.00	14.35	13.32	13.21	311.13	0.2952	-1085.6	999999
31	0.00	1.46	0.00	0.78	20.60	13.61	13.49	323.86	0.3719	-885.0	-750.2
32	0.00	1.46	0.00	0.76	13.33	12.92	12.80	309.17	0.2794	-226.0	-193.7
33	0.00	0.60	0.00	0.31	15.26	13.03	12.92	314.08	0.3015	-792.0	-677.6
34	8.88	-26.00	4.59	-26.00	14.41	12.95	12.83	312.09	0.2912	-1275.2	999999
35	0.00	1.12	0.00	0.58	15.69	12.87	12.75	315.47	0.3044	-963.0	-750.2
36	0.00	2.07	0.00	1.07	15.84	12.69	12.57	316.23	0.3041	-1097.0	-907.8
37	0.00	4.83	0.00	2.49	13.66	12.44	12.32	311.18	0.2767	-680.0	-416.1
38	1.03	3.88	0.53	2.00	14.42	12.42	12.30	313.29	0.2847	-1193.2	-969.9
39	0.43	4.57	0.22	2.36	13.91	12.36	12.24	312.04	0.2783	-1108.0	-804.9
40	0.00	0.86	0.00	0.45	16.58	12.39	12.27	318.60	0.3095	-731.0	-584.3
41	0.00	1.46	0.00	0.75	13.70	12.19	12.07	311.84	0.2739	-840.0	-588.8
42	0.00	2.50	0.00	1.30	15.97	11.94	11.82	318.25	0.2972	-955.0	-745.8
43	0.00	1.21	0.00	0.63	16.28	11.96	11.84	318.91	0.3011	-912.0	-748.1
44	5.34	189.59	2.75	97.29	14.34	11.69	11.57	314.76	0.2750	-1042.7	49.1
45	0.00	1.29	0.00	0.67	16.74	11.74	11.62	320.47	0.3044	901.0	699.7
46	0.00	1.46	0.00	0.75	13.08	11.25	11.14	312.27	0.2554	698.0	462.4
47	0.00	2.84	0.00	1.45	12.87	11.12	11.00	311.98	0.2514	950.0	714.8
48	9.13	-44.00	4.69	-44.00	14.23	11.00	10.88	316.19	0.2655	-1210.7	999999
49	2.67	30.94	1.37	15.81	13.11	10.94	10.83	313.16	0.2519	887.8	216.6
50	0.26	-44.00	0.13	-44.00	14.68	10.58	10.47	318.48	0.2663	888.3	999999
51	11.81	-44.00	6.06	-44.00	14.44	10.54	10.42	317.96	0.2629	1019.4	999999
52	6.03	-49.00	3.08	-49.00	13.12	10.29	10.18	314.91	0.2441	957.0	999999
53	10.17	-44.00	5.21	-44.00	14.39	10.13	10.02	318.93	0.2576	1225.7	999999
54	0.00	0.95	0.00	0.48	13.15	9.74	9.62	316.60	0.2379	-759.0	-540.2
55	1.72	-44.00	0.88	-44.00	14.00	9.71	9.60	319.08	0.2481	-467.4	999999
56	3.53	-44.00	1.81	-44.00	14.27	9.69	9.58	319.87	0.2513	1083.3	999999
57	0.00	4.48	0.00	2.31	16.58	9.65	9.53	325.47	0.2812	-1081.0	-900.2
58	0.00	1.55	0.00	0.79	14.52	9.27	9.15	321.76	0.2499	907.0	811.3
59	0.00	3.62	0.00	1.84	13.40	9.10	8.98	319.25	0.2337	603.0	519.8
60	0.00	1.12	0.00	0.59	19.97	9.30	9.18	332.46	0.3258	723.0	553.9
61	0.00	4.48	0.00	2.29	14.64	8.87	8.75	323.29	0.2475	646.0	805.4
62	0.00	4.74	0.00	2.41	13.34	8.79	8.67	320.06	0.2296	974.0	922.5
63	0.00	2.15	0.00	1.11	16.59	8.93	8.81	327.53	0.2746	913.0	627.9
64	0.00	1.55	0.00	0.79	13.98	8.69	8.57	322.14	0.2368	907.0	640.0
65	1.98	55.24	1.02	28.51	17.38	8.81	8.69	329.43	0.2848	1065.0	4.8
66	0.60	-65.00	0.31	-65.00	17.26	8.71	8.59	329.49	0.2822	1033.6	999999
67	0.00	1.29	0.00	0.66	14.95	8.57	8.46	324.97	0.2486	1018.0	828.5
68	0.00	2.50	0.00	1.27	14.16	8.54	8.42	323.10	0.2377	797.0	728.9
69	0.00	1.12	0.00	0.58	17.84	8.61	8.49	330.83	0.2898	-28.0	-48.1
70	5.08	-65.00	2.62	-65.00	17.05	8.51	8.39	329.66	0.2775	880.8	999999
71	0.00	3.96	0.00	2.01	13.35	8.30	8.18	321.69	0.2243	1072.0	857.2
72	0.00	0.95	0.00	0.48	13.98	8.29	8.17	323.46	0.2327	986.0	810.2
73	3.71	-65.00	1.91	-65.00	17.60	8.32	8.20	331.25	0.2839	-1045.1	999999
74	5.26	-65.00	2.71	-65.00	17.33	8.24	8.12	330.98	0.2793	-796.9	999999
75	0.00	1.12	0.00	0.57	15.69	7.58	7.46	329.84	0.2499	-649.0	-491.9
76	0.00	1.12	0.00	0.59	21.07	7.76	7.64	337.91	0.3315	735.0	601.1
77	0.00	1.03	0.00	0.54	20.14	7.20	7.08	338.25	0.3139	1020.0	940.8
78	0.00	1.55	0.00	0.80	18.90	7.14	7.03	336.76	0.2947	871.0	656.9
79	0.00	1.81	0.00	0.95	20.48	7.03	6.91	339.16	0.3181	650.0	533.1
80	0.00	2.59	0.00	1.35	20.11	6.85	6.73	339.20	0.3113	960.0	754.1
81	0.00	1.21	0.00	0.63	20.39	6.42	6.30	340.75	0.3133	897.0	663.0
82	0.00	0.78	0.00	0.41	20.92	6.28	6.16	341.71	0.3208	690.0	474.1
83	0.00	1.55	0.00	0.80	19.03	6.11	5.99	340.04	0.2903	813.0	707.1
84	0.00	1.64	0.00	0.85	19.19	5.36	5.24	342.55	0.2888	932.0	776.8
85	0.00	2.84	0.00	1.45	17.15	3.08	2.96	348.35	0.2457	1042.0	875.2
86	0.00	1.46	0.00	0.74	14.60	359.76	-0.36	1.77	0.1971	964.0	740.9

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
