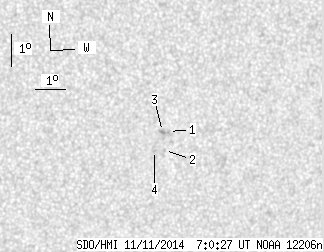

SDO HMI 2014-11-11 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.21 | 0.00 | 3.49 | -13.89 | 22.60 | 22.48 | 231.91 | 0.4737 | 744.8 | 676.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.63 | -13.63 | 22.80 | 22.68 | 232.58 | 0.4737 | 815.0 | 728.8 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -14.22 | 22.72 | 22.61 | 231.49 | 0.4782 | 567.0 | 468.3 | |
| 0.00 | 2.33 | 0.00 | 1.31 | -13.62 | 22.60 | 22.48 | 232.35 | 0.4713 | 1019.0 | 855.6 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -14.21 | 22.39 | 22.27 | 231.10 | 0.4741 | 578.0 | 527.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
