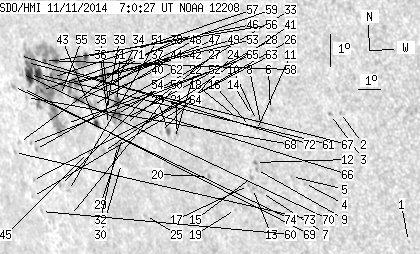

SDO HMI 2014-11-11 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.59 | 308.21 | 44.51 | 269.12 | -10.89 | 306.21 | -53.91 | 105.67 | 0.8255 | -37.2 | -264.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.41 | -14.89 | 320.32 | -39.80 | 115.81 | 0.6895 | -455.0 | -376.0 | |
| 0.00 | 1.03 | 0.00 | 0.71 | -10.98 | 318.36 | -41.76 | 109.56 | 0.6961 | 664.0 | 510.9 | |
| 0.00 | 1.46 | 0.00 | 1.01 | -11.06 | 317.94 | -42.18 | 109.49 | 0.7014 | 699.0 | 530.5 | |
| 0.00 | 1.03 | 0.00 | 0.74 | -13.24 | 316.41 | -43.70 | 111.80 | 0.7267 | 742.0 | 586.9 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -13.05 | 315.90 | -44.21 | 111.34 | 0.7317 | 481.0 | 378.1 | |
| 0.00 | 1.21 | 0.00 | 0.87 | -11.01 | 315.44 | -44.68 | 108.48 | 0.7300 | 660.0 | 618.6 | |
| 0.00 | 1.46 | 0.00 | 1.09 | -13.60 | 314.47 | -45.64 | 111.50 | 0.7493 | 563.0 | 512.6 | |
| 0.00 | 1.29 | 0.00 | 0.94 | -11.55 | 314.94 | -45.17 | 109.02 | 0.7373 | 653.0 | 528.9 | |
| 0.00 | 1.03 | 0.00 | 0.77 | -12.89 | 314.43 | -45.69 | 110.57 | 0.7474 | 726.0 | 611.1 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -11.37 | 314.77 | -45.35 | 108.72 | 0.7388 | 662.0 | 618.6 | |
| 0.00 | 1.21 | 0.00 | 0.89 | -11.68 | 314.70 | -45.42 | 109.10 | 0.7405 | 611.0 | 512.7 | |
| 0.00 | 1.72 | 0.00 | 1.28 | -12.67 | 314.43 | -45.68 | 110.30 | 0.7466 | 813.0 | 657.2 | |
| 0.00 | 1.29 | 0.00 | 0.97 | -13.49 | 314.10 | -46.01 | 111.22 | 0.7529 | 632.0 | 567.5 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -11.22 | 314.62 | -45.49 | 108.48 | 0.7399 | 560.0 | 504.4 | |
| 0.00 | 1.72 | 0.00 | 1.29 | -13.15 | 314.15 | -45.97 | 110.80 | 0.7513 | 668.0 | 480.6 | |
| 0.00 | 0.60 | 0.00 | 0.44 | -11.57 | 314.46 | -45.65 | 108.87 | 0.7427 | 498.0 | 460.3 | |
| 0.00 | 1.12 | 0.00 | 0.84 | -13.40 | 313.95 | -46.17 | 111.05 | 0.7542 | 475.0 | 388.1 | |
| 0.00 | 0.43 | 0.00 | 0.32 | -11.34 | 313.94 | -46.17 | 108.40 | 0.7478 | 289.0 | 264.0 | |
| 0.00 | 0.69 | 0.00 | 0.53 | -14.18 | 313.16 | -46.95 | 111.74 | 0.7651 | 327.0 | 389.2 | |
| 0.00 | 1.72 | 0.00 | 1.34 | -13.20 | 312.20 | -47.91 | 110.17 | 0.7721 | 512.0 | 439.3 | |
| 0.00 | 1.21 | 0.00 | 0.95 | -11.93 | 311.05 | -49.06 | 108.21 | 0.7804 | 707.0 | 612.6 | |
| 0.00 | 0.86 | 0.00 | 0.68 | -12.09 | 310.92 | -49.20 | 108.36 | 0.7822 | 517.0 | 499.6 | |
| 1.38 | 3.19 | 1.10 | 2.53 | -11.88 | 310.69 | -49.43 | 108.04 | 0.7840 | 710.2 | 531.2 | |
| 0.00 | 0.86 | 0.00 | 0.69 | -11.93 | 310.30 | -49.82 | 107.98 | 0.7881 | 534.0 | 434.1 | |
| 0.00 | 1.21 | 0.00 | 1.01 | -14.56 | 308.81 | -51.30 | 110.72 | 0.8099 | 146.0 | 214.8 | |
| 0.00 | 1.38 | 0.00 | 1.13 | -11.89 | 309.11 | -51.00 | 107.59 | 0.8000 | 602.0 | 519.4 | |
| 0.00 | 1.03 | 0.00 | 0.86 | -11.73 | 308.67 | -51.45 | 107.26 | 0.8041 | 663.0 | 481.0 | |
| 0.00 | 0.60 | 0.00 | 0.50 | -11.57 | 308.71 | -51.41 | 107.08 | 0.8033 | 284.0 | 420.4 | |
| 0.00 | 0.95 | 0.00 | 0.79 | -12.17 | 308.40 | -51.71 | 107.72 | 0.8078 | 441.0 | 357.0 | |
| 0.00 | 0.52 | 0.00 | 0.44 | -12.98 | 308.12 | -52.00 | 108.62 | 0.8125 | 362.0 | 288.2 | |
| 3.71 | 7.32 | 3.08 | 6.09 | -11.06 | 308.45 | -51.67 | 106.39 | 0.8047 | 576.0 | 93.6 | |
| 0.00 | 3.02 | 0.00 | 2.54 | -12.43 | 308.08 | -52.03 | 107.95 | 0.8115 | 460.0 | 340.8 | |
| 4.31 | 11.55 | 3.59 | 9.64 | -11.47 | 308.30 | -51.82 | 106.84 | 0.8072 | 722.9 | 496.8 | |
| 0.00 | 0.86 | 0.00 | 0.71 | -10.48 | 308.49 | -51.62 | 105.70 | 0.8030 | 490.0 | 433.6 | |
| 0.00 | 1.12 | 0.00 | 0.94 | -11.33 | 307.99 | -52.13 | 106.59 | 0.8099 | 313.0 | 217.8 | |
| 0.00 | 1.72 | 0.00 | 1.46 | -11.80 | 307.81 | -52.31 | 107.11 | 0.8127 | 381.0 | 306.8 | |
| 0.00 | 0.95 | 0.00 | 0.79 | -10.65 | 308.06 | -52.06 | 105.79 | 0.8077 | -214.0 | -179.5 | |
| 0.00 | 3.10 | 0.00 | 2.58 | -10.25 | 308.16 | -51.96 | 105.33 | 0.8059 | 573.0 | 383.1 | |
| 0.00 | 1.90 | 0.00 | 1.60 | -11.46 | 307.75 | -52.36 | 106.69 | 0.8125 | 382.0 | 269.3 | |
| 0.00 | 1.72 | 0.00 | 1.45 | -10.84 | 307.91 | -52.20 | 105.99 | 0.8096 | -453.0 | -430.9 | |
| 0.00 | 2.07 | 0.00 | 1.78 | -12.65 | 307.32 | -52.80 | 108.00 | 0.8194 | -264.0 | -231.5 | |
| 1.38 | 4.22 | 1.16 | 3.54 | -10.33 | 307.89 | -52.23 | 105.35 | 0.8087 | 372.8 | 239.7 | |
| 2.33 | 4.39 | 2.00 | 3.77 | -11.79 | 307.21 | -52.91 | 106.95 | 0.8185 | 430.5 | 306.8 | |
| 0.00 | 9.48 | 0.00 | 8.11 | -11.24 | 307.16 | -52.96 | 106.28 | 0.8178 | -31.0 | -66.2 | |
| 0.00 | 1.12 | 0.00 | 0.98 | -12.72 | 306.53 | -53.59 | 107.86 | 0.8270 | 145.0 | 52.2 | |
| 1.98 | 14.56 | 1.68 | 12.44 | -9.75 | 307.18 | -52.94 | 104.48 | 0.8145 | 196.7 | -455.9 | |
| 0.00 | 1.38 | 0.00 | 1.18 | -10.83 | 306.91 | -53.20 | 105.72 | 0.8193 | -509.0 | -352.9 | |
| 3.79 | 26.54 | 3.29 | 23.07 | -11.12 | 306.48 | -53.64 | 105.96 | 0.8241 | 101.4 | -505.7 | |
| 4.57 | -48.00 | 3.97 | -48.00 | -10.61 | 306.41 | -53.71 | 105.33 | 0.8237 | -771.4 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.48 | -14.74 | 304.87 | -55.24 | 109.78 | 0.8465 | -593.0 | -495.7 | |
| 0.00 | 1.21 | 0.00 | 1.10 | -13.96 | 305.06 | -55.06 | 108.92 | 0.8431 | -727.0 | -591.6 | |
| 0.00 | 1.64 | 0.00 | 1.46 | -11.87 | 305.64 | -54.48 | 106.63 | 0.8334 | -222.0 | -208.9 | |
| 1.46 | 156.06 | 1.29 | 140.86 | -10.67 | 305.77 | -54.35 | 105.25 | 0.8298 | -767.4 | -493.2 | |
| 0.00 | 1.90 | 0.00 | 1.75 | -13.82 | 304.68 | -55.44 | 108.66 | 0.8462 | -576.0 | -529.0 | |
| 0.00 | 1.55 | 0.00 | 1.38 | -11.01 | 305.57 | -54.54 | 105.61 | 0.8324 | -480.0 | -450.0 | |
| 2.93 | -53.00 | 2.59 | -53.00 | -9.94 | 305.59 | -54.52 | 104.35 | 0.8301 | -786.8 | 999999 | |
| 1.98 | -53.00 | 1.77 | -53.00 | -10.48 | 305.30 | -54.82 | 104.91 | 0.8339 | -843.7 | 999999 | |
| 1.12 | -53.00 | 1.00 | -53.00 | -9.97 | 305.01 | -55.11 | 104.25 | 0.8357 | -674.6 | 999999 | |
| 0.95 | -53.00 | 0.86 | -53.00 | -10.91 | 304.59 | -55.52 | 105.26 | 0.8412 | -702.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 1.00 | -14.70 | 303.29 | -56.83 | 109.31 | 0.8600 | -349.0 | -262.5 | |
| 7.15 | -53.00 | 6.50 | -53.00 | -10.42 | 304.57 | -55.55 | 104.68 | 0.8405 | -775.9 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.57 | -12.76 | 303.68 | -56.44 | 107.19 | 0.8528 | -630.0 | -577.7 | |
| 0.00 | 0.34 | 0.00 | 0.33 | -13.74 | 303.16 | -56.96 | 108.19 | 0.8592 | -334.0 | -371.2 | |
| 0.00 | 0.78 | 0.00 | 0.75 | -14.25 | 302.96 | -57.16 | 108.71 | 0.8619 | -363.0 | -293.2 | |
| 0.00 | 1.12 | 0.00 | 1.06 | -12.59 | 303.46 | -56.65 | 106.94 | 0.8544 | -436.0 | -343.3 | |
| 10.60 | -53.00 | 9.76 | -53.00 | -10.44 | 304.07 | -56.04 | 104.60 | 0.8451 | -584.3 | 999999 | |
| 0.95 | -53.00 | 0.87 | -53.00 | -10.08 | 304.01 | -56.11 | 104.16 | 0.8450 | -437.5 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.97 | -11.16 | 303.70 | -56.42 | 105.36 | 0.8497 | -428.0 | -369.1 | |
| 0.00 | 0.95 | 0.00 | 0.89 | -10.90 | 303.56 | -56.56 | 105.01 | 0.8505 | -340.0 | -303.5 | |
| 0.00 | 2.59 | 0.00 | 2.41 | -10.43 | 303.64 | -56.48 | 104.50 | 0.8490 | -282.0 | -187.1 | |
| 0.00 | 1.90 | 0.00 | 1.83 | -12.58 | 302.84 | -57.27 | 106.80 | 0.8597 | -417.0 | -335.6 | |
| 0.00 | 0.78 | 0.00 | 0.72 | -9.88 | 303.68 | -56.44 | 103.87 | 0.8477 | -137.0 | -156.6 | |
| 0.00 | 1.29 | 0.00 | 1.26 | -12.91 | 302.44 | -57.68 | 107.08 | 0.8637 | -437.0 | -346.7 | |
| 0.00 | 1.55 | 0.00 | 1.47 | -10.86 | 303.07 | -57.05 | 104.86 | 0.8547 | -486.0 | -386.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
