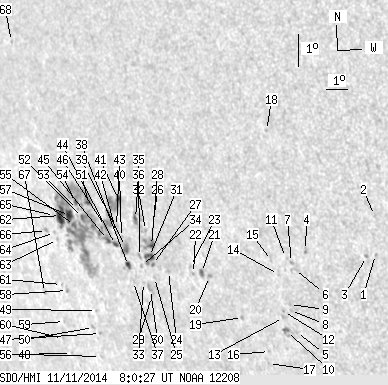

SDO HMI 2014-11-11 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.81 | 329.25 | 37.23 | 282.91 | -10.80 | 306.33 | -53.24 | 105.73 | 0.8189 | -17.0 | -268.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.76 | -11.00 | 318.38 | -41.19 | 109.80 | 0.6894 | 674.0 | 471.8 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -9.80 | 318.54 | -41.04 | 108.18 | 0.6833 | 647.0 | 516.5 | |
| 0.00 | 1.46 | 0.00 | 1.00 | -11.07 | 318.00 | -41.57 | 109.75 | 0.6942 | 702.0 | 513.1 | |
| 0.00 | 1.72 | 0.00 | 1.23 | -10.99 | 315.49 | -44.08 | 108.66 | 0.7231 | 685.0 | 613.0 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -13.55 | 314.55 | -45.02 | 111.67 | 0.7423 | 607.0 | 514.2 | |
| 0.00 | 3.45 | 0.00 | 2.50 | -11.59 | 314.91 | -44.67 | 109.25 | 0.7318 | 645.0 | 464.6 | |
| 0.00 | 1.38 | 0.00 | 1.00 | -11.38 | 314.82 | -44.75 | 108.94 | 0.7320 | 684.0 | 630.3 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -12.87 | 314.45 | -45.12 | 110.76 | 0.7410 | 697.0 | 595.0 | |
| 0.00 | 1.55 | 0.00 | 1.14 | -12.69 | 314.45 | -45.12 | 110.52 | 0.7404 | 834.0 | 605.3 | |
| 0.00 | 5.00 | 0.00 | 3.71 | -13.53 | 314.12 | -45.45 | 111.48 | 0.7469 | 717.0 | 581.2 | |
| 0.00 | 0.52 | 0.00 | 0.38 | -11.24 | 314.59 | -44.98 | 108.67 | 0.7342 | 496.0 | 488.8 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -12.91 | 314.14 | -45.43 | 110.69 | 0.7446 | 591.0 | 447.4 | |
| 0.00 | 2.15 | 0.00 | 1.60 | -13.10 | 314.09 | -45.48 | 110.92 | 0.7457 | 657.0 | 412.0 | |
| 0.00 | 1.21 | 0.00 | 0.89 | -11.77 | 314.18 | -45.39 | 109.23 | 0.7405 | 232.0 | 239.2 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -11.35 | 313.96 | -45.61 | 108.61 | 0.7416 | 439.0 | 500.0 | |
| 0.00 | 1.12 | 0.00 | 0.85 | -14.19 | 313.20 | -46.37 | 111.97 | 0.7590 | 334.0 | 326.5 | |
| 0.00 | 0.69 | 0.00 | 0.52 | -14.57 | 313.05 | -46.52 | 112.39 | 0.7619 | 444.0 | 397.6 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -7.39 | 314.42 | -45.15 | 103.47 | 0.7253 | 614.0 | 535.8 | |
| 0.00 | 1.64 | 0.00 | 1.26 | -13.18 | 312.25 | -47.32 | 110.35 | 0.7657 | 505.0 | 454.3 | |
| 0.00 | 2.07 | 0.00 | 1.61 | -11.97 | 311.05 | -48.52 | 108.42 | 0.7748 | 752.0 | 646.3 | |
| 1.29 | 3.19 | 1.01 | 2.50 | -11.86 | 310.71 | -48.86 | 108.18 | 0.7781 | 700.0 | 529.1 | |
| 0.00 | 0.78 | 0.00 | 0.61 | -11.91 | 310.33 | -49.25 | 108.12 | 0.7822 | 463.0 | 462.0 | |
| 0.00 | 1.03 | 0.00 | 0.82 | -11.70 | 310.24 | -49.33 | 107.83 | 0.7826 | 216.0 | 231.9 | |
| 0.00 | 1.55 | 0.00 | 1.26 | -11.90 | 309.15 | -50.43 | 107.76 | 0.7942 | 626.0 | 515.3 | |
| 0.00 | 1.21 | 0.00 | 1.00 | -12.12 | 308.41 | -51.16 | 107.81 | 0.8021 | 456.0 | 387.3 | |
| 0.00 | 0.78 | 0.00 | 0.63 | -10.60 | 308.70 | -50.87 | 106.04 | 0.7957 | 510.0 | 430.9 | |
| 0.00 | 1.55 | 0.00 | 1.28 | -11.72 | 308.42 | -51.15 | 107.33 | 0.8011 | 550.0 | 530.9 | |
| 1.72 | 11.20 | 1.41 | 9.20 | -11.13 | 308.52 | -51.05 | 106.64 | 0.7987 | 721.1 | 170.4 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -12.71 | 308.10 | -51.47 | 108.45 | 0.8067 | 369.0 | 334.7 | |
| 0.00 | 4.05 | 0.00 | 3.37 | -12.50 | 308.11 | -51.46 | 108.19 | 0.8061 | 526.0 | 323.3 | |
| 3.96 | 8.70 | 3.27 | 7.18 | -11.48 | 308.34 | -51.23 | 107.01 | 0.8013 | 739.7 | 530.3 | |
| 0.00 | 1.46 | 0.00 | 1.20 | -10.68 | 308.34 | -51.23 | 106.04 | 0.7995 | 493.0 | 401.5 | |
| 0.00 | 0.78 | 0.00 | 0.65 | -12.30 | 307.82 | -51.75 | 107.86 | 0.8084 | 172.0 | 103.3 | |
| 0.00 | 1.03 | 0.00 | 0.86 | -11.77 | 307.87 | -51.70 | 107.24 | 0.8067 | 418.0 | 358.6 | |
| 0.00 | 1.72 | 0.00 | 1.44 | -11.50 | 307.84 | -51.73 | 106.90 | 0.8063 | 418.0 | 279.5 | |
| 1.21 | 6.98 | 1.00 | 5.76 | -10.33 | 307.94 | -51.64 | 105.51 | 0.8028 | 390.7 | 315.0 | |
| 0.00 | 0.86 | 0.00 | 0.73 | -12.29 | 307.33 | -52.24 | 107.71 | 0.8132 | 120.0 | 92.1 | |
| 2.41 | 4.74 | 2.04 | 4.01 | -11.80 | 307.22 | -52.36 | 107.10 | 0.8132 | 419.5 | 120.9 | |
| 0.00 | 8.96 | 0.00 | 7.56 | -11.22 | 307.22 | -52.35 | 106.40 | 0.8118 | -304.0 | -97.8 | |
| 0.00 | 1.38 | 0.00 | 1.17 | -10.95 | 307.09 | -52.48 | 106.04 | 0.8125 | -493.0 | -391.6 | |
| 3.27 | 183.63 | 2.74 | 161.84 | -9.79 | 307.22 | -52.35 | 104.67 | 0.8087 | 102.3 | -524.2 | |
| 0.00 | 1.55 | 0.00 | 1.32 | -10.81 | 306.88 | -52.69 | 105.82 | 0.8143 | -415.0 | -371.7 | |
| 0.00 | 1.64 | 0.00 | 1.39 | -10.62 | 306.93 | -52.65 | 105.60 | 0.8134 | -418.0 | -364.6 | |
| 1.72 | -41.00 | 1.47 | -41.00 | -11.18 | 306.73 | -52.84 | 106.23 | 0.8165 | 59.4 | 999999 | |
| 2.24 | -41.00 | 1.93 | -41.00 | -11.05 | 306.36 | -53.21 | 105.97 | 0.8198 | -91.0 | 999999 | |
| 1.12 | -41.00 | 0.96 | -41.00 | -10.65 | 306.36 | -53.21 | 105.50 | 0.8189 | -740.2 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.01 | -14.00 | 305.09 | -54.48 | 109.12 | 0.8380 | -717.0 | -621.5 | |
| 0.00 | 0.52 | 0.00 | 0.47 | -14.72 | 304.82 | -54.75 | 109.89 | 0.8421 | -563.0 | -539.8 | |
| 0.00 | 0.86 | 0.00 | 0.77 | -13.28 | 305.12 | -54.45 | 108.30 | 0.8362 | -604.0 | -511.4 | |
| 0.00 | 1.64 | 0.00 | 1.49 | -13.83 | 304.78 | -54.80 | 108.83 | 0.8405 | -653.0 | -583.2 | |
| 2.24 | 34.12 | 1.95 | 30.00 | -9.95 | 305.67 | -53.90 | 104.49 | 0.8242 | -836.6 | -323.3 | |
| 1.46 | -41.00 | 1.29 | -41.00 | -10.43 | 305.24 | -54.33 | 104.96 | 0.8292 | -855.9 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.38 | -10.19 | 305.04 | -54.53 | 104.64 | 0.8307 | -712.0 | -620.2 | |
| 1.38 | -51.00 | 1.22 | -51.00 | -9.98 | 304.99 | -54.58 | 104.38 | 0.8308 | -645.2 | 999999 | |
| 1.90 | -41.00 | 1.69 | -41.00 | -10.69 | 304.75 | -54.82 | 105.16 | 0.8343 | -776.6 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.57 | -14.71 | 303.24 | -56.33 | 109.44 | 0.8557 | -321.0 | -266.4 | |
| 6.98 | -41.00 | 6.26 | -41.00 | -10.40 | 304.56 | -55.01 | 104.77 | 0.8355 | -796.1 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.44 | -12.73 | 303.75 | -55.82 | 107.31 | 0.8473 | -591.0 | -553.6 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -13.71 | 303.24 | -56.33 | 108.31 | 0.8538 | -280.0 | -284.3 | |
| 0.00 | 1.03 | 0.00 | 0.99 | -14.26 | 302.92 | -56.65 | 108.85 | 0.8576 | -421.0 | -330.1 | |
| 0.00 | 0.43 | 0.00 | 0.40 | -12.56 | 303.48 | -56.09 | 107.04 | 0.8494 | -506.0 | -464.0 | |
| 9.91 | -41.00 | 8.99 | -41.00 | -10.42 | 304.08 | -55.49 | 104.69 | 0.8400 | -599.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.95 | -11.17 | 303.70 | -55.87 | 105.48 | 0.8448 | -439.0 | -373.7 | |
| 0.00 | 1.03 | 0.00 | 0.95 | -10.96 | 303.60 | -55.97 | 105.22 | 0.8453 | -355.0 | -336.2 | |
| 0.00 | 1.72 | 0.00 | 1.58 | -10.44 | 303.75 | -55.82 | 104.64 | 0.8430 | -138.0 | -151.2 | |
| 0.00 | 1.81 | 0.00 | 1.69 | -10.92 | 303.17 | -56.40 | 105.08 | 0.8491 | -619.0 | -476.9 | |
| 0.00 | 1.21 | 0.00 | 1.16 | -12.86 | 302.43 | -57.14 | 107.13 | 0.8591 | -405.0 | -284.6 | |
| 0.00 | 1.03 | 0.00 | 0.96 | -5.24 | 302.50 | -57.07 | 98.32 | 0.8468 | 459.0 | 389.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
