group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12205	175.02	717.72	91.06	374.05	14.69	12.71	13.68	311.74	0.3084	-361.4	-175.8

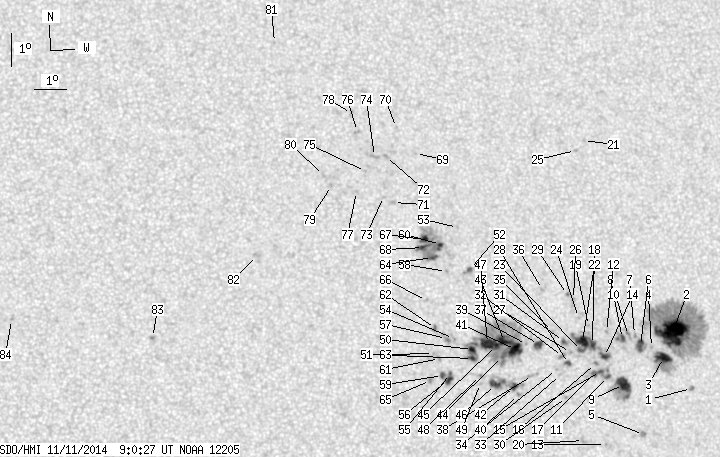

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-11-11 09:00:27 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	2.67	0.00	1.41	12.94	16.45	17.42	300.28	0.3394	-1110.0	-910.5
2	46.27	227.64	24.42	120.35	14.64	15.97	16.94	305.26	0.3469	-1321.1	-313.8
3	9.31	31.36	4.89	16.47	13.89	15.62	16.60	303.91	0.3356	-1205.1	-585.0
4	0.00	0.95	0.00	0.50	14.20	15.26	16.24	305.25	0.3334	-1021.0	-807.9
5	0.00	3.02	0.00	1.57	11.58	14.83	15.81	298.77	0.3058	-926.0	-873.9
6	5.26	10.34	2.76	5.42	14.26	14.92	15.89	305.98	0.3294	-1161.3	-893.9
7	0.00	1.72	0.00	0.90	14.60	14.75	15.73	307.10	0.3303	-677.0	-679.1
8	0.00	3.45	0.00	1.81	14.57	14.56	15.53	307.36	0.3275	-719.0	-728.3
9	12.92	33.52	6.73	17.44	13.09	14.30	15.27	303.91	0.3105	-1128.7	-611.8
10	1.81	7.41	0.95	3.88	14.48	14.36	15.33	307.47	0.3241	-1130.2	-872.7
11	1.12	11.80	0.58	6.14	13.34	13.81	14.78	305.43	0.3060	-1088.9	-867.0
12	0.00	1.55	0.00	0.81	14.70	13.87	14.84	308.90	0.3198	-857.0	-653.8
13	0.00	0.69	0.00	0.36	11.30	13.63	14.60	299.77	0.2860	-906.0	-667.2
14	3.62	39.12	1.89	20.36	13.95	13.75	14.73	307.16	0.3109	-1185.0	-790.8
15	1.38	-11.00	0.72	-11.00	13.50	13.60	14.57	306.22	0.3046	-1211.2	999999
16	0.00	1.72	0.00	0.90	13.74	13.46	14.43	307.14	0.3050	-1057.0	-807.9
17	1.90	-11.00	0.98	-11.00	13.44	13.40	14.38	306.42	0.3015	-1103.2	999999
18	3.71	-14.00	1.93	-14.00	14.32	13.40	14.37	308.77	0.3099	-1057.7	999999
19	0.00	0.86	0.00	0.45	14.89	13.31	14.28	310.41	0.3146	-756.0	-616.4
20	0.00	3.79	0.00	1.95	11.43	12.94	13.92	301.32	0.2772	-720.0	-464.8
21	0.00	1.03	0.00	0.55	20.57	13.63	14.60	321.71	0.3825	-820.0	-683.8
22	9.22	-14.00	4.80	-14.00	14.41	13.09	14.06	309.61	0.3068	-1282.1	999999
23	1.81	-14.00	0.94	-14.00	14.14	13.04	14.01	308.99	0.3035	-1085.0	999999
24	0.00	1.38	0.00	0.72	15.14	13.01	13.98	311.61	0.3134	-845.0	-680.4
25	0.00	1.12	0.00	0.60	20.26	13.33	14.31	321.71	0.3758	-818.0	-668.2
26	0.00	1.90	0.00	0.99	15.69	12.89	13.86	313.18	0.3178	-850.0	-564.8
27	0.00	1.21	0.00	0.63	14.08	12.69	13.66	309.53	0.2984	-962.0	-713.2
28	1.55	3.10	0.80	1.61	13.75	12.61	13.58	308.80	0.2940	-490.4	-278.7
29	0.00	1.55	0.00	0.81	15.84	12.71	13.68	313.91	0.3173	-1108.0	-927.5
30	0.00	1.03	0.00	0.53	12.73	12.48	13.46	306.14	0.2823	947.0	698.5
31	1.12	3.71	0.58	1.92	14.42	12.49	13.46	310.82	0.2993	-1142.8	-947.9
32	0.00	2.93	0.00	1.52	13.97	12.43	13.40	309.73	0.2938	-1048.0	-827.5
33	0.00	1.12	0.00	0.58	13.43	12.33	13.31	308.43	0.2871	503.0	325.8
34	0.00	0.86	0.00	0.45	13.58	12.22	13.19	309.10	0.2871	-827.0	-581.6
35	0.00	0.95	0.00	0.49	14.73	12.16	13.14	312.29	0.2985	-861.0	-675.0
36	0.00	1.46	0.00	0.76	16.01	11.93	12.90	315.93	0.3100	-996.0	-793.4
37	3.96	6.03	2.05	3.12	14.34	11.70	12.67	312.28	0.2885	-1121.8	-791.8
38	0.00	4.22	0.00	2.17	13.41	11.46	12.43	310.23	0.2755	-840.0	-585.7
39	0.00	0.69	0.00	0.36	14.35	11.32	12.30	313.12	0.2839	468.0	377.0
40	0.00	1.90	0.00	0.97	12.84	10.99	11.97	309.62	0.2636	842.0	648.1
41	12.15	155.52	6.26	80.07	14.20	10.97	11.94	313.54	0.2780	-1112.6	90.5
42	2.93	24.47	1.50	12.55	13.08	10.88	11.85	310.60	0.2647	911.5	308.3
43	8.70	-41.00	4.48	-41.00	14.45	10.64	11.61	314.98	0.2768	811.9	999999
44	0.95	-41.00	0.49	-41.00	13.99	10.55	11.53	313.97	0.2706	-862.7	999999
45	3.62	-41.00	1.86	-41.00	14.33	10.38	11.36	315.29	0.2724	1011.6	999999
46	5.17	-42.00	2.65	-42.00	13.15	10.29	11.27	312.21	0.2580	993.6	999999
47	11.55	-41.00	5.94	-41.00	14.39	10.10	11.08	316.15	0.2699	1190.2	999999
48	0.00	1.90	0.00	0.97	13.43	9.84	10.81	314.16	0.2555	-1113.0	-811.5
49	0.00	1.03	0.00	0.53	13.19	9.83	10.80	313.48	0.2526	-777.0	-638.7
50	3.53	-41.00	1.81	-41.00	14.22	9.63	10.60	316.91	0.2623	956.2	999999
51	2.33	-41.00	1.19	-41.00	13.94	9.61	10.59	316.21	0.2589	-746.0	999999
52	1.03	3.96	0.54	2.05	16.64	9.66	10.64	322.70	0.2931	-1077.5	-800.7
53	0.00	1.21	0.00	0.63	17.93	9.36	10.33	326.09	0.3073	840.0	764.1
54	0.00	2.93	0.00	1.50	14.55	9.05	10.03	319.37	0.2599	768.0	723.4
55	0.26	10.68	0.13	5.45	13.50	8.91	9.88	316.88	0.2453	845.7	803.2
56	3.62	-55.00	1.85	-55.00	13.32	8.84	9.82	316.55	0.2423	1087.7	999999
57	0.00	5.34	0.00	2.74	14.56	8.83	9.81	319.98	0.2576	967.0	832.1
58	0.00	1.12	0.00	0.58	16.59	8.94	9.91	324.48	0.2852	786.0	689.8
59	1.55	-55.00	0.79	-55.00	13.44	8.66	9.63	317.43	0.2417	1124.6	999999
60	1.64	54.54	0.85	28.24	17.42	8.79	9.77	326.56	0.2950	1020.0	16.0
61	0.00	2.33	0.00	1.19	13.95	8.59	9.56	319.08	0.2473	1059.0	802.7
62	0.52	2.76	0.26	1.41	14.86	8.51	9.48	321.70	0.2580	955.7	806.6
63	0.00	0.78	0.00	0.40	14.11	8.41	9.38	320.02	0.2473	906.0	701.9
64	2.84	-60.00	1.47	-60.00	17.02	8.52	9.49	326.51	0.2871	1074.1	999999
65	0.00	1.98	0.00	1.01	13.29	8.28	9.26	318.12	0.2356	1147.0	938.8
66	0.00	1.81	0.00	0.93	15.72	8.26	9.24	324.43	0.2669	850.0	628.7
67	3.19	-60.00	1.65	-60.00	17.58	8.30	9.27	328.20	0.2927	-1082.5	999999
68	4.48	-60.00	2.32	-60.00	17.33	8.25	9.22	327.86	0.2889	-742.1	999999
69	0.00	0.69	0.00	0.36	20.23	8.16	9.13	332.99	0.3295	717.0	550.8
70	0.00	0.86	0.00	0.45	21.04	7.60	8.57	335.53	0.3374	698.0	543.4
71	0.00	2.58	0.00	1.34	18.72	7.38	8.35	332.74	0.3016	824.0	701.8
72	0.00	1.81	0.00	0.95	20.15	7.20	8.17	335.35	0.3213	1008.0	847.9
73	0.00	0.69	0.00	0.36	18.91	7.07	8.04	333.89	0.3020	660.0	562.4
74	0.00	3.71	0.00	1.94	20.15	6.84	7.82	336.28	0.3189	936.0	807.7
75	0.00	0.95	0.00	0.49	19.69	6.54	7.51	336.50	0.3099	808.0	701.0
76	0.00	2.41	0.00	1.26	20.93	6.34	7.32	338.61	0.3276	770.0	590.2
77	0.00	1.46	0.00	0.76	19.07	6.22	7.19	336.53	0.2985	793.0	567.5
78	0.00	2.50	0.00	1.31	21.49	6.18	7.15	339.69	0.3352	643.0	582.1
79	0.00	1.55	0.00	0.80	19.26	5.44	6.41	339.07	0.2965	851.0	743.4
80	0.00	1.29	0.00	0.67	19.57	5.20	6.17	340.17	0.2999	818.0	678.3
81	0.00	0.86	0.00	0.46	23.75	3.79	4.76	347.74	0.3596	739.0	560.2
82	0.00	3.27	0.00	1.67	17.13	3.02	3.99	344.48	0.2497	904.0	802.6
83	0.00	2.07	0.00	1.04	14.64	359.77	0.75	356.34	0.1984	897.0	736.9
84	0.00	0.86	0.00	0.44	15.19	355.44	-3.59	16.31	0.2161	861.0	734.3

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
