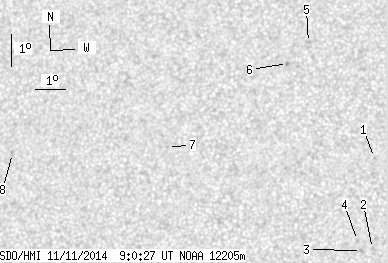

SDO HMI 2014-11-11 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.48 | 0.00 | 5.16 | 19.40 | 340.40 | -18.62 | 46.55 | 0.4149 | -99.4 | 80.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.32 | 19.14 | 344.11 | -14.92 | 41.47 | 0.3688 | -767.0 | -636.3 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 16.35 | 344.28 | -14.75 | 46.97 | 0.3356 | -932.0 | -712.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 16.28 | 343.93 | -15.09 | 47.76 | 0.3391 | -914.0 | -751.9 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 16.59 | 343.78 | -15.25 | 47.35 | 0.3442 | -851.0 | -661.4 | |
| 0.00 | 2.07 | 0.00 | 1.14 | 22.69 | 341.53 | -17.49 | 39.64 | 0.4366 | 841.0 | 623.5 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 22.02 | 340.91 | -18.11 | 41.66 | 0.4354 | 888.0 | 741.1 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 19.34 | 337.22 | -21.80 | 51.33 | 0.4508 | 614.0 | 541.6 | |
| 0.00 | 1.64 | 0.00 | 0.94 | 19.04 | 331.91 | -27.11 | 57.21 | 0.5146 | 326.0 | 454.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
