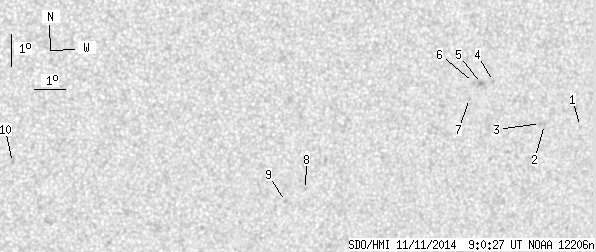

SDO HMI 2014-11-11 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.49 | 0.00 | 7.06 | -14.88 | 20.98 | 21.95 | 228.50 | 0.4812 | 257.0 | 282.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.71 | -15.10 | 26.35 | 27.32 | 235.10 | 0.5425 | 340.0 | 292.4 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -15.00 | 25.10 | 26.07 | 234.03 | 0.5266 | 659.0 | 541.6 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -14.97 | 24.95 | 25.93 | 233.95 | 0.5246 | 726.0 | 623.7 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -13.61 | 23.20 | 24.18 | 234.33 | 0.4920 | 597.0 | 485.9 | |
| 0.00 | 2.67 | 0.00 | 1.51 | -13.67 | 22.81 | 23.78 | 233.80 | 0.4875 | 841.0 | 760.3 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -13.63 | 22.54 | 23.51 | 233.56 | 0.4839 | 822.0 | 697.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -14.12 | 22.46 | 23.43 | 232.63 | 0.4872 | 725.0 | 658.2 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -16.86 | 17.33 | 18.30 | 221.35 | 0.4568 | -680.0 | -552.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -17.23 | 16.71 | 17.69 | 219.85 | 0.4548 | -732.0 | -584.2 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -15.86 | 7.92 | 8.89 | 204.44 | 0.3611 | -728.0 | -582.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
