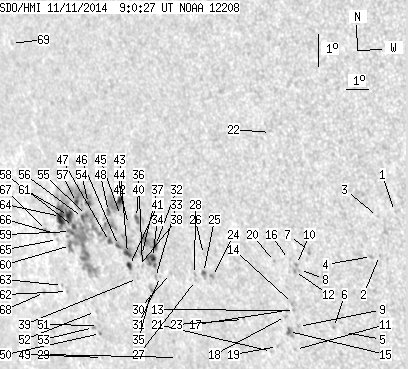

SDO HMI 2014-11-11 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.17 | 360.40 | 46.51 | 304.89 | -10.88 | 306.29 | -52.74 | 105.95 | 0.8142 | -21.2 | -263.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.34 | -9.64 | 319.21 | -39.82 | 108.44 | 0.6678 | 572.0 | 552.2 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -11.01 | 318.40 | -40.63 | 110.05 | 0.6827 | 667.0 | 526.0 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -9.82 | 318.51 | -40.51 | 108.41 | 0.6770 | 678.0 | 480.9 | |
| 0.00 | 1.46 | 0.00 | 1.00 | -11.05 | 318.07 | -40.95 | 109.97 | 0.6868 | 585.0 | 510.2 | |
| 0.00 | 0.34 | 0.00 | 0.24 | -13.45 | 316.50 | -42.53 | 112.57 | 0.7143 | 608.0 | 565.0 | |
| 0.00 | 1.12 | 0.00 | 0.79 | -13.31 | 316.07 | -42.96 | 112.20 | 0.7186 | 702.0 | 527.8 | |
| 0.00 | 2.15 | 0.00 | 1.52 | -11.00 | 315.54 | -43.48 | 108.89 | 0.7163 | 593.0 | 568.9 | |
| 0.00 | 1.12 | 0.00 | 0.80 | -11.57 | 315.01 | -44.02 | 109.46 | 0.7243 | 500.0 | 495.5 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -13.34 | 314.58 | -44.45 | 111.63 | 0.7353 | 681.0 | 622.7 | |
| 0.00 | 1.46 | 0.00 | 1.05 | -11.42 | 314.91 | -44.11 | 109.23 | 0.7250 | 710.0 | 668.5 | |
| 0.00 | 0.95 | 0.00 | 0.70 | -14.07 | 314.27 | -44.75 | 112.44 | 0.7412 | 299.0 | 305.2 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -11.64 | 314.78 | -44.24 | 109.47 | 0.7271 | 641.0 | 569.8 | |
| 0.00 | 1.38 | 0.00 | 1.00 | -12.85 | 314.52 | -44.50 | 110.96 | 0.7342 | 562.0 | 532.1 | |
| 0.00 | 1.90 | 0.00 | 1.38 | -12.64 | 314.49 | -44.54 | 110.67 | 0.7339 | 536.0 | 472.9 | |
| 1.29 | 5.34 | 0.95 | 3.92 | -13.52 | 314.11 | -44.92 | 111.66 | 0.7411 | 689.5 | 613.6 | |
| 0.00 | 0.34 | 0.00 | 0.25 | -11.28 | 314.60 | -44.43 | 108.92 | 0.7280 | 355.0 | 410.2 | |
| 0.00 | 1.46 | 0.00 | 1.07 | -12.86 | 314.18 | -44.85 | 110.85 | 0.7381 | 565.0 | 467.0 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -13.05 | 314.09 | -44.94 | 111.06 | 0.7397 | 628.0 | 511.3 | |
| 0.00 | 0.95 | 0.00 | 0.71 | -14.01 | 313.51 | -45.52 | 112.06 | 0.7493 | 553.0 | 504.5 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -11.37 | 313.98 | -45.04 | 108.82 | 0.7353 | 549.0 | 472.8 | |
| 0.00 | 1.03 | 0.00 | 0.78 | -14.17 | 313.20 | -45.83 | 112.15 | 0.7532 | 268.0 | 301.5 | |
| 0.00 | 0.34 | 0.00 | 0.24 | -7.43 | 314.47 | -44.55 | 103.69 | 0.7184 | 543.0 | 530.8 | |
| 0.00 | 0.78 | 0.00 | 0.59 | -13.22 | 312.20 | -46.83 | 110.57 | 0.7606 | 570.0 | 454.6 | |
| 0.00 | 2.07 | 0.00 | 1.59 | -11.95 | 311.11 | -47.91 | 108.59 | 0.7683 | 710.0 | 626.2 | |
| 1.12 | 4.22 | 0.87 | 3.28 | -11.84 | 310.73 | -48.30 | 108.33 | 0.7721 | 751.9 | 526.0 | |
| 0.00 | 1.12 | 0.00 | 0.86 | -11.28 | 310.86 | -48.17 | 107.67 | 0.7692 | 545.0 | 468.4 | |
| 0.00 | 0.95 | 0.00 | 0.74 | -12.11 | 310.30 | -48.73 | 108.52 | 0.7774 | 390.0 | 333.3 | |
| 0.00 | 1.21 | 0.00 | 0.94 | -11.92 | 310.30 | -48.73 | 108.29 | 0.7769 | 539.0 | 445.6 | |
| 0.00 | 0.34 | 0.00 | 0.28 | -14.55 | 308.76 | -50.27 | 111.03 | 0.7998 | 346.0 | 332.5 | |
| 0.00 | 1.46 | 0.00 | 1.17 | -11.94 | 309.17 | -49.86 | 107.97 | 0.7886 | 576.0 | 503.4 | |
| 0.00 | 0.78 | 0.00 | 0.63 | -12.05 | 308.66 | -50.36 | 107.96 | 0.7940 | 442.0 | 400.0 | |
| 2.58 | 17.92 | 2.09 | 14.54 | -11.10 | 308.66 | -50.36 | 106.80 | 0.7916 | 716.2 | 3.3 | |
| 0.00 | 1.46 | 0.00 | 1.19 | -12.10 | 308.41 | -50.61 | 107.94 | 0.7966 | 462.0 | 379.2 | |
| 2.93 | 11.72 | 2.38 | 9.54 | -11.48 | 308.43 | -50.60 | 107.19 | 0.7950 | 794.7 | 553.9 | |
| 0.34 | 3.96 | 0.28 | 3.26 | -12.51 | 308.11 | -50.92 | 108.36 | 0.8007 | 411.5 | 298.6 | |
| 0.00 | 1.12 | 0.00 | 0.92 | -11.75 | 307.87 | -51.15 | 107.37 | 0.8012 | 442.0 | 358.5 | |
| 0.00 | 2.93 | 0.00 | 2.41 | -11.44 | 307.91 | -51.12 | 107.00 | 0.8001 | 391.0 | 265.4 | |
| 0.00 | 0.78 | 0.00 | 0.64 | -11.79 | 307.67 | -51.36 | 107.36 | 0.8033 | 313.0 | 296.2 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -12.17 | 307.52 | -51.51 | 107.77 | 0.8057 | 212.0 | 243.3 | |
| 0.95 | 5.51 | 0.77 | 4.49 | -10.28 | 307.94 | -51.08 | 105.59 | 0.7970 | 417.3 | 369.8 | |
| 2.58 | 3.88 | 2.16 | 3.24 | -11.78 | 307.23 | -51.80 | 107.22 | 0.8076 | 388.7 | 241.7 | |
| 0.00 | 3.27 | 0.00 | 2.70 | -10.52 | 307.50 | -51.52 | 105.76 | 0.8020 | -303.0 | -371.8 | |
| 3.27 | 251.77 | 2.73 | 217.91 | -11.41 | 307.23 | -51.80 | 106.78 | 0.8068 | 199.2 | -463.0 | |
| 3.02 | -43.00 | 2.49 | -43.00 | -9.79 | 307.28 | -51.75 | 104.82 | 0.8027 | 133.3 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.43 | -10.26 | 307.17 | -51.86 | 105.36 | 0.8048 | -734.0 | -638.0 | |
| 1.38 | -43.00 | 1.16 | -43.00 | -11.19 | 306.84 | -52.18 | 106.40 | 0.8101 | 3.0 | 999999 | |
| 1.38 | -43.00 | 1.17 | -43.00 | -11.08 | 306.42 | -52.61 | 106.17 | 0.8140 | 120.4 | 999999 | |
| 1.55 | -43.00 | 1.30 | -43.00 | -10.16 | 306.60 | -52.43 | 105.10 | 0.8103 | -740.2 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.54 | -14.73 | 304.92 | -54.11 | 110.07 | 0.8363 | -425.0 | -460.7 | |
| 0.00 | 1.03 | 0.00 | 0.92 | -13.98 | 305.08 | -53.94 | 109.24 | 0.8331 | -687.0 | -655.1 | |
| 0.00 | 2.50 | 0.00 | 2.22 | -13.73 | 305.06 | -53.96 | 108.94 | 0.8327 | -312.0 | -382.9 | |
| 0.00 | 0.69 | 0.00 | 0.61 | -13.30 | 305.05 | -53.97 | 108.44 | 0.8318 | -611.0 | -568.0 | |
| 0.00 | 1.38 | 0.00 | 1.23 | -13.80 | 304.78 | -54.25 | 108.95 | 0.8355 | -664.0 | -606.1 | |
| 2.24 | -43.00 | 1.92 | -43.00 | -9.96 | 305.64 | -53.38 | 104.62 | 0.8192 | -795.2 | 999999 | |
| 0.26 | -43.00 | 0.22 | -43.00 | -10.34 | 305.45 | -53.58 | 105.03 | 0.8219 | -829.0 | 999999 | |
| 1.12 | -43.00 | 0.97 | -43.00 | -10.41 | 305.22 | -53.80 | 105.06 | 0.8241 | -819.8 | 999999 | |
| 1.64 | -43.00 | 1.43 | -43.00 | -9.96 | 305.03 | -54.00 | 104.48 | 0.8252 | -638.7 | 999999 | |
| 1.72 | -43.00 | 1.52 | -43.00 | -10.71 | 304.68 | -54.35 | 105.29 | 0.8299 | -806.0 | 999999 | |
| 2.15 | -43.00 | 1.91 | -43.00 | -10.87 | 304.48 | -54.55 | 105.43 | 0.8321 | -704.8 | 999999 | |
| 2.58 | -43.00 | 2.31 | -43.00 | -11.30 | 304.36 | -54.67 | 105.91 | 0.8341 | -629.3 | 999999 | |
| 7.58 | -43.00 | 6.71 | -43.00 | -10.38 | 304.50 | -54.52 | 104.86 | 0.8309 | -782.8 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.02 | -12.74 | 303.75 | -55.27 | 107.45 | 0.8424 | -637.0 | -573.3 | |
| 0.00 | 0.86 | 0.00 | 0.79 | -12.57 | 303.54 | -55.49 | 107.19 | 0.8440 | -320.0 | -319.5 | |
| 12.49 | -43.00 | 11.17 | -43.00 | -10.43 | 304.07 | -54.96 | 104.82 | 0.8351 | -591.2 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.17 | -11.15 | 303.71 | -55.32 | 105.58 | 0.8397 | -490.0 | -386.0 | |
| 0.00 | 1.21 | 0.00 | 1.10 | -10.97 | 303.60 | -55.43 | 105.35 | 0.8404 | -425.0 | -359.6 | |
| 0.00 | 2.41 | 0.00 | 2.22 | -10.90 | 303.19 | -55.84 | 105.17 | 0.8440 | -540.0 | -423.5 | |
| 0.00 | 1.21 | 0.00 | 1.14 | -12.83 | 302.46 | -56.56 | 107.24 | 0.8540 | -403.0 | -274.4 | |
| 0.00 | 0.86 | 0.00 | 0.79 | -5.28 | 302.51 | -56.52 | 98.44 | 0.8418 | 460.0 | 346.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
