Sunspot Group 12205

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12205	174.38	752.28	90.89	392.96	14.59	12.80	14.32	310.28	0.3152	-346.9	-196.0

previous or next observation for the same group / back to the solar disc

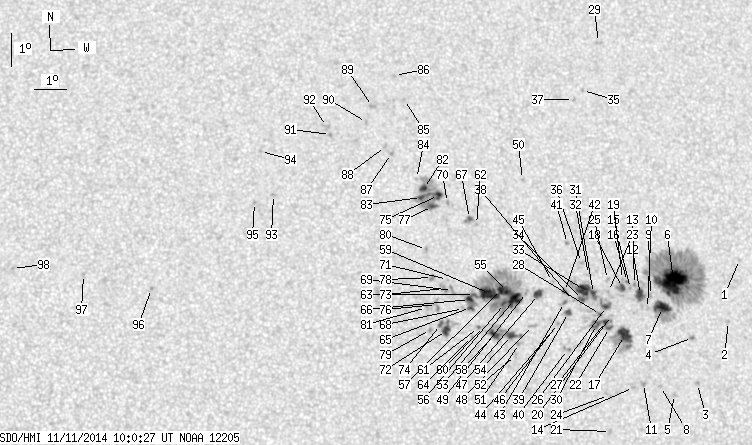

SDO HMI 2014-11-11 10:00:27 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.38	0.00	0.74	15.28	18.23	19.75	302.94	0.3901	-544.0	-398.5
2	0.00	1.12	0.00	0.60	13.41	17.70	19.22	299.21	0.3685	-814.0	-648.5
3	0.00	1.81	0.00	0.95	11.57	16.56	18.08	295.79	0.3393	-799.0	-708.1
4	0.00	1.98	0.00	1.05	12.95	16.51	18.03	299.53	0.3481	-1109.0	-924.8
5	0.00	1.90	0.00	0.99	11.25	15.81	17.33	295.81	0.3260	-771.0	-596.3
6	37.48	229.09	19.84	121.49	14.65	16.03	17.55	304.41	0.3552	-1339.4	-341.2
7	12.66	31.53	6.67	16.61	13.87	15.62	17.14	303.08	0.3429	-1168.7	-503.2
8	0.00	1.46	0.00	0.77	11.50	15.38	16.90	297.04	0.3213	-717.0	-582.9
9	0.00	1.98	0.00	1.04	14.24	15.26	16.78	304.54	0.3412	-941.0	-738.8
10	0.00	1.46	0.00	0.77	13.85	15.13	16.65	303.74	0.3361	-475.0	-427.8
11	0.00	2.50	0.00	1.30	11.60	14.85	16.37	298.03	0.3142	-949.0	-853.3
12	5.77	11.89	3.04	6.25	14.28	14.94	16.46	305.11	0.3372	-1140.3	-796.9
13	0.00	1.55	0.00	0.82	14.58	14.78	16.30	306.14	0.3377	-855.0	-645.8
14	0.00	1.29	0.00	0.67	11.48	14.53	16.05	298.14	0.3087	-882.0	-606.7
15	0.00	0.95	0.00	0.50	14.46	14.64	16.16	306.06	0.3348	-926.0	-860.2
16	0.00	1.46	0.00	0.77	14.68	14.56	16.08	306.72	0.3357	-740.0	-655.1
17	11.89	33.60	6.21	17.53	13.05	14.35	15.87	302.84	0.3184	-1135.0	-584.5
18	2.41	5.26	1.27	2.76	14.50	14.39	15.91	306.56	0.3318	-1137.8	-943.5
19	0.00	0.95	0.00	0.50	14.74	14.40	15.92	307.13	0.3343	-562.0	-474.5
20	0.00	1.03	0.00	0.54	13.66	13.98	15.50	305.07	0.3186	-961.0	-744.8
21	0.00	2.24	0.00	1.16	10.18	13.74	15.26	295.25	0.2877	-831.0	-730.6
22	1.38	17.66	0.72	9.20	13.30	13.89	15.41	304.25	0.3142	-1114.1	-818.0
23	0.00	0.86	0.00	0.45	14.38	13.93	15.45	307.03	0.3247	-922.0	-710.7
24	0.00	2.76	0.00	1.43	11.25	13.73	15.25	298.62	0.2952	-807.0	-737.4
25	0.00	1.98	0.00	1.04	14.75	13.93	15.45	307.95	0.3281	-843.0	-671.5
26	2.67	9.74	1.40	5.09	13.93	13.84	15.36	306.02	0.3192	-1197.0	-916.8
27	1.64	-22.00	0.85	-22.00	13.48	13.77	15.29	304.93	0.3143	-1166.9	999999
28	0.60	3.70	0.31	1.93	13.69	13.63	15.15	305.75	0.3143	-1022.6	-542.8
29	0.00	2.58	0.00	1.40	22.04	14.33	15.85	321.98	0.4127	-686.0	-576.5
30	3.27	-22.00	1.70	-22.00	13.39	13.48	15.00	305.19	0.3095	-1104.9	999999
31	2.07	32.22	1.08	16.81	14.33	13.45	14.97	307.73	0.3179	-1095.9	-791.7
32	0.00	1.98	0.00	1.04	14.91	13.33	14.85	309.40	0.3220	-768.0	-475.6
33	9.65	-31.00	5.03	-31.00	14.46	13.14	14.66	308.61	0.3151	-1268.6	999999
34	1.90	-31.00	0.99	-31.00	14.15	13.09	14.61	307.92	0.3114	-1122.5	999999
35	0.00	1.29	0.00	0.69	20.55	13.63	15.15	320.68	0.3880	-897.0	-659.7
36	0.00	1.98	0.00	1.04	15.27	13.14	14.66	310.67	0.3233	-905.0	-734.1
37	0.00	1.55	0.00	0.83	20.28	13.31	14.83	320.78	0.3814	-788.0	-588.4
38	0.00	1.21	0.00	0.63	14.13	12.81	14.32	308.38	0.3074	-910.0	-696.9
39	1.98	3.79	1.03	1.97	13.77	12.62	14.14	307.76	0.3015	-587.9	-292.6
40	0.00	3.27	0.00	1.69	12.65	12.53	14.05	304.81	0.2897	933.0	782.4
41	0.00	1.38	0.00	0.72	15.86	12.74	14.26	312.83	0.3244	-1078.0	-910.9
42	0.86	2.58	0.45	1.34	14.40	12.54	14.06	309.61	0.3068	-1145.1	-957.8
43	0.00	2.84	0.00	1.48	14.07	12.52	14.04	308.78	0.3031	-1112.0	-850.8
44	0.00	1.29	0.00	0.67	13.44	12.29	13.81	307.50	0.2939	374.0	120.9
45	0.00	1.03	0.00	0.54	14.71	12.18	13.70	311.11	0.3054	-881.0	-655.8
46	0.00	0.69	0.00	0.36	13.23	12.09	13.61	307.30	0.2892	572.0	389.2
47	4.31	6.46	2.23	3.35	14.33	11.71	13.23	311.05	0.2955	-1093.3	-764.2
48	0.00	2.84	0.00	1.47	13.39	11.47	12.99	309.00	0.2827	-910.0	-742.0
49	0.00	2.33	0.00	1.20	14.39	11.34	12.86	312.01	0.2915	710.0	487.3
50	0.00	1.38	0.00	0.72	17.83	11.45	12.97	319.80	0.3324	677.0	497.0
51	0.00	2.93	0.00	1.51	12.86	11.04	12.56	308.37	0.2715	731.0	543.6
52	0.00	2.33	0.00	1.19	12.50	10.89	12.41	307.59	0.2660	825.0	574.1
53	12.92	147.15	6.67	75.91	14.18	10.95	12.47	312.31	0.2844	-1013.7	89.2
54	4.22	26.97	2.17	13.86	13.10	10.80	12.32	309.61	0.2709	941.3	292.3
55	3.62	-53.00	1.87	-53.00	14.43	10.75	12.27	313.42	0.2846	686.2	999999
56	2.24	-53.00	1.16	-53.00	14.07	10.63	12.15	312.71	0.2792	-953.4	999999
57	5.26	-53.00	2.71	-53.00	14.49	10.56	12.08	314.01	0.2830	993.1	999999
58	5.26	-54.00	2.70	-54.00	13.14	10.27	11.79	310.92	0.2645	952.3	999999
59	16.71	-53.00	8.61	-53.00	14.38	10.18	11.70	314.60	0.2771	1109.5	999999
60	0.00	0.26	0.00	0.13	13.38	9.94	11.46	312.42	0.2630	-879.0	-813.0
61	0.00	1.98	0.00	1.02	13.35	9.78	11.30	312.72	0.2608	-1028.0	-825.0
62	0.00	1.03	0.00	0.54	16.48	9.89	11.41	320.41	0.2991	-897.0	-716.2
63	0.26	-53.00	0.13	-53.00	14.35	9.71	11.23	315.68	0.2713	1001.7	999999
64	0.00	1.12	0.00	0.57	13.09	9.58	11.10	312.42	0.2553	-780.0	-544.9
65	1.98	-53.00	1.02	-53.00	13.96	9.56	11.08	314.98	0.2650	-653.0	999999
66	2.93	-53.00	1.51	-53.00	14.20	9.55	11.07	315.69	0.2676	988.1	999999
67	1.03	4.31	0.54	2.23	16.66	9.68	11.20	321.33	0.2992	-1074.2	-838.5
68	0.00	1.12	0.00	0.57	13.93	9.34	10.86	315.47	0.2620	-740.0	-525.8
69	0.00	3.88	0.00	1.99	14.48	9.03	10.55	317.77	0.2649	957.0	797.5
70	0.00	1.72	0.00	0.89	17.16	9.02	10.54	324.04	0.2989	909.0	782.8
71	0.00	1.03	0.00	0.53	14.82	8.89	10.41	319.00	0.2675	653.0	534.7
72	4.74	16.11	2.42	8.24	13.28	8.79	10.31	315.07	0.2477	1081.1	550.1
73	0.00	5.00	0.00	2.56	14.54	8.75	10.27	318.68	0.2626	933.0	735.3
74	1.21	-72.00	0.62	-72.00	13.46	8.61	10.13	316.09	0.2477	1113.5	999999
75	3.45	51.35	1.79	26.62	17.37	8.75	10.27	325.18	0.2992	1018.4	-68.1
76	0.00	5.51	0.00	2.82	14.06	8.51	10.03	318.06	0.2539	819.0	776.2
77	2.50	-75.00	1.29	-75.00	17.04	8.54	10.06	325.04	0.2927	1050.6	999999
78	0.00	2.93	0.00	1.50	14.88	8.43	9.95	320.44	0.2632	1012.0	767.7
79	0.00	1.90	0.00	0.97	13.31	8.29	9.81	316.55	0.2423	1158.0	940.7
80	0.00	1.72	0.00	0.89	15.73	8.28	9.80	322.89	0.2728	840.0	673.3
81	0.00	1.90	0.00	0.97	13.98	8.20	9.72	318.71	0.2493	823.0	787.5
82	3.36	-75.00	1.74	-75.00	17.59	8.28	9.80	326.81	0.2978	-1079.3	999999
83	2.15	-75.00	1.12	-75.00	17.32	8.21	9.73	326.48	0.2934	-934.0	999999
84	0.00	1.21	0.00	0.63	17.90	8.08	9.60	327.93	0.3003	-206.0	-134.3
85	0.00	0.95	0.00	0.50	20.34	7.84	9.36	332.60	0.3329	824.0	651.3
86	0.00	1.03	0.00	0.54	21.09	7.57	9.09	334.33	0.3418	709.0	542.2
87	0.00	1.81	0.00	0.94	18.68	7.33	8.85	331.30	0.3049	1060.0	828.5
88	0.00	1.81	0.00	0.94	18.90	7.15	8.67	332.14	0.3067	834.0	595.4
89	0.00	3.19	0.00	1.67	20.14	6.81	8.33	334.93	0.3223	914.0	774.7
90	0.00	1.72	0.00	0.90	19.64	6.59	8.11	334.80	0.3134	804.0	679.7
91	0.00	1.21	0.00	0.63	19.28	5.43	6.95	337.54	0.3002	968.0	780.3
92	0.00	4.14	0.00	2.15	19.53	5.31	6.83	338.20	0.3033	743.0	684.1
93	0.00	1.81	0.00	0.93	17.45	3.57	5.09	340.95	0.2605	914.0	655.1
94	0.00	1.03	0.00	0.53	18.77	3.20	4.72	343.75	0.2798	780.0	594.5
95	0.00	0.95	0.00	0.49	17.21	2.97	4.49	342.76	0.2535	915.0	791.6
96	0.00	1.46	0.00	0.74	14.61	359.75	1.27	353.79	0.1986	959.0	790.7
97	0.00	0.86	0.00	0.44	15.03	357.66	-0.82	3.88	0.2052	784.0	612.7
98	0.00	1.03	0.00	0.52	15.21	355.47	-3.01	13.74	0.2140	843.0	633.7

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
