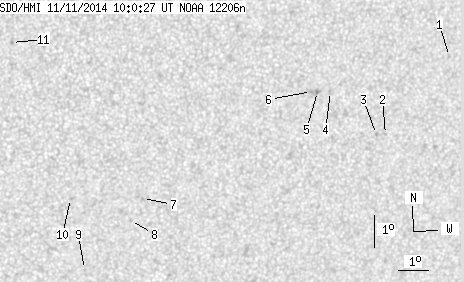

SDO HMI 2014-11-11 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.74 | 0.00 | 8.33 | -14.91 | 20.63 | 22.15 | 229.18 | 0.4825 | 196.9 | 211.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.76 | -12.66 | 27.18 | 28.70 | 240.26 | 0.5418 | 654.0 | 471.0 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -15.03 | 25.27 | 26.79 | 234.71 | 0.5354 | 671.0 | 527.9 | |
| 0.00 | 1.64 | 0.00 | 0.96 | -15.02 | 24.96 | 26.48 | 234.42 | 0.5316 | 790.0 | 585.2 | |
| 0.00 | 1.64 | 0.00 | 0.93 | -13.63 | 23.23 | 24.75 | 234.92 | 0.4992 | 618.0 | 471.6 | |
| 0.00 | 2.24 | 0.00 | 1.27 | -13.62 | 22.79 | 24.31 | 234.46 | 0.4936 | 903.0 | 778.9 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -13.62 | 22.59 | 24.11 | 234.25 | 0.4911 | 882.0 | 700.8 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -16.84 | 17.33 | 18.85 | 222.21 | 0.4623 | -669.0 | -563.1 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -17.53 | 17.01 | 18.53 | 220.69 | 0.4668 | -417.0 | -325.5 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -19.07 | 15.66 | 17.18 | 216.47 | 0.4717 | -524.0 | -448.2 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -16.80 | 14.99 | 16.51 | 218.58 | 0.4380 | -31.0 | -80.3 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -11.90 | 12.77 | 14.29 | 222.88 | 0.3565 | -711.0 | -546.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
