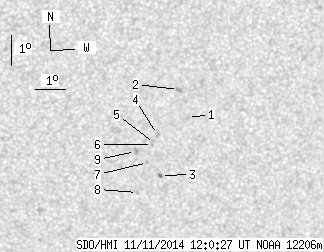

SDO HMI 2014-11-11 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.52 | 14.56 | 0.30 | 8.24 | -23.60 | 8.89 | 11.51 | 202.10 | 0.4886 | 710.7 | 625.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.58 | -22.87 | 9.82 | 12.43 | 204.30 | 0.4839 | 562.0 | 502.9 | |
| 0.00 | 3.01 | 0.00 | 1.69 | -21.94 | 9.44 | 12.05 | 204.51 | 0.4687 | 881.0 | 737.5 | |
| 0.52 | 1.89 | 0.30 | 1.09 | -24.79 | 9.10 | 11.71 | 201.44 | 0.5062 | 747.7 | 624.2 | |
| 0.00 | 2.24 | 0.00 | 1.27 | -23.42 | 8.87 | 11.49 | 202.19 | 0.4859 | 703.0 | 576.2 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -23.71 | 8.80 | 11.41 | 201.82 | 0.4896 | 505.0 | 537.2 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -23.75 | 8.74 | 11.35 | 201.68 | 0.4897 | 781.0 | 592.9 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -24.35 | 8.63 | 11.24 | 201.00 | 0.4975 | 722.0 | 573.2 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -25.35 | 8.38 | 11.00 | 199.83 | 0.5103 | 711.0 | 592.2 | |
| 0.00 | 2.76 | 0.00 | 1.56 | -23.97 | 8.20 | 10.81 | 200.56 | 0.4899 | 773.0 | 648.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
