SDO HMI 2014-11-11 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.23 | 0.00 | 4.07 | -14.73 | 18.52 | 21.14 | 227.28 | 0.4726 | -105.6 | 99.8 | |
|
previous
or next observation for the same group /

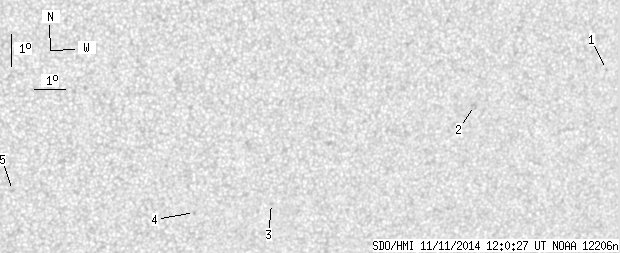

back to the solar disc SDO HMI 2014-11-11 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.51 | -12.60 | 27.19 | 29.81 | 241.25 | 0.5555 | 670.0 | 574.5 | |
| 0.00 | 2.93 | 0.00 | 1.68 | -13.59 | 22.77 | 25.38 | 235.66 | 0.5066 | 769.0 | 709.1 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -16.50 | 16.34 | 18.95 | 222.89 | 0.4594 | -556.0 | -527.1 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -16.73 | 13.85 | 16.47 | 218.62 | 0.4368 | -706.0 | -606.9 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -15.95 | 8.00 | 10.62 | 208.36 | 0.3746 | -705.0 | -600.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
