group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12205	175.29	736.24	92.13	387.58	14.42	12.96	16.13	306.68	0.3366	-384.9	-216.8

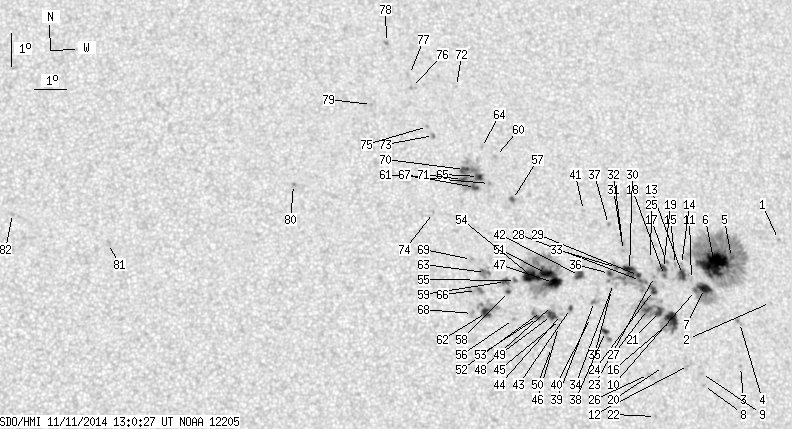

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-11-11 13:00:27 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.03	0.00	0.56	15.33	18.20	21.37	301.20	0.4125	-665.0	-518.4
2	0.00	1.03	0.00	0.56	13.43	17.75	20.91	297.42	0.3928	-730.0	-623.7
3	0.00	1.12	0.00	0.60	11.53	16.62	19.78	293.91	0.3643	-845.0	-663.2
4	0.00	2.50	0.00	1.33	12.85	16.69	19.85	297.15	0.3737	-898.0	-756.9
5	2.33	258.45	1.25	138.25	14.82	16.61	19.77	301.89	0.3868	-809.7	-356.4
6	41.17	-5.00	22.00	-5.00	14.61	16.03	19.20	302.13	0.3774	-1292.1	999999
7	8.27	-5.00	4.40	-5.00	13.90	15.65	18.81	300.91	0.3664	-1157.6	999999
8	0.00	1.29	0.00	0.68	10.98	15.39	18.55	293.71	0.3427	-867.0	-662.1
9	0.00	1.46	0.00	0.77	11.34	15.35	18.51	294.73	0.3443	-783.0	-686.5
10	1.38	-5.00	0.73	-5.00	13.84	15.35	18.51	301.15	0.3618	-1179.9	999999
11	0.00	1.29	0.00	0.69	14.17	15.25	18.41	302.10	0.3631	-958.0	-735.0
12	0.00	4.56	0.00	2.40	11.59	14.96	18.12	295.84	0.3400	-841.0	-669.7
13	5.17	11.88	2.74	6.31	14.33	14.97	18.14	302.84	0.3605	-1133.7	-794.1
14	0.00	1.72	0.00	0.92	14.63	14.97	18.13	303.58	0.3630	-654.0	-552.8
15	0.00	1.46	0.00	0.78	14.64	14.77	17.94	303.85	0.3604	-692.0	-587.4
16	13.09	67.61	6.90	35.57	12.95	14.51	17.67	300.01	0.3431	-1087.4	-661.7
17	0.00	2.15	0.00	1.14	14.73	14.49	17.65	304.48	0.3574	-784.0	-655.0
18	0.69	8.61	0.36	4.56	14.31	14.39	17.55	303.60	0.3524	-1071.6	-920.2
19	2.76	-18.00	1.46	-18.00	14.52	14.38	17.54	304.14	0.3540	-1084.6	999999
20	0.00	1.12	0.00	0.59	11.57	14.16	17.32	296.75	0.3281	-904.0	-650.2
21	4.74	-16.00	2.49	-16.00	13.23	14.15	17.31	301.22	0.3402	-1196.2	999999
22	0.00	1.38	0.00	0.72	10.08	13.82	16.98	292.85	0.3134	-926.0	-707.5
23	0.00	1.38	0.00	0.73	14.29	14.07	17.23	304.00	0.3478	-991.0	-829.6
24	3.53	48.57	1.86	25.55	13.86	14.00	17.17	303.04	0.3433	-1128.9	-832.4
25	0.00	1.89	0.00	1.00	14.80	13.98	17.15	305.39	0.3511	-558.0	-554.1
26	0.00	1.03	0.00	0.54	11.34	13.67	16.83	296.72	0.3192	-805.0	-643.0
27	3.01	-16.00	1.58	-16.00	13.30	13.77	16.93	301.92	0.3354	-1211.7	999999
28	0.78	-24.00	0.41	-24.00	14.17	13.61	16.77	304.40	0.3406	-1185.0	999999
29	1.98	-24.00	1.04	-24.00	14.33	13.56	16.72	304.86	0.3412	-1038.8	999999
30	8.18	-24.00	4.30	-24.00	14.48	13.28	16.45	305.67	0.3389	-1207.9	999999
31	0.00	1.29	0.00	0.68	15.09	13.14	16.30	307.39	0.3426	-1033.0	-836.1
32	0.00	3.10	0.00	1.64	15.33	13.13	16.29	307.99	0.3448	-851.0	-656.6
33	0.69	2.76	0.36	1.45	14.58	12.88	16.04	306.57	0.3344	-1129.5	-859.1
34	0.00	4.56	0.00	2.39	14.10	12.75	15.91	305.56	0.3282	-133.0	-312.5
35	0.00	1.21	0.00	0.63	13.92	12.67	15.83	305.22	0.3256	-704.0	-507.8
36	1.55	-24.00	0.81	-24.00	14.40	12.64	15.80	306.51	0.3296	-1169.9	999999
37	0.00	1.21	0.00	0.64	15.89	12.73	15.89	309.96	0.3450	-975.0	-835.9
38	2.33	6.29	1.21	3.27	12.66	12.39	15.55	302.27	0.3108	895.4	771.3
39	0.00	3.62	0.00	1.89	13.56	12.11	15.27	305.23	0.3147	779.0	528.9
40	0.00	0.86	0.00	0.45	13.08	11.95	15.11	304.19	0.3083	720.0	432.2
41	0.00	1.12	0.00	0.59	16.33	11.96	15.12	312.31	0.3400	-792.0	-615.0
42	3.79	6.98	1.98	3.64	14.36	11.68	14.85	308.04	0.3166	-1079.0	-630.4
43	1.03	3.36	0.54	1.74	13.37	11.33	14.50	306.03	0.3025	-959.9	-695.4
44	0.00	1.38	0.00	0.71	13.19	11.04	14.20	306.07	0.2969	-62.0	-145.4
45	0.00	1.29	0.00	0.67	13.04	11.00	14.16	305.73	0.2949	515.0	370.6
46	0.00	1.21	0.00	0.62	12.83	10.92	14.09	305.27	0.2919	643.0	518.9
47	13.69	141.84	7.12	73.62	14.16	10.85	14.01	309.07	0.3037	-1066.4	43.8
48	0.00	0.95	0.00	0.49	13.46	10.77	13.94	307.34	0.2959	-97.0	-102.5
49	5.00	7.32	2.59	3.79	13.16	10.72	13.89	306.59	0.2924	908.4	569.1
50	0.00	1.55	0.00	0.80	12.20	10.67	13.83	303.89	0.2827	597.0	417.2
51	10.51	-47.00	5.46	-47.00	14.43	10.65	13.81	310.19	0.3039	842.1	999999
52	0.00	1.03	0.00	0.53	13.29	10.42	13.58	307.54	0.2895	143.0	171.3
53	1.55	8.35	0.80	4.32	13.11	10.28	13.44	307.30	0.2859	1120.5	663.5
54	14.99	-47.00	7.77	-47.00	14.35	10.17	13.33	310.93	0.2970	1079.6	999999
55	0.69	-47.00	0.36	-47.00	14.23	9.66	12.82	311.71	0.2894	928.6	999999
56	0.00	0.95	0.00	0.49	13.06	9.53	12.69	308.70	0.2755	-860.0	-681.0
57	1.12	2.58	0.58	1.35	16.69	9.72	12.88	317.57	0.3179	-1089.5	-850.9
58	1.03	-47.00	0.53	-47.00	13.91	9.42	12.58	311.33	0.2828	-813.2	999999
59	2.93	-47.00	1.51	-47.00	14.21	9.34	12.50	312.32	0.2852	1043.8	999999
60	0.00	1.29	0.00	0.68	18.02	9.28	12.44	321.33	0.3292	882.0	754.1
61	0.00	0.86	0.00	0.45	17.19	9.03	12.19	320.18	0.3164	845.0	741.2
62	5.34	21.62	2.74	11.11	13.28	8.70	11.86	311.20	0.2670	1098.7	489.0
63	0.00	9.22	0.00	4.75	14.49	8.73	11.89	314.46	0.2808	964.0	863.0
64	0.00	1.21	0.00	0.63	18.30	8.85	12.01	322.83	0.3284	745.0	547.4
65	3.44	46.94	1.80	24.47	17.41	8.69	11.85	321.40	0.3156	893.5	-64.5
66	0.00	8.78	0.00	4.52	13.95	8.42	11.58	313.74	0.2709	1028.0	860.3
67	2.50	-65.00	1.30	-65.00	17.08	8.57	11.73	320.97	0.3101	1093.7	999999
68	0.00	3.10	0.00	1.59	13.26	8.26	11.42	312.17	0.2613	1056.0	819.6
69	0.00	1.81	0.00	0.93	14.89	8.32	11.48	316.49	0.2806	935.0	725.7
70	3.79	-65.00	1.98	-65.00	17.63	8.26	11.42	322.86	0.3140	-1014.1	999999
71	2.24	-65.00	1.17	-65.00	17.33	8.18	11.34	322.43	0.3092	-850.7	999999
72	0.00	1.03	0.00	0.55	20.19	8.19	11.35	327.71	0.3472	760.0	540.5
73	0.00	1.64	0.00	0.85	18.69	7.34	10.50	327.08	0.3192	954.0	813.9
74	0.00	1.12	0.00	0.58	16.33	7.20	10.36	322.73	0.2864	-800.0	-585.0
75	0.00	1.38	0.00	0.72	18.97	7.17	10.33	328.00	0.3215	813.0	609.2
76	0.00	1.29	0.00	0.68	20.18	6.74	9.90	331.05	0.3348	947.0	826.7
77	0.00	0.34	0.00	0.18	20.58	6.70	9.86	331.75	0.3403	533.0	542.0
78	0.00	1.72	0.00	0.91	21.59	6.02	9.19	334.77	0.3498	889.0	731.4
79	0.00	1.12	0.00	0.58	19.66	5.43	8.59	333.57	0.3173	915.0	755.9
80	0.00	1.12	0.00	0.57	17.22	2.86	6.02	337.47	0.2626	966.0	930.8
81	0.00	2.67	0.00	1.35	15.45	357.10	0.26	358.82	0.2121	577.0	575.3
82	0.00	1.64	0.00	0.83	16.36	354.13	-2.71	11.32	0.2322	723.0	591.5

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
