SDO HMI 2014-11-11 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.53 | 82.76 | 14.30 | 50.32 | -8.61 | 323.26 | -33.58 | 109.76 | 0.5833 | 880.1 | 492.5 | |
|
previous
or next observation for the same group /

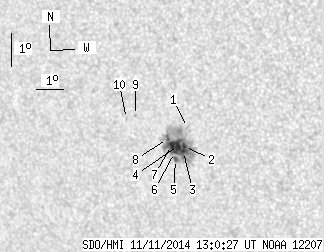

back to the solar disc SDO HMI 2014-11-11 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.94 | -8.02 | 323.74 | -33.10 | 109.04 | 0.5742 | 258.0 | 213.1 | |
| 2.07 | 79.06 | 1.25 | 48.05 | -8.60 | 323.58 | -33.26 | 109.91 | 0.5790 | 1366.8 | 499.9 | |
| 3.88 | -2.00 | 2.35 | -2.00 | -8.76 | 323.52 | -33.31 | 110.14 | 0.5804 | 1092.9 | 999999 | |
| 6.03 | -2.00 | 3.66 | -2.00 | -8.58 | 323.36 | -33.48 | 109.76 | 0.5818 | 1076.2 | 999999 | |
| 1.38 | -2.00 | 0.84 | -2.00 | -9.01 | 323.21 | -33.63 | 110.38 | 0.5857 | 678.3 | 999999 | |
| 2.33 | -2.00 | 1.42 | -2.00 | -8.80 | 323.20 | -33.64 | 110.02 | 0.5850 | 783.7 | 999999 | |
| 6.20 | -2.00 | 3.78 | -2.00 | -8.59 | 323.11 | -33.73 | 109.64 | 0.5852 | 834.5 | 999999 | |
| 1.64 | -2.00 | 1.00 | -2.00 | -8.38 | 322.99 | -33.85 | 109.23 | 0.5859 | 712.7 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.69 | -7.72 | 321.89 | -34.95 | 107.62 | 0.5979 | 704.0 | 586.5 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -7.82 | 321.55 | -35.29 | 107.63 | 0.6029 | 499.0 | 405.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
