Sunspot Group 12205

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12205	160.87	732.99	84.83	387.13	14.52	13.02	16.73	305.88	0.3453	-371.0	-225.8

previous or next observation for the same group / back to the solar disc

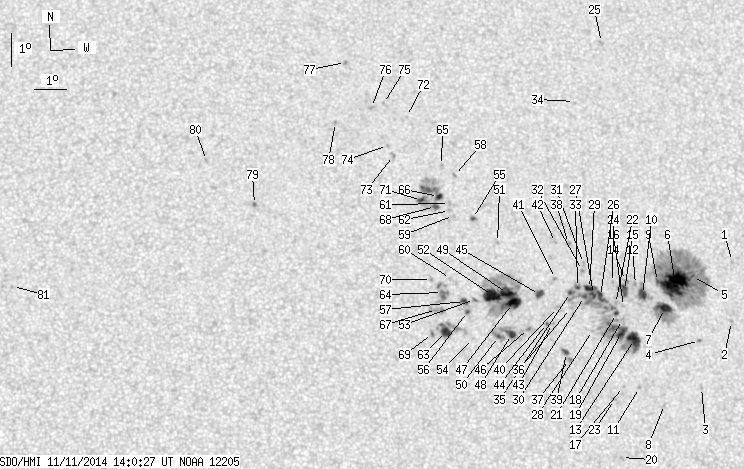

SDO HMI 2014-11-11 14:00:27 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.21	0.00	0.66	15.26	18.01	21.72	300.67	0.4168	-614.0	-472.5
2	0.00	1.46	0.00	0.79	13.44	17.79	21.50	296.87	0.4013	-744.0	-569.2
3	0.00	0.86	0.00	0.46	11.48	16.64	20.35	293.25	0.3726	-748.0	-586.6
4	0.00	1.46	0.00	0.78	12.90	16.69	20.40	296.68	0.3820	-993.0	-854.2
5	0.26	221.40	0.14	118.98	14.83	16.65	20.36	301.24	0.3950	-764.3	-306.2
6	41.08	-5.00	22.03	-5.00	14.63	16.07	19.78	301.46	0.3855	-1283.0	999999
7	8.09	34.53	4.32	18.42	13.88	15.64	19.35	300.22	0.3740	-1182.6	-552.9
8	0.00	1.29	0.00	0.68	11.00	15.42	19.13	293.17	0.3514	-844.0	-656.1
9	0.86	-5.00	0.46	-5.00	14.70	15.49	19.20	302.33	0.3781	-1048.3	999999
10	5.43	13.86	2.89	7.38	14.32	14.97	18.68	302.09	0.3679	-1146.2	-809.5
11	0.00	1.55	0.00	0.82	11.52	14.65	18.37	295.38	0.3432	-930.0	-786.0
12	0.00	1.64	0.00	0.87	14.62	14.77	18.48	303.08	0.3677	-902.0	-722.2
13	11.54	133.39	6.10	70.38	12.97	14.60	18.31	299.23	0.3524	-1103.9	-747.3
14	0.00	1.98	0.00	1.05	14.75	14.46	18.17	303.80	0.3645	-731.0	-594.7
15	4.48	8.87	2.38	4.71	14.45	14.40	18.11	303.16	0.3612	-1057.2	-860.9
16	0.00	0.86	0.00	0.46	13.97	14.33	18.04	302.09	0.3563	-786.0	-592.6
17	0.00	0.86	0.00	0.45	11.56	14.15	17.86	296.07	0.3360	-855.0	-726.2
18	0.00	1.55	0.00	0.82	13.58	14.26	17.97	301.20	0.3523	-902.0	-746.2
19	5.94	-13.00	3.14	-13.00	13.18	14.20	17.91	300.30	0.3483	-1197.6	999999
20	0.00	0.78	0.00	0.41	9.44	13.95	17.67	290.22	0.3204	-929.0	-817.2
21	1.21	-13.00	0.64	-13.00	13.76	14.09	17.80	301.90	0.3512	-1109.4	999999
22	0.00	1.03	0.00	0.55	14.06	14.08	17.79	302.66	0.3536	-889.0	-749.1
23	0.00	1.89	0.00	0.99	11.18	13.84	17.55	295.37	0.3288	-826.0	-743.5
24	0.00	0.78	0.00	0.41	14.70	14.04	17.75	304.27	0.3583	-767.0	-649.0
25	0.00	2.07	0.00	1.14	22.08	14.48	18.19	318.34	0.4371	-753.0	-597.8
26	4.31	-13.00	2.27	-13.00	14.28	13.61	17.33	303.86	0.3491	-1097.9	999999
27	2.76	-13.00	1.45	-13.00	14.35	13.40	17.11	304.34	0.3466	-1320.1	999999
28	0.00	1.12	0.00	0.59	13.26	13.28	16.99	301.75	0.3360	-646.0	-469.7
29	3.79	-13.00	2.00	-13.00	14.53	13.28	16.99	304.96	0.3467	-1113.6	999999
30	1.46	-13.00	0.77	-13.00	14.29	13.10	16.81	304.64	0.3422	-1189.5	999999
31	0.00	1.46	0.00	0.77	15.29	13.15	16.86	306.98	0.3518	-846.0	-758.2
32	0.00	1.29	0.00	0.68	15.08	13.10	16.81	306.56	0.3492	-1047.0	-861.2
33	1.12	-13.00	0.59	-13.00	14.57	12.90	16.61	305.63	0.3419	-1079.7	999999
34	0.00	0.69	0.00	0.37	20.26	13.35	17.06	316.95	0.4050	-613.0	-587.9
35	1.21	-13.00	0.63	-13.00	14.42	12.67	16.38	305.63	0.3374	-1170.6	999999
36	0.00	0.52	0.00	0.27	13.94	12.63	16.34	304.47	0.3326	-448.0	-343.8
37	0.00	2.67	0.00	1.39	12.40	12.49	16.20	300.58	0.3179	992.0	754.4
38	0.00	1.89	0.00	1.00	15.91	12.72	16.43	309.10	0.3521	-957.0	-718.0
39	1.64	3.44	0.85	1.80	12.61	12.41	16.12	301.29	0.3185	965.5	766.8
40	0.00	2.07	0.00	1.08	13.97	12.22	15.93	305.21	0.3274	-649.0	-631.7
41	0.00	1.89	0.00	1.00	14.85	12.22	15.93	307.42	0.3355	-1065.0	-802.6
42	0.00	0.95	0.00	0.50	15.94	12.31	16.02	309.87	0.3472	-876.0	-715.0
43	0.00	1.55	0.00	0.81	13.49	12.02	15.74	304.27	0.3205	641.0	486.4
44	0.34	1.55	0.18	0.81	13.50	11.83	15.55	304.58	0.3179	747.5	554.6
45	3.44	5.43	1.80	2.84	14.38	11.67	15.38	307.15	0.3238	-1106.2	-748.1
46	0.00	1.38	0.00	0.72	13.35	11.26	14.97	305.17	0.3088	-897.0	-837.6
47	13.86	114.87	7.22	59.79	14.12	10.80	14.51	308.03	0.3099	-1073.6	10.3
48	4.22	22.65	2.19	11.74	13.18	10.71	14.42	305.66	0.2998	871.3	421.0
49	11.02	-47.00	5.74	-47.00	14.42	10.66	14.37	309.08	0.3111	796.0	999999
50	1.03	-48.00	0.54	-48.00	13.13	10.30	14.01	306.27	0.2937	1157.0	999999
51	0.00	1.03	0.00	0.54	15.97	10.46	14.17	313.29	0.3247	800.0	570.5
52	15.24	-47.00	7.92	-47.00	14.37	10.19	13.90	309.85	0.3044	1111.9	999999
53	0.00	2.24	0.00	1.16	14.25	9.61	13.32	310.71	0.2959	912.0	768.1
54	0.00	1.03	0.00	0.53	13.08	9.51	13.22	307.66	0.2827	-1005.0	-697.5
55	0.86	1.98	0.45	1.04	16.71	9.71	13.42	316.47	0.3243	-1046.3	-850.2
56	0.86	1.89	0.45	0.98	13.90	9.37	13.08	310.24	0.2891	-856.1	-625.1
57	2.24	5.43	1.16	2.81	14.20	9.29	13.00	311.22	0.2913	968.8	667.4
58	0.00	1.29	0.00	0.68	18.04	9.24	12.95	320.27	0.3348	807.0	731.7
59	0.00	1.21	0.00	0.63	16.81	9.12	12.83	317.96	0.3187	689.0	553.1
60	0.00	1.29	0.00	0.67	14.90	8.90	12.61	313.91	0.2941	689.0	468.7
61	0.00	1.46	0.00	0.77	17.18	9.01	12.73	318.97	0.3220	821.0	692.1
62	0.00	2.07	0.00	1.08	16.97	9.00	12.71	318.55	0.3193	870.0	620.5
63	6.29	23.42	3.24	12.07	13.30	8.65	12.36	310.13	0.2736	1076.3	320.5
64	0.00	13.86	0.00	7.16	14.48	8.62	12.33	313.44	0.2860	1025.0	849.7
65	0.00	1.21	0.00	0.63	18.35	8.85	12.56	321.73	0.3346	853.0	712.9
66	2.58	47.19	1.35	24.65	17.40	8.68	12.39	320.17	0.3211	968.1	-140.9
67	0.00	7.58	0.00	3.91	13.97	8.40	12.11	312.56	0.2777	870.0	837.4
68	1.64	-66.00	0.85	-66.00	17.10	8.56	12.27	319.78	0.3161	1087.2	999999
69	0.00	2.67	0.00	1.37	13.25	8.24	11.95	310.89	0.2678	1040.0	870.2
70	0.00	1.29	0.00	0.67	14.88	8.30	12.01	315.20	0.2867	1066.0	824.5
71	2.07	-66.00	1.08	-66.00	17.28	8.13	11.84	321.17	0.3139	-951.1	999999
72	0.00	0.86	0.00	0.45	19.87	7.84	11.55	326.73	0.3447	730.0	583.2
73	0.00	2.76	0.00	1.44	18.68	7.33	11.04	325.77	0.3241	931.0	725.5
74	0.00	1.12	0.00	0.59	18.99	7.16	10.87	326.74	0.3267	808.0	656.5
75	0.00	0.95	0.00	0.50	20.29	7.13	10.84	329.02	0.3441	790.0	620.7
76	0.00	2.84	0.00	1.50	20.17	6.73	10.44	329.74	0.3391	962.0	697.9
77	0.00	1.64	0.00	0.87	21.58	5.99	9.70	333.55	0.3533	944.0	760.4
78	0.00	1.12	0.00	0.59	19.71	5.55	9.26	331.92	0.3232	899.0	762.5
79	0.00	2.07	0.00	1.06	17.22	2.87	6.58	335.61	0.2663	1081.0	930.8
80	0.00	1.72	0.00	0.89	18.57	1.41	5.12	342.24	0.2787	743.0	547.5
81	0.00	1.03	0.00	0.52	14.75	355.35	-0.94	4.56	0.2007	856.0	620.0

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
