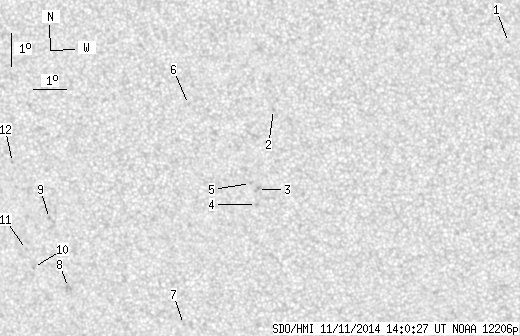

SDO HMI 2014-11-11 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.11 | 0.00 | 8.55 | -9.99 | 340.03 | -16.26 | 130.19 | 0.3592 | 121.8 | 8.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.39 | -4.73 | 350.76 | -5.53 | 145.33 | 0.1696 | 761.0 | 601.2 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -6.80 | 343.62 | -12.67 | 128.53 | 0.2796 | 809.0 | 696.6 | |
| 0.00 | 3.01 | 0.00 | 1.57 | -9.23 | 343.05 | -13.24 | 133.53 | 0.3133 | 734.0 | 658.5 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -9.69 | 343.00 | -13.29 | 134.48 | 0.3191 | 749.0 | 622.7 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -9.05 | 342.84 | -13.45 | 132.66 | 0.3138 | 882.0 | 668.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -6.68 | 341.01 | -15.28 | 123.12 | 0.3140 | 772.0 | 626.8 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -13.40 | 340.51 | -15.78 | 137.10 | 0.3903 | 743.0 | 572.0 | |
| 0.00 | 3.44 | 0.00 | 1.88 | -12.32 | 336.92 | -19.37 | 129.32 | 0.4208 | -855.0 | -786.7 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -10.21 | 336.46 | -19.83 | 124.53 | 0.4070 | -991.0 | -812.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -11.73 | 335.83 | -20.46 | 126.70 | 0.4287 | -624.0 | -552.0 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -11.18 | 335.65 | -20.64 | 125.40 | 0.4261 | -748.0 | -550.4 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -8.53 | 335.38 | -20.91 | 119.62 | 0.4078 | -770.0 | -604.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
