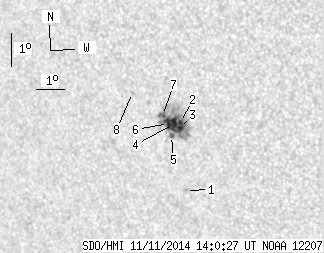

SDO HMI 2014-11-11 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.33 | 72.33 | 14.11 | 43.71 | -8.69 | 323.28 | -33.01 | 110.19 | 0.5760 | 941.6 | 566.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 1.15 | -10.66 | 323.52 | -32.77 | 113.53 | 0.5825 | 672.0 | 570.5 | |
| 1.98 | 68.89 | 1.19 | 41.61 | -8.59 | 323.57 | -32.72 | 110.18 | 0.5717 | 1343.7 | 568.0 | |
| 4.91 | -2.00 | 2.96 | -2.00 | -8.77 | 323.51 | -32.78 | 110.45 | 0.5732 | 1077.5 | 999999 | |
| 7.49 | -2.00 | 4.53 | -2.00 | -8.62 | 323.35 | -32.94 | 110.12 | 0.5748 | 1026.7 | 999999 | |
| 1.46 | -2.00 | 0.89 | -2.00 | -8.99 | 323.20 | -33.09 | 110.65 | 0.5784 | 684.8 | 999999 | |
| 5.60 | -2.00 | 3.39 | -2.00 | -8.63 | 323.13 | -33.16 | 110.01 | 0.5777 | 855.2 | 999999 | |
| 1.89 | -2.00 | 1.15 | -2.00 | -8.39 | 322.94 | -33.35 | 109.52 | 0.5792 | 718.2 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.95 | -7.73 | 321.92 | -34.37 | 107.92 | 0.5901 | 724.0 | 524.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
