SDO HMI 2014-11-11 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.91 | 0.00 | 4.54 | -24.20 | 8.33 | 12.59 | 203.39 | 0.5039 | 557.1 | 471.7 | |
|
previous
or next observation for the same group /

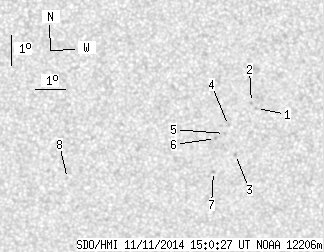

back to the solar disc SDO HMI 2014-11-11 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.59 | -23.19 | 9.59 | 13.85 | 206.37 | 0.4975 | 688.0 | 523.7 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -22.99 | 9.40 | 13.66 | 206.26 | 0.4936 | 673.0 | 573.4 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -24.72 | 9.05 | 13.31 | 204.09 | 0.5145 | 755.0 | 664.0 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -23.74 | 8.71 | 12.98 | 204.42 | 0.4992 | 716.0 | 566.9 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -24.01 | 8.61 | 12.87 | 204.00 | 0.5022 | 648.0 | 406.9 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -24.17 | 8.32 | 12.58 | 203.40 | 0.5027 | 814.0 | 705.9 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -25.28 | 8.37 | 12.63 | 202.53 | 0.5180 | 754.0 | 579.5 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -25.46 | 3.51 | 7.77 | 194.27 | 0.4974 | -591.0 | -442.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
