Sunspot Group 12205

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12205	160.82	719.31	85.61	383.55	14.36	13.20	18.57	302.90	0.3687	-324.9	-279.6

previous or next observation for the same group / back to the solar disc

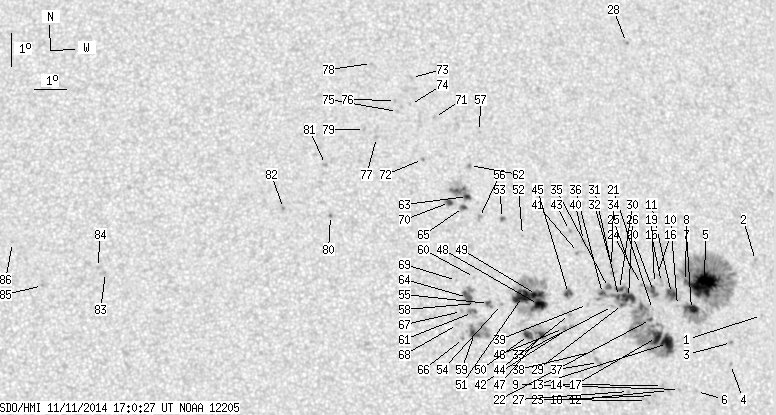

SDO HMI 2014-11-11 17:00:27 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	0.95	0.00	0.52	13.64	17.90	23.27	295.70	0.4278	-584.0	-508.5
2	0.00	1.72	0.00	0.95	15.31	17.89	23.25	299.24	0.4383	-684.0	-537.7
3	0.00	1.38	0.00	0.75	12.85	16.83	22.20	294.87	0.4077	-920.0	-722.8
4	0.00	1.55	0.00	0.84	12.19	16.74	22.10	293.43	0.4025	-632.0	-527.2
5	38.40	241.40	20.82	131.00	14.62	16.12	21.48	299.54	0.4090	-1287.4	-340.8
6	0.00	1.03	0.00	0.55	11.41	15.56	20.93	292.55	0.3808	-639.0	-541.3
7	8.44	-5.00	4.55	-5.00	13.87	15.62	20.98	298.39	0.3968	-1195.1	999999
8	1.03	-5.00	0.56	-5.00	14.72	15.50	20.87	300.43	0.4013	-922.5	999999
9	0.00	1.12	0.00	0.60	11.48	15.02	20.38	293.22	0.3730	-831.0	-656.2
10	0.00	0.86	0.00	0.46	14.00	15.17	20.53	299.16	0.3915	-875.0	-682.8
11	5.85	15.24	3.15	8.20	14.37	15.01	20.37	300.18	0.3918	-1116.5	-780.0
12	0.00	1.12	0.00	0.60	11.46	14.66	20.03	293.50	0.3676	-956.0	-787.0
13	14.29	170.98	7.64	91.12	12.87	14.74	20.11	296.93	0.3775	-1020.5	-696.1
14	0.00	1.12	0.00	0.60	11.61	14.48	19.84	294.07	0.3658	-945.0	-733.3
15	0.00	3.19	0.00	1.71	14.71	14.72	20.08	301.29	0.3903	-694.0	-586.3
16	0.00	0.34	0.00	0.19	14.98	14.61	19.98	302.04	0.3910	-418.0	-463.0
17	8.26	-13.00	4.41	-13.00	13.05	14.40	19.77	297.75	0.3739	-1289.9	999999
18	0.00	0.95	0.00	0.50	11.31	14.23	19.60	293.55	0.3603	-900.0	-779.7
19	0.00	1.03	0.00	0.55	14.68	14.49	19.85	301.51	0.3869	-400.0	-563.8
20	3.62	9.13	1.94	4.89	14.44	14.43	19.79	301.02	0.3843	-1060.9	-846.1
21	0.00	0.69	0.00	0.37	13.90	14.35	19.71	299.85	0.3791	-755.0	-640.1
22	0.77	-13.00	0.41	-13.00	13.60	14.26	19.62	299.24	0.3756	-1273.6	999999
23	0.00	2.58	0.00	1.37	11.17	13.93	19.30	293.47	0.3550	-852.0	-768.9
24	0.00	1.38	0.00	0.74	14.66	14.06	19.42	301.97	0.3809	-823.0	-650.2
25	0.00	1.12	0.00	0.60	15.09	13.78	19.14	303.32	0.3805	-678.0	-685.0
26	8.35	-13.00	4.45	-13.00	14.28	13.60	18.97	301.64	0.3716	-1221.5	999999
27	0.00	1.29	0.00	0.68	11.45	13.38	18.74	294.79	0.3484	-930.0	-736.9
28	0.00	1.72	0.00	0.96	22.11	14.46	19.82	316.08	0.4548	-983.0	-746.6
29	1.38	-13.00	0.73	-13.00	14.07	13.39	18.75	301.42	0.3670	-952.5	999999
30	2.07	-13.00	1.10	-13.00	14.52	13.33	18.70	302.57	0.3698	-1088.8	999999
31	1.72	-13.00	0.92	-13.00	14.31	13.28	18.65	302.14	0.3675	-1128.8	999999
32	0.00	2.32	0.00	1.24	15.04	13.19	18.55	303.98	0.3721	-1084.0	-805.9
33	0.00	1.21	0.00	0.64	14.02	13.06	18.43	301.70	0.3621	-821.0	-422.8
34	0.00	1.72	0.00	0.92	15.23	13.14	18.50	304.46	0.3730	-956.0	-747.5
35	1.64	-13.00	0.87	-13.00	14.59	12.98	18.35	303.19	0.3656	-1069.6	999999
36	1.81	-13.00	0.96	-13.00	14.41	12.77	18.14	303.05	0.3613	-1178.8	999999
37	0.00	4.39	0.00	2.31	12.34	12.48	17.85	298.19	0.3412	868.0	746.9
38	0.00	1.64	0.00	0.86	12.67	12.35	17.71	299.24	0.3416	672.0	602.5
39	0.00	1.55	0.00	0.82	14.09	12.26	17.63	302.96	0.3516	-799.0	-615.7
40	0.00	0.95	0.00	0.50	16.03	12.31	17.67	307.48	0.3692	-985.0	-845.8
41	0.00	2.15	0.00	1.14	15.67	12.11	17.47	306.95	0.3633	-944.0	-813.5
42	0.00	1.89	0.00	1.00	13.44	11.70	17.06	302.11	0.3385	793.0	582.4
43	0.00	1.21	0.00	0.64	16.34	11.88	17.24	308.81	0.3667	-813.0	-682.2
44	0.00	1.29	0.00	0.68	13.80	11.67	17.03	303.09	0.3410	-949.0	-701.0
45	3.10	5.68	1.64	3.00	14.43	11.68	17.05	304.65	0.3466	-1062.0	-781.8
46	0.00	3.01	0.00	1.58	13.38	11.44	16.81	302.34	0.3344	835.0	709.3
47	2.84	18.60	1.49	9.72	13.21	10.73	16.09	302.96	0.3231	831.3	309.4
48	12.14	97.54	6.37	51.15	14.12	10.70	16.06	305.37	0.3306	-943.3	-0.0
49	8.09	-48.00	4.25	-48.00	14.42	10.66	16.02	306.21	0.3328	914.4	999999
50	4.39	-47.00	2.29	-47.00	13.19	10.32	15.68	303.54	0.3171	1007.4	999999
51	16.01	-48.00	8.39	-48.00	14.37	10.21	15.57	306.82	0.3263	1021.4	999999
52	0.00	0.86	0.00	0.45	16.22	10.35	15.72	311.02	0.3463	672.0	492.2
53	0.52	2.50	0.27	1.32	16.74	9.76	15.12	313.26	0.3445	-1039.2	-837.6
54	0.00	1.21	0.00	0.63	14.14	9.53	14.89	307.40	0.3151	837.0	700.9
55	1.21	3.62	0.63	1.88	14.17	9.12	14.48	308.24	0.3101	1029.0	874.3
56	0.00	3.10	0.00	1.63	16.79	9.02	14.39	314.73	0.3363	843.0	647.6
57	0.00	0.95	0.00	0.50	19.43	9.25	14.61	319.66	0.3692	649.0	531.5
58	0.00	0.77	0.00	0.40	14.18	8.71	14.07	309.03	0.3048	701.0	624.9
59	4.13	23.24	2.14	12.06	13.27	8.62	13.98	306.74	0.2948	1019.6	239.1
60	0.00	1.12	0.00	0.58	14.97	8.73	14.09	311.01	0.3131	723.0	477.8
61	0.00	6.28	0.00	3.26	13.91	8.60	13.96	308.52	0.3006	955.0	765.7
62	0.00	0.86	0.00	0.46	18.38	8.83	14.20	318.45	0.3524	917.0	754.5
63	2.24	21.26	1.18	11.19	17.43	8.69	14.05	316.78	0.3398	926.7	-345.2
64	4.82	13.86	2.51	7.20	14.36	8.47	13.83	309.98	0.3036	1086.4	778.1
65	1.46	3.27	0.77	1.72	17.10	8.53	13.90	316.36	0.3342	1062.6	896.8
66	0.00	1.46	0.00	0.76	13.13	8.27	13.63	307.00	0.2886	933.0	780.8
67	0.00	1.55	0.00	0.80	13.94	8.25	13.62	309.29	0.2965	881.0	741.9
68	0.00	1.89	0.00	0.98	13.55	8.10	13.47	308.52	0.2907	744.0	590.3
69	0.00	0.69	0.00	0.36	14.88	8.15	13.52	311.94	0.3051	780.0	657.6
70	2.24	3.96	1.17	2.08	17.26	8.10	13.46	317.59	0.3311	-909.3	-671.5
71	0.00	1.12	0.00	0.59	19.88	7.83	13.19	323.25	0.3603	859.0	634.2
72	0.00	1.38	0.00	0.72	18.59	7.34	12.70	321.89	0.3391	892.0	736.1
73	0.00	1.46	0.00	0.78	21.13	7.19	12.55	326.66	0.3705	740.0	580.4
74	0.00	0.95	0.00	0.50	20.29	7.09	12.45	325.49	0.3585	850.0	656.6
75	0.00	1.12	0.00	0.59	20.08	6.65	12.01	326.07	0.3517	854.0	587.3
76	0.00	1.21	0.00	0.64	20.42	6.61	11.98	326.72	0.3559	847.0	695.4
77	0.00	1.64	0.00	0.86	19.28	5.91	11.28	326.33	0.3344	917.0	687.5
78	0.00	1.03	0.00	0.55	21.58	5.93	11.29	330.01	0.3658	867.0	692.8
79	0.00	1.46	0.00	0.77	19.54	5.55	10.91	327.62	0.3345	985.0	738.3
80	0.00	1.64	0.00	0.85	16.91	4.31	9.67	325.83	0.2874	-878.0	-714.8
81	0.00	1.89	0.00	0.99	18.47	4.23	9.60	328.99	0.3084	938.0	763.7
82	0.00	1.12	0.00	0.58	17.13	2.84	8.20	330.43	0.2776	1026.0	897.5
83	0.00	1.21	0.00	0.61	15.22	357.26	2.62	347.97	0.2130	805.0	686.3
84	0.00	0.95	0.00	0.48	15.37	357.02	2.38	349.20	0.2147	841.0	527.1
85	0.00	1.12	0.00	0.57	14.83	355.32	0.68	356.70	0.2019	850.0	684.1
86	0.00	0.52	0.00	0.26	16.14	354.40	-0.24	1.02	0.2240	730.0	439.8

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
