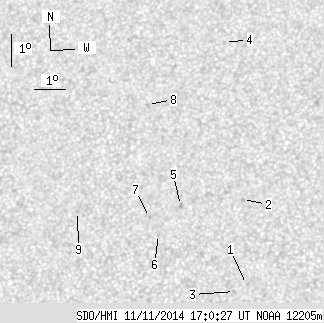

SDO HMI 2014-11-11 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.64 | 0.00 | 5.11 | 19.58 | 341.45 | -13.18 | 37.40 | 0.3574 | 317.1 | 290.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.22 | 16.55 | 343.72 | -10.92 | 38.17 | 0.2950 | -603.0 | -480.6 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 19.16 | 343.43 | -11.20 | 33.73 | 0.3321 | -799.0 | -633.1 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 16.34 | 343.35 | -11.28 | 39.55 | 0.2961 | -775.0 | -632.0 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 24.06 | 342.45 | -12.19 | 28.42 | 0.4069 | 852.0 | 564.4 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 18.95 | 341.46 | -13.18 | 38.42 | 0.3486 | 985.0 | 751.6 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 18.05 | 340.82 | -13.82 | 41.47 | 0.3444 | 826.0 | 699.4 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 18.57 | 340.49 | -14.15 | 41.09 | 0.3541 | 855.0 | 679.2 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 22.08 | 340.09 | -14.54 | 35.67 | 0.4008 | 769.0 | 549.2 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 18.72 | 338.14 | -16.50 | 45.02 | 0.3820 | 744.0 | 598.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
