SDO HMI 2014-11-11 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.67 | 76.36 | 14.05 | 45.33 | -8.71 | 323.27 | -31.37 | 111.17 | 0.5539 | 889.4 | 506.2 | |
|
previous
or next observation for the same group /

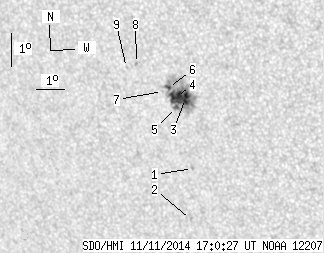

back to the solar disc SDO HMI 2014-11-11 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.77 | -10.82 | 323.56 | -31.08 | 114.89 | 0.5611 | 771.0 | 601.5 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -12.39 | 323.29 | -31.35 | 117.25 | 0.5738 | 615.0 | 485.0 | |
| 8.61 | 71.20 | 5.10 | 42.23 | -8.69 | 323.54 | -31.10 | 111.30 | 0.5502 | 1180.2 | 509.0 | |
| 11.88 | -3.00 | 7.06 | -3.00 | -8.64 | 323.23 | -31.41 | 111.02 | 0.5541 | 964.2 | 999999 | |
| 1.46 | -3.00 | 0.87 | -3.00 | -8.98 | 323.19 | -31.44 | 111.57 | 0.5562 | 672.4 | 999999 | |
| 1.72 | -3.00 | 1.02 | -3.00 | -8.38 | 322.97 | -31.67 | 110.42 | 0.5564 | 713.0 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -8.50 | 322.75 | -31.89 | 110.50 | 0.5600 | 225.0 | 199.9 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -7.68 | 321.90 | -32.74 | 108.65 | 0.5679 | 680.0 | 599.1 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -7.81 | 321.53 | -33.11 | 108.68 | 0.5735 | 514.0 | 381.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
