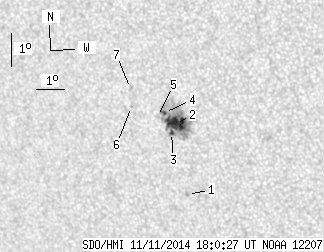

SDO HMI 2014-11-11 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.75 | 73.61 | 12.25 | 43.42 | -8.70 | 323.24 | -30.84 | 111.47 | 0.5467 | 914.7 | 526.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.97 | -10.84 | 323.54 | -30.55 | 115.29 | 0.5543 | 775.0 | 634.7 | |
| 17.48 | 68.01 | 10.31 | 40.09 | -8.69 | 323.34 | -30.75 | 111.50 | 0.5453 | 1082.9 | 532.7 | |
| 1.81 | -2.00 | 1.07 | -2.00 | -8.96 | 323.17 | -30.91 | 111.87 | 0.5490 | 637.1 | 999999 | |
| 1.46 | -2.00 | 0.87 | -2.00 | -8.36 | 322.98 | -31.10 | 110.72 | 0.5486 | 757.8 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.87 | -8.49 | 322.73 | -31.36 | 110.79 | 0.5527 | 117.0 | 121.4 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -8.21 | 321.83 | -32.25 | 109.81 | 0.5636 | 677.0 | 586.9 | |
| 0.00 | 1.81 | 0.00 | 1.08 | -7.67 | 321.85 | -32.24 | 108.89 | 0.5609 | 790.0 | 566.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
