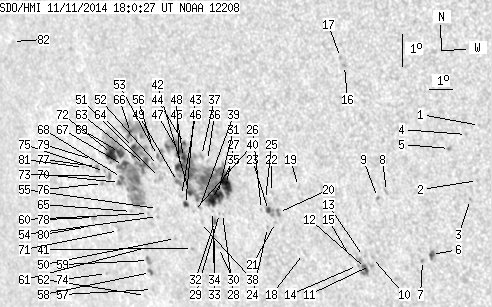

SDO HMI 2014-11-11 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.49 | 475.13 | 66.83 | 359.28 | -11.10 | 306.99 | -47.10 | 107.84 | 0.7565 | -18.0 | -283.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.64 | -9.05 | 319.44 | -34.64 | 109.89 | 0.5993 | 726.0 | 508.2 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -10.73 | 319.16 | -34.93 | 112.38 | 0.6106 | 166.0 | 247.8 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -11.32 | 318.82 | -35.27 | 113.10 | 0.6178 | 591.0 | 490.7 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -9.34 | 318.93 | -35.16 | 110.09 | 0.6072 | 578.0 | 446.2 | |
| 0.00 | 1.55 | 0.00 | 0.97 | -9.78 | 318.24 | -35.84 | 110.44 | 0.6181 | 747.0 | 704.1 | |
| 1.81 | 3.62 | 1.17 | 2.34 | -13.07 | 317.07 | -37.02 | 114.72 | 0.6480 | 864.2 | 647.1 | |
| 0.00 | 1.29 | 0.00 | 0.84 | -13.27 | 316.69 | -37.40 | 114.80 | 0.6535 | 686.0 | 530.3 | |
| 0.00 | 1.89 | 0.00 | 1.24 | -11.19 | 315.65 | -38.43 | 111.27 | 0.6567 | 483.0 | 538.4 | |
| 0.00 | 1.21 | 0.00 | 0.79 | -11.38 | 315.27 | -38.81 | 111.37 | 0.6622 | 673.0 | 628.5 | |
| 0.00 | 1.21 | 0.00 | 0.81 | -13.25 | 314.74 | -39.34 | 113.75 | 0.6766 | 613.0 | 405.9 | |
| 0.00 | 2.41 | 0.00 | 1.62 | -13.50 | 314.61 | -39.47 | 114.04 | 0.6792 | 715.0 | 654.6 | |
| 2.15 | 9.64 | 1.45 | 6.52 | -13.60 | 314.39 | -39.69 | 114.07 | 0.6822 | 884.4 | 659.9 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -13.23 | 314.39 | -39.70 | 113.55 | 0.6806 | 735.0 | 584.5 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -13.52 | 314.09 | -40.00 | 113.81 | 0.6854 | 431.0 | 406.0 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -13.22 | 313.83 | -40.25 | 113.27 | 0.6871 | 386.0 | 297.9 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -7.40 | 314.53 | -39.55 | 105.24 | 0.6568 | 692.0 | 600.1 | |
| 0.00 | 1.38 | 0.00 | 0.90 | -7.16 | 314.40 | -39.68 | 104.84 | 0.6577 | 587.0 | 486.0 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -13.23 | 311.96 | -42.13 | 112.43 | 0.7087 | 518.0 | 421.6 | |
| 0.00 | 0.43 | 0.00 | 0.30 | -11.16 | 312.16 | -41.92 | 109.70 | 0.6986 | 589.0 | 578.8 | |
| 0.00 | 2.93 | 0.00 | 2.06 | -12.00 | 311.18 | -42.90 | 110.44 | 0.7130 | 814.0 | 731.3 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -12.31 | 310.99 | -43.09 | 110.79 | 0.7163 | 557.0 | 484.5 | |
| 0.00 | 1.38 | 0.00 | 0.97 | -11.39 | 311.01 | -43.08 | 109.56 | 0.7129 | 651.0 | 551.1 | |
| 2.15 | 5.77 | 1.53 | 4.08 | -11.95 | 310.77 | -43.31 | 110.22 | 0.7175 | 703.3 | 614.8 | |
| 0.00 | 1.03 | 0.00 | 0.74 | -12.48 | 310.62 | -43.46 | 110.86 | 0.7211 | 576.0 | 479.3 | |
| 0.00 | 1.12 | 0.00 | 0.79 | -11.61 | 310.71 | -43.37 | 109.75 | 0.7170 | 555.0 | 448.0 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -11.93 | 310.48 | -43.60 | 110.08 | 0.7208 | 325.0 | 339.8 | |
| 10.85 | 174.50 | 7.88 | 129.11 | -11.22 | 309.14 | -44.94 | 108.64 | 0.7336 | 912.9 | -239.0 | |
| 0.00 | 0.95 | 0.00 | 0.70 | -12.12 | 308.78 | -45.31 | 109.69 | 0.7405 | 513.0 | 447.8 | |
| 0.00 | 0.69 | 0.00 | 0.51 | -12.13 | 308.65 | -45.44 | 109.65 | 0.7420 | 476.0 | 446.8 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -13.19 | 308.36 | -45.73 | 110.91 | 0.7486 | 464.0 | 379.0 | |
| 9.81 | -27.00 | 7.19 | -27.00 | -11.54 | 308.69 | -45.40 | 108.90 | 0.7397 | 755.9 | 999999 | |
| 0.77 | 2.32 | 0.57 | 1.72 | -12.38 | 308.37 | -45.71 | 109.88 | 0.7459 | 451.7 | 366.7 | |
| 0.00 | 1.64 | 0.00 | 1.22 | -12.85 | 308.26 | -45.82 | 110.44 | 0.7486 | 519.0 | 375.7 | |
| 0.00 | 0.69 | 0.00 | 0.51 | -12.08 | 308.35 | -45.73 | 109.48 | 0.7451 | 469.0 | 344.8 | |
| 8.26 | -27.00 | 6.10 | -27.00 | -11.71 | 308.39 | -45.69 | 109.01 | 0.7435 | 609.5 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.76 | -10.51 | 308.46 | -45.62 | 107.48 | 0.7391 | 572.0 | 493.1 | |
| 0.00 | 1.55 | 0.00 | 1.14 | -10.37 | 308.23 | -45.86 | 107.21 | 0.7413 | 453.0 | 380.2 | |
| 0.00 | 0.43 | 0.00 | 0.32 | -12.44 | 307.74 | -46.34 | 109.73 | 0.7529 | 30.0 | 101.2 | |
| 0.00 | 1.38 | 0.00 | 1.03 | -11.98 | 307.80 | -46.28 | 109.16 | 0.7508 | 392.0 | 364.2 | |
| 0.00 | 0.95 | 0.00 | 0.71 | -12.11 | 307.51 | -46.58 | 109.23 | 0.7544 | 292.0 | 215.5 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -13.27 | 307.18 | -46.90 | 110.58 | 0.7615 | -571.0 | -564.8 | |
| 2.24 | -27.00 | 1.68 | -27.00 | -11.53 | 307.46 | -46.62 | 108.47 | 0.7532 | -20.3 | 999999 | |
| 2.15 | 3.44 | 1.62 | 2.60 | -11.91 | 307.20 | -46.89 | 108.87 | 0.7571 | 381.6 | 218.3 | |
| 0.95 | -27.00 | 0.70 | -27.00 | -10.03 | 307.55 | -46.54 | 106.55 | 0.7480 | 187.4 | 999999 | |
| 2.67 | -27.00 | 1.99 | -27.00 | -10.46 | 307.42 | -46.66 | 107.07 | 0.7506 | -995.5 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.17 | -11.64 | 307.08 | -47.00 | 108.48 | 0.7576 | 107.0 | 133.8 | |
| 3.27 | -27.00 | 2.45 | -27.00 | -10.32 | 307.27 | -46.81 | 106.84 | 0.7518 | -892.7 | 999999 | |
| 4.13 | -27.00 | 3.10 | -27.00 | -10.75 | 307.18 | -46.90 | 107.37 | 0.7539 | -852.8 | 999999 | |
| 0.00 | 6.80 | 0.00 | 5.14 | -11.22 | 307.00 | -47.09 | 107.91 | 0.7573 | -401.0 | -182.1 | |
| 0.00 | 1.21 | 0.00 | 0.93 | -12.99 | 306.49 | -47.60 | 109.99 | 0.7680 | -173.0 | -161.7 | |
| 0.00 | 5.17 | 0.00 | 3.96 | -11.13 | 306.21 | -47.88 | 107.54 | 0.7656 | -259.0 | -232.0 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -10.76 | 306.24 | -47.84 | 107.09 | 0.7642 | -623.0 | -577.5 | |
| 0.52 | 7.06 | 0.39 | 5.37 | -10.45 | 306.26 | -47.82 | 106.70 | 0.7632 | -732.0 | -661.1 | |
| 0.00 | 1.12 | 0.00 | 0.87 | -12.34 | 305.83 | -48.25 | 108.95 | 0.7729 | 300.0 | 183.4 | |
| 0.00 | 0.95 | 0.00 | 0.73 | -12.09 | 305.89 | -48.19 | 108.66 | 0.7716 | 324.0 | 186.8 | |
| 0.00 | 1.12 | 0.00 | 0.86 | -10.22 | 306.08 | -48.00 | 106.35 | 0.7645 | -578.0 | -559.3 | |
| 0.00 | 1.03 | 0.00 | 0.83 | -14.63 | 304.96 | -49.12 | 111.50 | 0.7886 | -354.0 | -297.7 | |
| 1.12 | 2.67 | 0.89 | 2.13 | -14.10 | 305.03 | -49.05 | 110.87 | 0.7863 | -756.8 | -650.0 | |
| 0.00 | 3.44 | 0.00 | 2.74 | -13.73 | 305.04 | -49.04 | 110.42 | 0.7851 | -848.0 | -722.0 | |
| 0.00 | 1.21 | 0.00 | 0.94 | -12.26 | 305.44 | -48.65 | 108.73 | 0.7769 | -611.0 | -499.5 | |
| 0.00 | 3.01 | 0.00 | 2.39 | -13.33 | 305.06 | -49.02 | 109.93 | 0.7837 | -654.0 | -614.1 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -14.83 | 304.57 | -49.51 | 111.61 | 0.7931 | -382.0 | -441.3 | |
| 5.68 | 148.84 | 4.40 | 117.10 | -10.75 | 305.61 | -48.48 | 106.89 | 0.7710 | -813.9 | -557.9 | |
| 2.15 | -63.00 | 1.68 | -63.00 | -10.25 | 305.21 | -48.88 | 106.14 | 0.7740 | -851.1 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.82 | -12.23 | 304.65 | -49.43 | 108.45 | 0.7849 | -490.0 | -429.0 | |
| 2.84 | 32.11 | 2.21 | 24.88 | -9.80 | 305.16 | -48.92 | 105.55 | 0.7733 | -695.5 | -462.1 | |
| 6.11 | -63.00 | 4.83 | -63.00 | -10.83 | 304.62 | -49.47 | 106.69 | 0.7816 | -853.3 | 999999 | |
| 1.21 | -63.00 | 0.96 | -63.00 | -11.20 | 304.44 | -49.65 | 107.11 | 0.7844 | -765.4 | 999999 | |
| 4.82 | -63.00 | 3.81 | -63.00 | -10.44 | 304.52 | -49.57 | 106.17 | 0.7817 | -858.2 | 999999 | |
| 1.21 | -63.00 | 0.96 | -63.00 | -11.36 | 304.31 | -49.78 | 107.26 | 0.7862 | -590.0 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.56 | -12.85 | 303.87 | -50.21 | 108.97 | 0.7945 | -607.0 | -562.8 | |
| 11.28 | -63.00 | 8.99 | -63.00 | -10.48 | 304.13 | -49.95 | 106.12 | 0.7858 | -730.3 | 999999 | |
| 0.00 | 3.27 | 0.00 | 2.63 | -11.20 | 303.87 | -50.21 | 106.94 | 0.7903 | -631.0 | -444.2 | |
| 0.00 | 0.77 | 0.00 | 0.65 | -14.23 | 302.88 | -51.21 | 110.33 | 0.8079 | -487.0 | -379.6 | |
| 0.00 | 0.95 | 0.00 | 0.76 | -11.05 | 303.67 | -50.42 | 106.70 | 0.7920 | -569.0 | -471.7 | |
| 0.00 | 1.38 | 0.00 | 1.12 | -11.43 | 303.48 | -50.60 | 107.11 | 0.7948 | -473.0 | -431.3 | |
| 0.34 | 3.01 | 0.28 | 2.45 | -10.92 | 303.32 | -50.77 | 106.44 | 0.7952 | -601.8 | -530.2 | |
| 0.00 | 2.93 | 0.00 | 2.43 | -12.50 | 302.76 | -51.33 | 108.22 | 0.8046 | -626.0 | -500.9 | |
| 0.00 | 0.95 | 0.00 | 0.77 | -10.71 | 303.18 | -50.91 | 106.14 | 0.7962 | -339.0 | -291.9 | |
| 0.00 | 0.77 | 0.00 | 0.65 | -12.79 | 302.43 | -51.65 | 108.47 | 0.8086 | -354.0 | -390.6 | |
| 0.00 | 1.03 | 0.00 | 0.85 | -10.98 | 302.67 | -51.41 | 106.33 | 0.8019 | -383.0 | -330.1 | |
| 0.00 | 1.21 | 0.00 | 1.04 | -7.28 | 299.92 | -54.17 | 101.22 | 0.8220 | 216.0 | 138.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
