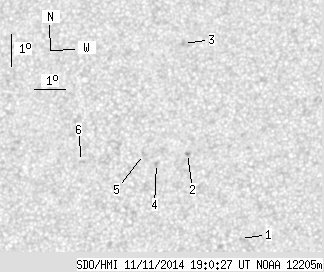

SDO HMI 2014-11-11 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.67 | 0.00 | 5.65 | 19.20 | 340.52 | -13.01 | 37.61 | 0.3506 | 554.0 | 544.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.49 | 16.40 | 343.35 | -10.18 | 36.61 | 0.2857 | -719.0 | -585.1 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 18.99 | 341.51 | -12.03 | 35.88 | 0.3376 | 951.0 | 818.8 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 22.41 | 341.10 | -12.43 | 31.15 | 0.3865 | 816.0 | 676.4 | |
| 0.00 | 1.98 | 0.00 | 1.04 | 18.67 | 340.53 | -13.00 | 38.57 | 0.3433 | 874.0 | 682.2 | |
| 0.00 | 2.58 | 0.00 | 1.37 | 18.94 | 340.09 | -13.44 | 38.96 | 0.3511 | 660.0 | 517.5 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 18.70 | 338.11 | -15.42 | 43.20 | 0.3696 | 742.0 | 625.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
